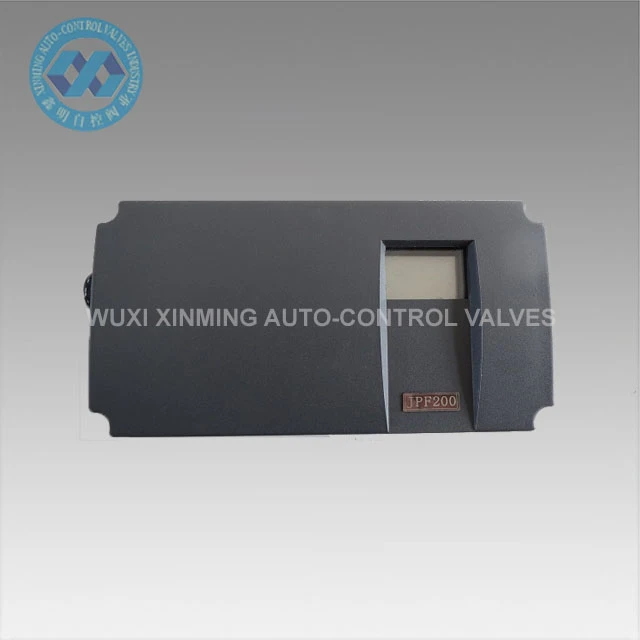

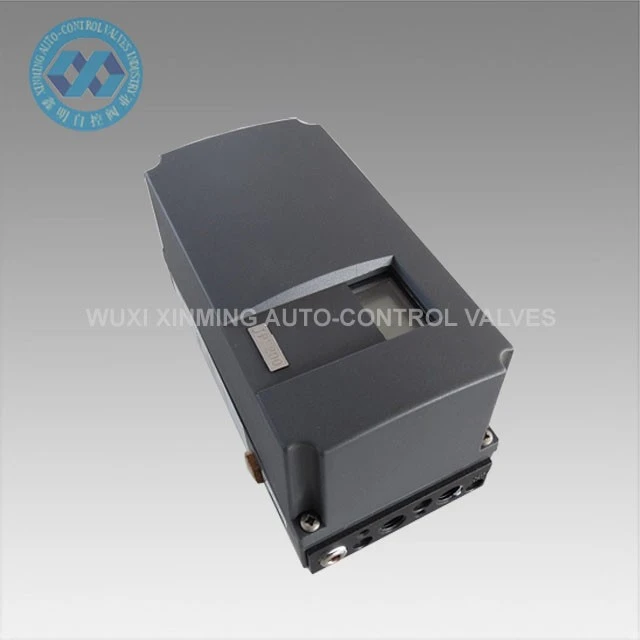

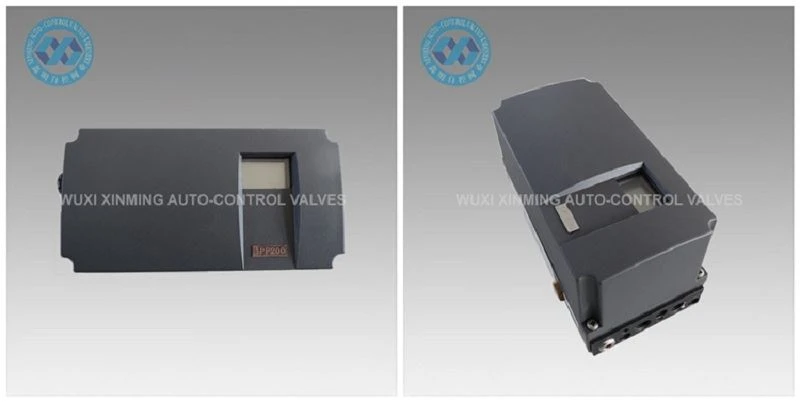

Smart Valve Positioner
Smart Valve Positioner uses sensor technology for temperature and position compensation, and has the outstanding characteristics of anti-vibration capacity up to 10g, 10-150Hz. Temperature range -40~+85°C. Through HART or Profibus/FF communication interface, real-time connection between the scene and the control room can be established. Parameter adjustment and status monitoring can be carried out. The output characteristics of free configuration can improve the output characteristics of the ball valve/butterfly valve to the greatest extent.
Product Definition
Smart Valve Positioner uses sensor technology for temperature and position compensation, and has the outstanding characteristics of anti-vibration capacity up to 10g, 10-150Hz. Temperature range -40~+85°C. Through HART or Profibus/FF communication interface, real-time connection between the scene and the control room can be established. Parameter adjustment and status monitoring can be carried out. The output characteristics of free configuration can improve the output characteristics of the ball valve/butterfly valve to the greatest extent.
Core Features
Fail-freeze and fail-safe functions.
Explosionproof / flameproof housing.
Auto calibration. Simple menu structure with options to auto calibrate all parameters or zero and end points only.
LCD display. Alphanumeric digital display for process values and calibration.
Low air consumption level.
PD control.
Allows commands, position feedback and diagnostics to be sent digitally over the current loop.
Front panel pushbuttons for configuration.
