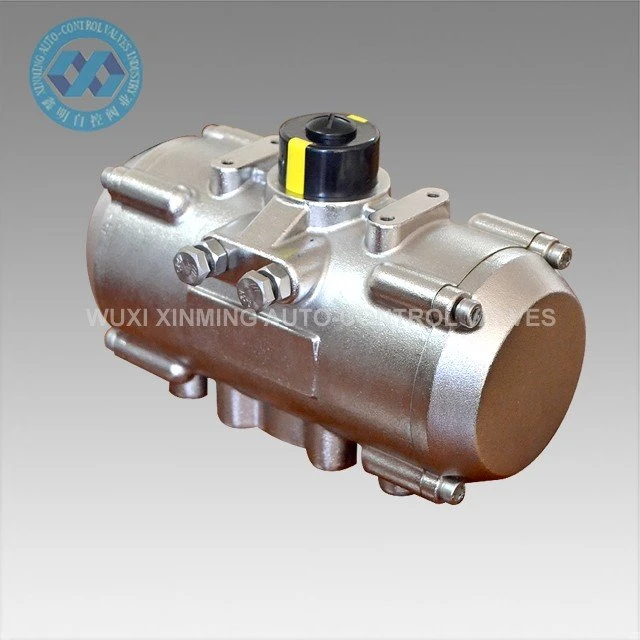

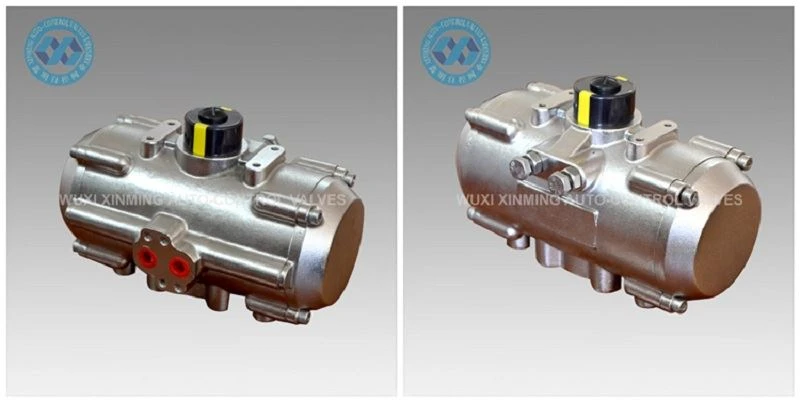

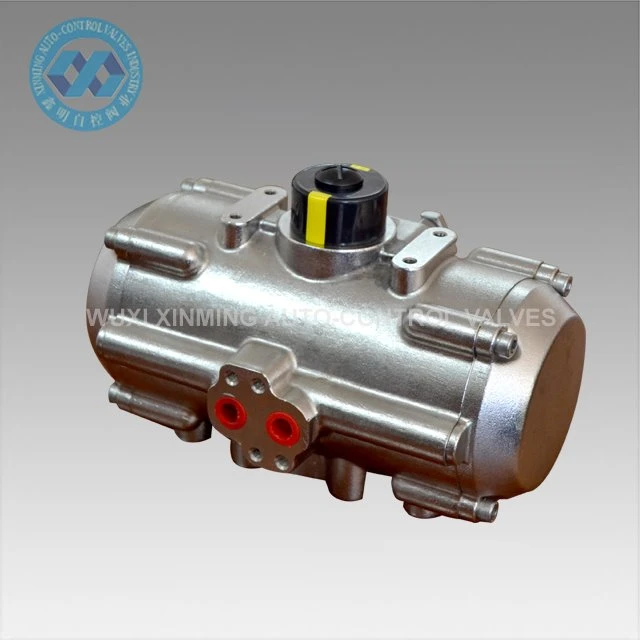

Stainless Steel Pneumatic Actuator

Stainless steel pneumatic actuator is a full corrosion-resistant quarter-turn pneumatic drive device, fully constructed of stainless steel housing, piston and internal key components. It converts compressed air into 90° rotary motion to automate sanitary ball valves, butterfly valves and plug valves.

Available in double acting and spring return single acting types, it meets strict hygienic, saltwater and strong corrosive working requirements, widely used in food, beverage, pharmaceutical, marine and chemical anti-corrosion pipeline systems. All units follow ISO 5211 & NAMUR international standards.

① The complete unit features an integrally cast housing made of 304/316L stainless steel with electrolytic polishing finish. Its resistance to acid, alkali, salt spray and water vapor corrosion far outperforms conventional aluminum alloy actuators. All fasteners, gear shafts, pistons and core moving components are fitted with anti-corrosion stainless steel accessories, enabling stable operation in humid, marine and highly corrosive media environments. It eliminates common defects of aluminum alloys including oxidation, pitting corrosion and coating peeling. The hygienic mirror surface leaves no dead corners for dirt accumulation, complying with sterile flushing requirements in food and pharmaceutical industries. It stays rust-free and stain-proof during long-term outdoor service.

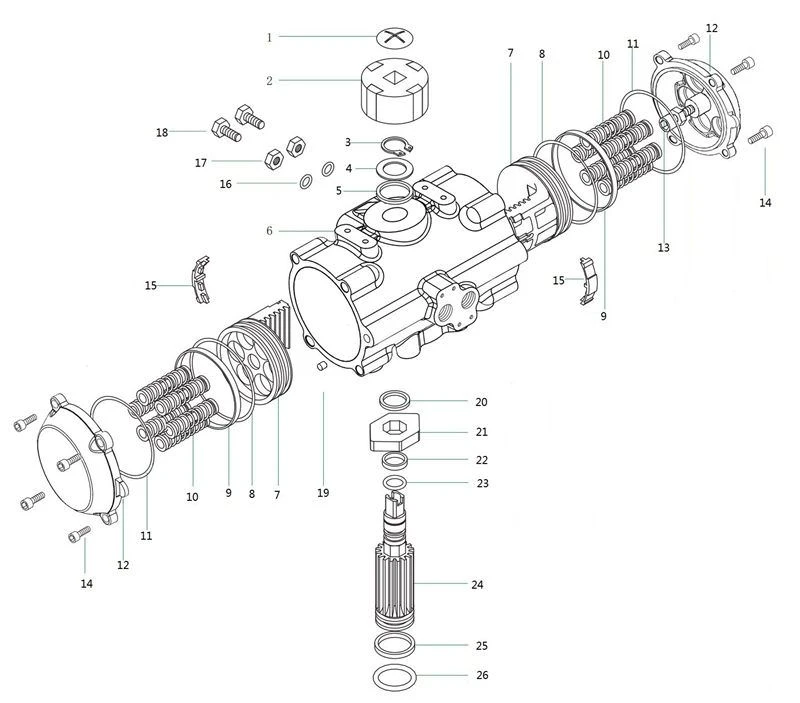

② Adopting a symmetrical dual-piston rack-and-pinion precision transmission structure, the unit delivers minimal transmission clearance, balanced output torque and fast open/close response. Composite wear-resistant guide bearings are installed on the back of racks to isolate rigid metal friction throughout operation, ensuring quiet and jitter-free movement. External independent bidirectional stroke adjustment bolts allow precise ±5° fine-tuning of open and closed positions. Modular spring preloading assemblies are universally interchangeable between double-acting and spring return single-acting models for easy disassembly, assembly and maintenance. Internal seals are made of high and low temperature resistant fluororubber or nitrile rubber, offering reliable airtight sealing and stable performance under extreme temperature conditions.

③ The stainless steel substrate boasts high structural strength, superior impact resistance and anti-deformation performance, with drastically improved wear resistance compared to aluminum alloy cylinders. The low-friction guide structure significantly reduces abrasion of moving parts, delivering far more open-close reciprocating cycles than ordinary industrial aluminum alloy actuators. Anti-corrosion stainless steel material prevents gear jamming and housing cracking caused by rust, greatly cutting on-site maintenance and replacement frequency. It maintains stable continuous long-cycle operation with lower overall ownership cost.

④ This product fully complies with international universal standards ISO5211, DIN3337 and NAMUR. Its base flange, output shaft, air supply ports and top accessory mounting dimensions are fully consistent with standard aluminum alloy rack-and-pinion actuators. No modifications to valve brackets, solenoid valves, limit switches, positioners or other matching parts are required. It can directly replace original aluminum alloy actuators with seamless compatibility between new and existing equipment. Zero additional machining cost is incurred during retrofitting, achieving maximum versatility and interchangeability.
