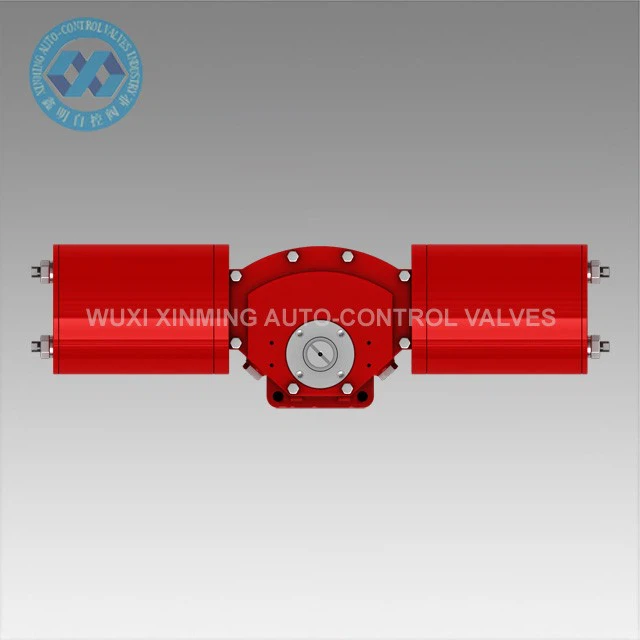

Double Acting Scotch Yoke Pneumatic Actuator
XM Scotch Yoke Pneumatic Actuators are fit for turn-off or metering control of 90° valves (such as ball valves,butterfly valves and plug valves).It can realize automatic control of industrial process with various accessories.
Product Definition
XM Scotch Yoke Pneumatic Actuators are fit for turn-off or metering control of 90° valves (such as ball valves,butterfly valves and plug valves).It can realize automatic control of industrial process with various accessories.The principle is that compressed air enters the chamber to push the piston to do linear motion,and by transmission structures of the yoke pin and yoke groove,the piston's linear motion will be converted into the yoke's rotary motion,and drives the output shaft to rotate, thus achieving the control of the valve.
Compared with traditional rack and pinion actuators, it features higher structural strength, larger output torque and stronger operational stability, adapting to long-term continuous operation requirements in harsh industrial environments.
Core Features
Dual air chamber design, precisely controlling valve opening and closing.
Elimination of spring structure, reducing core component wear and prolonging the overall lifespan of the equipment.
Equipped with bidirectional precise stroke adjustment bolts, precisely adapting to the sealing stroke and adjustment accuracy requirements of various valves.
Strictly following ISO5211 and NAMUR standards, with strong versatility.

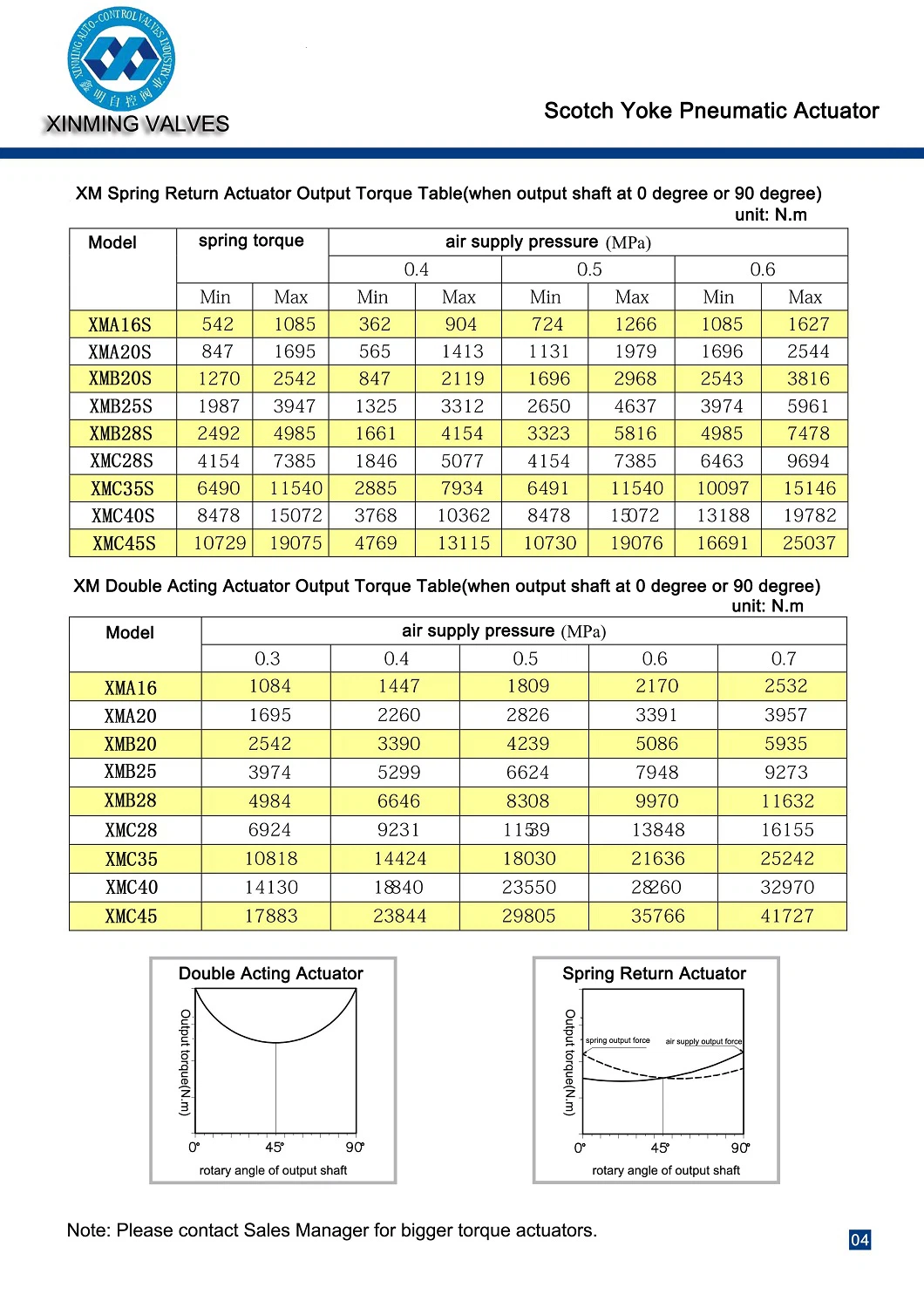

Technical Parameters
|
Model |
XM-B SERIES,XM-C SERIES |
|
Material |
Ductile iron or carbon steel |
|
Function |
Double acting |
|
Output Torque |
More than 250000Nm |
|
Working Pressure |
0.3-0.6Mpa |
|
Color |
Red/Customized |
|
Interface size |
Compliant with NAMUR and ISO5211 standards |
|
Operating temperature |
Standard: -20°C to +80°C High temperature: -15°C to +150°C Low temperature: -40°C to +80°C |
Technical Advantages
1. Excellent Stability Under High-Frequency Working Conditions: The spring-free structure eliminates spring attenuation and uneven elastic force under high-frequency operation, ensuring extremely high consistency of reciprocating actions, fast start-stop response and good synchronization. It is specially designed for industrial continuous automatic high-frequency adjustment and switch working conditions.
2. Lower Comprehensive Energy Consumption and Cost: The scotch yoke transmission structure has low friction loss and high power conversion efficiency, delivering larger output torque under the same air pressure. No spring replacement and maintenance are required, with few later operation and maintenance consumables and short downtime maintenance, greatly reducing long-term use costs.
3. Outstanding Precision Adjustment Performance: The bidirectional pneumatic drive is free from elastic force hysteresis interference. Equipped with an intelligent positioner, it can realize high-precision linear adjustment with accurate opening control, good repeatability and no return error, fully meeting the adjustment requirements of refined process automatic control systems.
FAQ
Q: What are the core application scenario differences between double-acting and single-acting scotch yoke actuators?
The double-acting model has no automatic reset function after air cut-off, and is suitable for conventional industrial working conditions requiring high-frequency continuous start-stop, precise adjustment and high-torque heavy load with higher cost performance and longer service life. The single-acting model features air cut/pressure loss spring reset fail-safe function, focusing on fault safety interlock, and is suitable for working conditions with higher safety priority such as high-risk leakage and emergency cutoff in gas and chemical industries.
Q: What state will the valve be in after the air supply of the double-acting actuator is cut off?
After air cut-off or pressure loss, the valve will be locked in the original position before air cut-off without automatic opening or closing, belonging to a position-holding structure. If air cut-off safety reset function is required, replace with a single-acting spring reset model or install an external safety reset device.
Q: What are the causes and solutions for slow action and insufficient torque of the equipment?
Common causes: insufficient air supply pressure, impure air with water and impurities, clogged filter, air leakage of seals, improper stroke adjustment, and jamming of transmission parts due to lack of lubrication. Solutions: Adjust the air pressure to the standard working range of 0.4–0.8MPa; clean the air filter and purify the air source; inspect and replace aging seals; lubricate the transmission structure and calibrate stroke parameters.
Q: Can it adapt to large-diameter and high-load valves?
Absolutely adaptable. The variable torque structure of the scotch yoke is inherently suitable for valve heavy-load characteristics. The double-acting bidirectional drive has no elastic force loss and can stably drive large-diameter butterfly valves and ball valves. It is only necessary to match the corresponding specification and standard air pressure according to the valve torque parameters.
Q: Can I print my brand logo on the actuator?
OEM logo customization is supported.
Q: Trade terms?
In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.
