Product Introduction

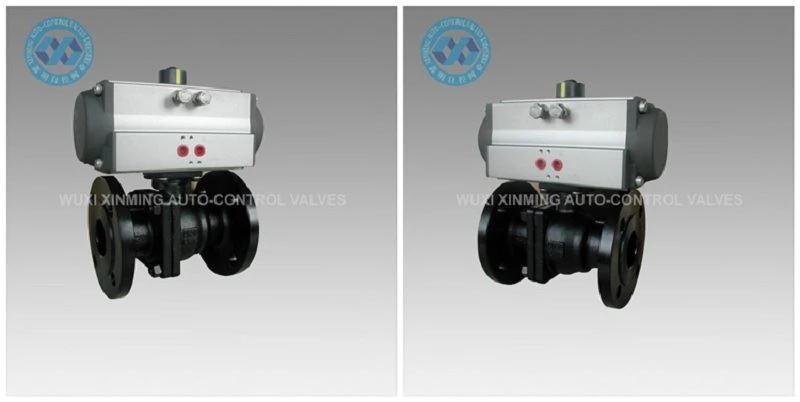

The sturdy construction of WCB ball valves ensures that they can withstand the toughest conditions. They are highly durable and long-lasting.WCB ball valves have a simple design that makes them easy to maintain. They do not require frequent lubrication or replacement of parts. WCB ball valves are designed to provide a tight seal when closed. This helps to prevent leaks and ensures that the valve operates efficiently. WCB ball valve is a high-quality product that our company can provide you. These valves are manufactured in accordance with industry guidelines under the supervision of our experienced team. The ball valves we provide are highly sought after by the market because of their dimensional accuracy, durability, light weight, and low maintenance costs.
Technical Specifications
| Product Name | WCB ball valve |
| Brand name | XM, and OEM is also accepted |
| Body Material | WCB (Wrought Carbon Steel) |
| Ball Material | Stainless Steel / WCB / Alloy Steel |
| Seat Material | PTFE, RPTFE, PEEK, or Metal Seat |
| Connection Type | Flanged, Threaded, Butt Weld |
| Size Range | DN15–DN600 (1/2" – 24") |
| Pressure Rating | PN16–PN63 / ANSI 150–600 |
| Temperature Range | -29°C ~ +425°C (depending on seat material) |
| Operation Type | Manual, Pneumatic, Electric |
Product Applications
The WCB Ball Valve is widely used in:
- Oil & gas pipelines and refineries
- Chemical and petrochemical plants
- Water and wastewater treatment systems
- Power generation and steam systems
- Marine and shipbuilding industries
- Food and pharmaceutical processes
Its robust design ensures reliable operation even in high-pressure, high-temperature, or corrosive environments.
Product Advantages
Strong, durable body for long-term operation
Tight sealing for high-pressure applications
Flexible operation with manual or actuator options
Easy installation and low maintenance
Compliance with international standards ensures reliability and safety
Company Introduction
Since 2007,WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD has established.
We mainly manufacture Pneumatic Actuator, Pneumatic Ball Valve, Pneumatic Butterfly Valve, Pneumatic/Electrical Control Valve, etc.

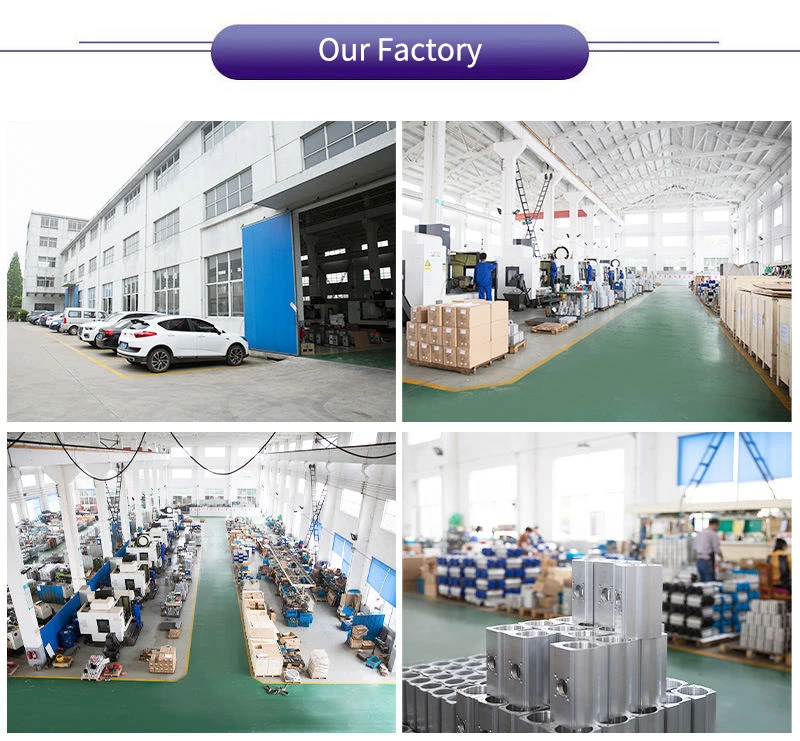

Our company has advanced processing equipment and sophisticated testing equipment. Our processing equipment include lathes, milling machine, boring machine, planer, drilling machine, CNC lathes, CNC machining centers and other equipment. There are totally 30 sets, of which there are 5 sets imported vertical machine center and several sets advanced CNC lathes.
Packaging & Shipping
1) Foam packing inside,one carton box outside
2) Then put all carton box in one strong plywood case for sea transport
FAQ
Q 1: Payment terms capacity?
A 1: T/T, L/C, Western Union.
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.
Q 3: Validity of quotation?
A 3: Within 30 days.
Q 4: Modes of shipment?
A 4: By sea, by air, by express, or by railway.
Q 5: Warranty?
A 5: One year quality warranty for free, and lifelong paid service.
