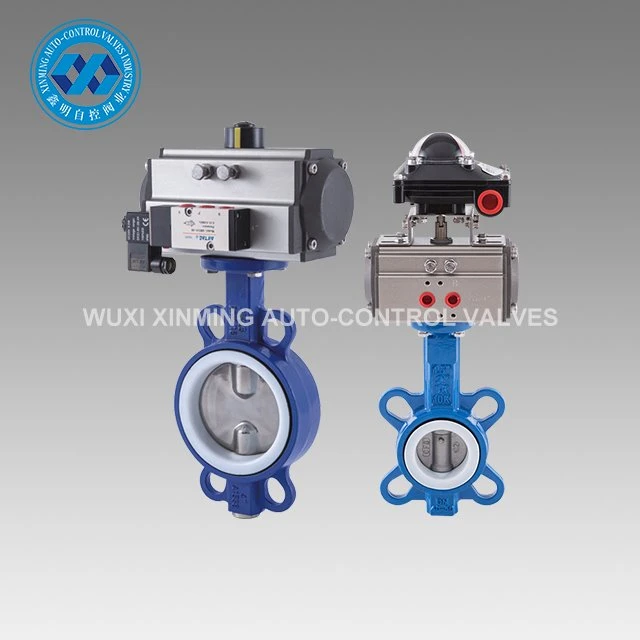

The ductile iron butterfly valve is a simple regulating valve, and it can also be used for on-off control of low-pressure pipeline media. To automatically start and stop flow faster than motor-driven valves, which operate on compressed air. You must control the air to the actuator using either the included electric pilot valve or a manual on/off valve. Valves don't require a minimum pressure drop between the inlet and outlet for operation.
Product Details:
| Product Name | Ductile Iron Butterfly Valve |
| Brand name | XM and OEM are also accepted |
| Butterfly Valve size | 25mm-1000mm |

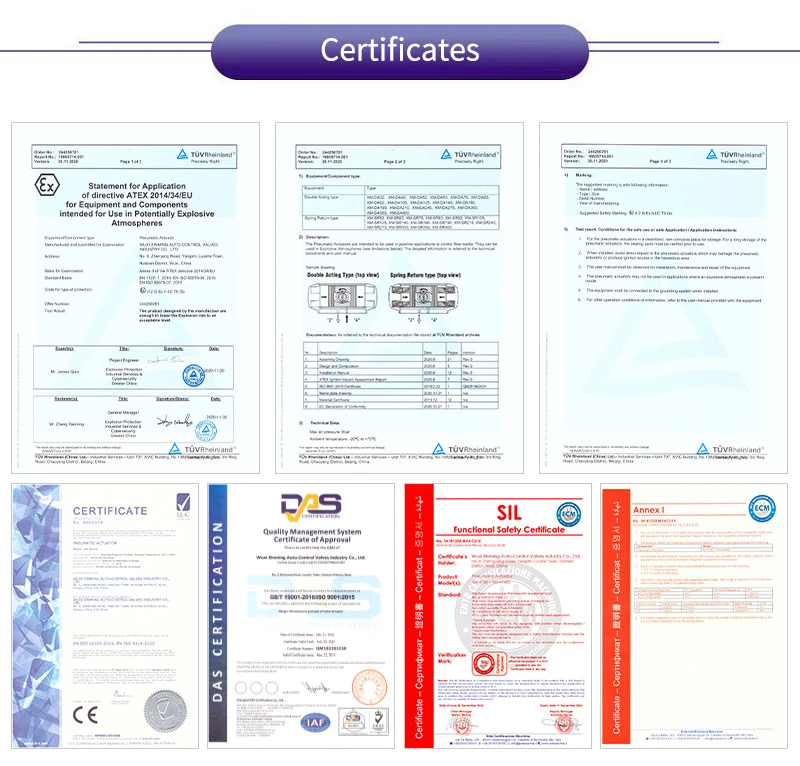

| Certification | CE, ATEX, SIL3, ISO9001:2016 |
| Valve Type | Butterfly |
| For Use With | Water, Oil, Air, Natural Gas, Steam, Drinking Water |
| Seal Material | metal-to-metal |
| Specifications Met | API 609 |
Technical Parameter:

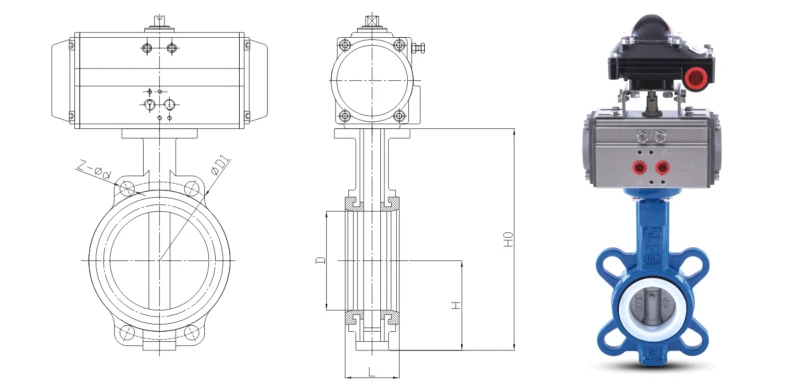

| Nominal diameter | D (mm) | D1 (mm) | H (mm) | H0 (mm) | L (mm) | Z-Ød | |
|---|---|---|---|---|---|---|---|
| mm | inch | ||||||
| 50 | 2" | 52.9 | 120 | 80 | 241 | 42 | 4-23 |
| 65 | 2.5" | 65.5 | 136.2 | 89 | 264 | 44.7 | 4-26.5 |
| 80 | 3" | 78.8 | 160 | 95 | 276 | 45.2 | 8-18 |
| 100 | 4" | 104 | 185 | 114 | 314 | 52.1 | 4-24.5 |
| 125 | 5" | 123.3 | 215 | 127 | 340 | 54.4 | 4-23 |
| 150 | 6" | 155.6 | 238 | 139 | 364 | 55.8 | 4-25 |
| 200 | 8" | 202.5 | 295 | 175 | 435 | 60.6 | 4-25/23 |
| 250 | 10" | 250.5 | 357 | 203 | 495 | 65.6 | 4-29 |
| 300 | 12" | 301.6 | 407 | 242 | 579 | 76.5 | 4-29 |
| 350 | 14" | 333.3 | 467 | 267 | 635 | 76.5 | 4-30 |
| 400 | 16" | 389.6 | 515/525 | 309 | 709 | 86.5 | 4-26/30 |
| 450 | 18" | 440.5 | 565/585 | 328 | 750 | 105.5 | 4-26/30 |
| 500 | 20" | 491.6 | 620/650 | 361 | 841 | 131.8 | 4-26/33 |
| 600 | 24" | 592.5 | 725/770 | 459 | 1021 | 152 | 20-30/36 |
| 700 | 28" | 695 | 840 | 520 | 1144 | 163 | 24-30/20-36 |
| 800 | 32" | 794.7 | 950 | 591 | 1263 | 188 | 24-33/39 |
| 900 | 36" | 864.7 | 1050 | 656 | 1376 | 203 | 24-33 |
| 1000 | 40" | 965 | 1160 | 721 | 1521 | 216 | 24-36 |
| Valve design and manufacturing | According to GB/T12238 standard | ||||||
| Valve flange size | According to GB/T9113, GB/T17241.6 standard | ||||||
| Structural length of the valve | According to GB/T12221 standard | ||||||
| Valve inspection and experiment | According to GB/T13927 standard | ||||||
Product Features:
• High-pressure zero leakage: Four types of vulcanized valve seats: EPDM/Viton®/NBR/PTFE, bidirectional bubble-level sealing, up to 16 bar.
• Lightweight: The weight of the same caliber is only 30–40% of that of a ball valve, reducing pipeline support costs.
• Long life: The valve stem is made of 416/316 SS duplex stainless steel, and the bearing uses a self-lubricating non-metallic bushing to prevent seizure.
• Insulation-friendly: The extended neck design can be covered with a 2" insulation layer, suitable for HVAC and outdoor pipelines.
• Multiple drives: handles, gearboxes, electric, pneumatic, and hydraulic actuators, all connected according to ISO 5211 standard flanges.
• Complete certifications: WRAS, ACS drinking water permits, by API-609, BS EN 593, and ISO 5752.
Our Service:
1) 7x24 hours hotline
2) Strict quality control
3) Good quality at a favorable price
4) Excellent After-service
5) Online technical support
6) Fast delivery time
Product applications:
• Hot and cold water, seawater, sewage, and steam pipe networks
• HVAC air conditioning systems, district heating
• Petroleum, chemical, food, pharmaceutical, and shipbuilding
• Food-grade fluids: beverages, alcohol, purified water
• Gas and vacuum: gas, compressed air, vacuum systems
About Us:

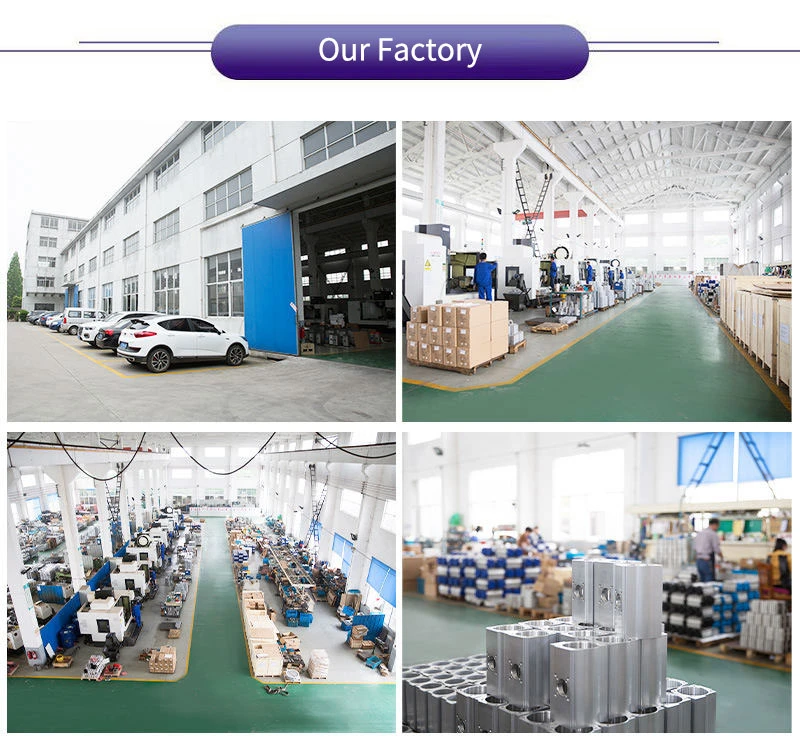

Wuxi Xinming Auto-control Valves Co., Ltd. specializes in manufacturing ISO9001-certified XM series pneumatic actuators and automatic control valves, compliant with ISO5211/DIN3337/VDI/VDE-3845/NAMUR standards. With advanced R&D capabilities and production facilities, our products serve diverse industries including oil & gas, chemical, and power plants, embodying our commitment to "Technology First, Quality Excellence" through innovative solutions and reliable performance. If you need a Ductile Iron Butterfly Valve, please contact us.
