Product Introduction

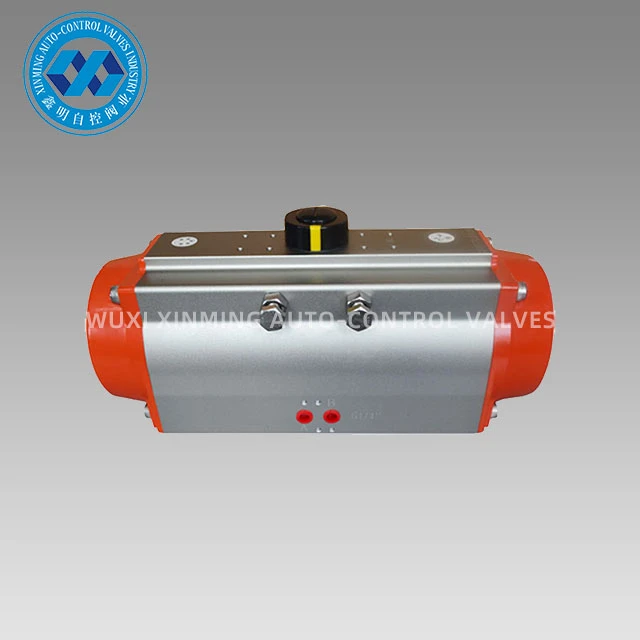

The Hard Anodizing Pneumatic Actuator has a compact double-piston rack-and-pinion structure with precise gearing and stable output torque; the cylinder body is made of extruded aluminum alloy, anodized, with a hard surface and strong wear resistance; it can be installed as required. Valve, echo device, positioner (opening indication), triplet and manual operating mechanism. Matching ball valve, butterfly valve and other angular stroke valves.
Design features
1. The valve body and piston are hard anodized.
2. Unless the indicator screw is plastic, all other screws are SS304.
3. Large and small output torques are optional.
Technical Parameter
XM ALUMINUM PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
Model | Input air pressure(unit:bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Air pressure output torque(N.m) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |
Spare Parts And Material
Dimension Diagram
