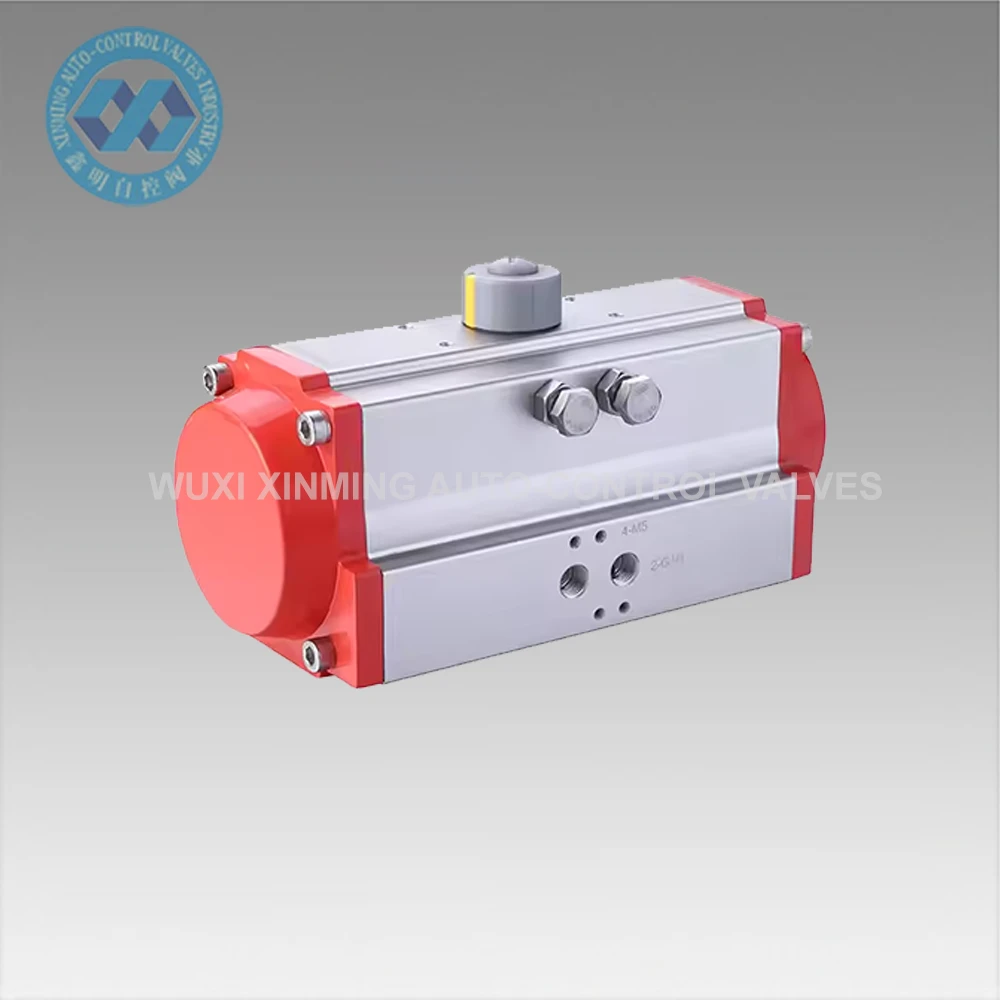

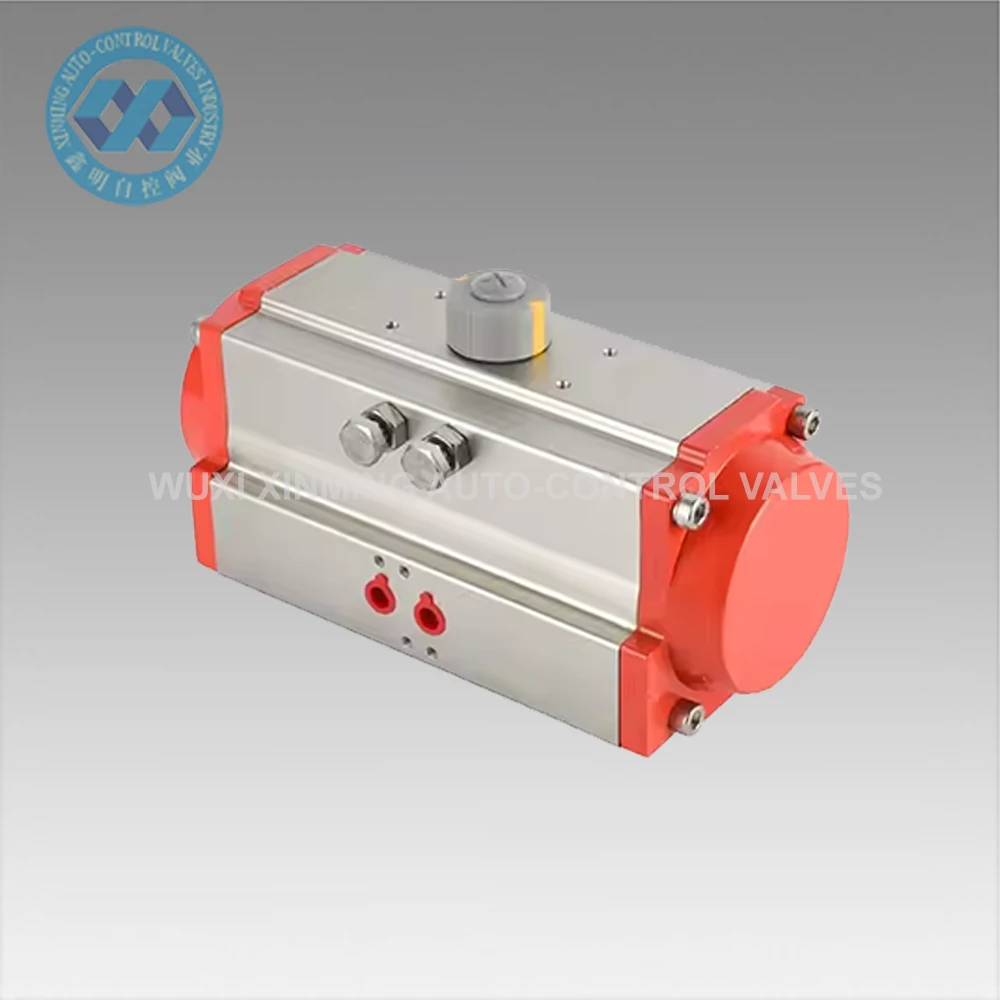

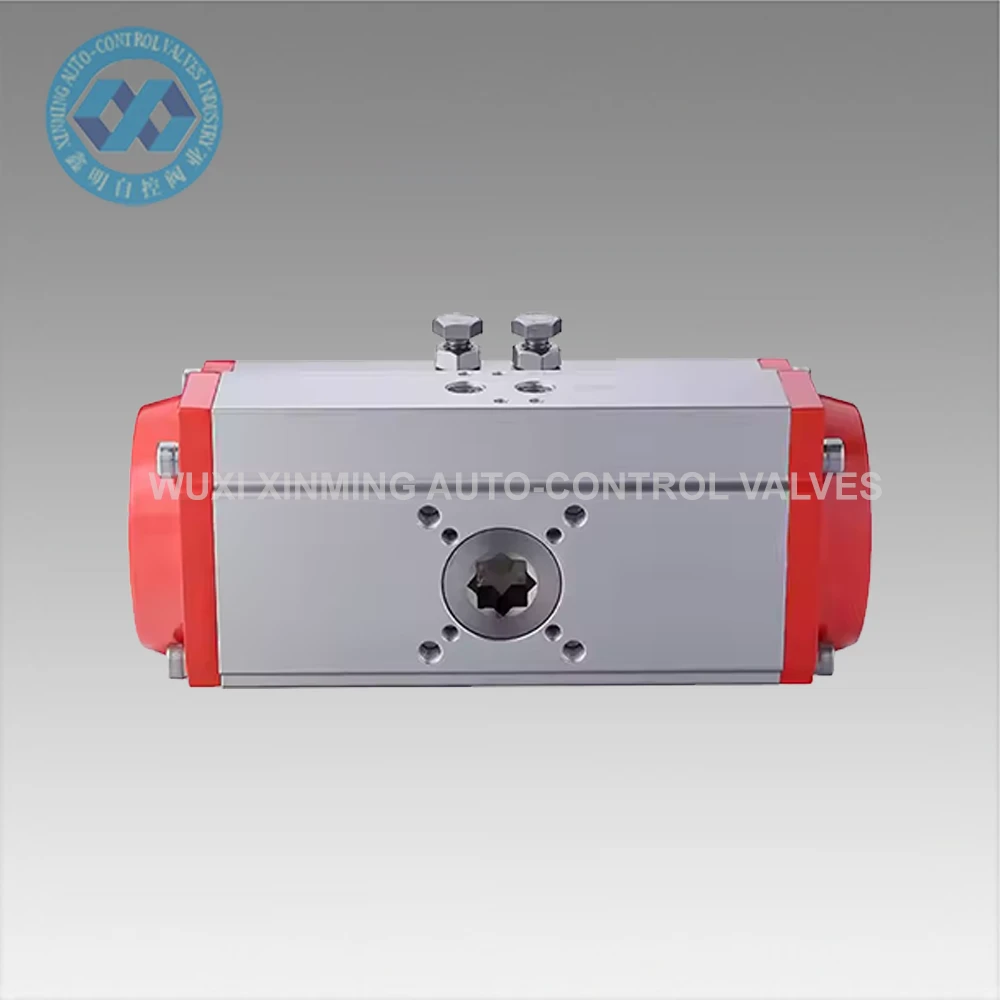

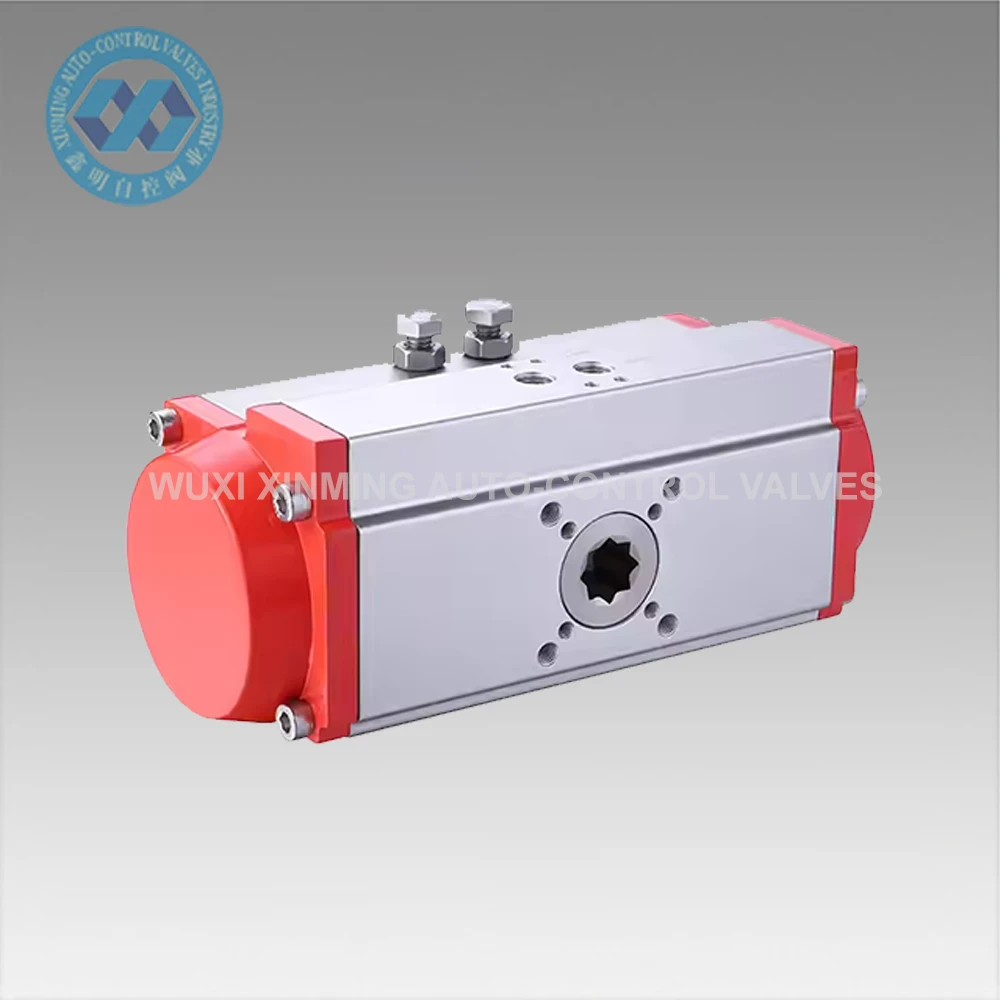

XM series pneumatic actuators are studied, developed and designed on the basis of comprehensive application of new
technologies, new materials, new processes and innovative concepts at home and abroad, having following characteristics.
-Fully in line with international regulations: 1S05211,DIN3337 and VDI/VDE-3845, NAMUR standards.
-To extruded high-strength aluminum cylinder, the inner surface is finely ground and hard anodized, with long service life, low frictioncoefficient and quick action.
-The beautiful compact modern shape and multiple specification make the selection more economical.
-All active surfaces adopt high quality bearings with low friction, long life and no noise.
-Two independent stroke adjustment mechanisms are installed to adjust extra +5° at full open or fulclosed position easily

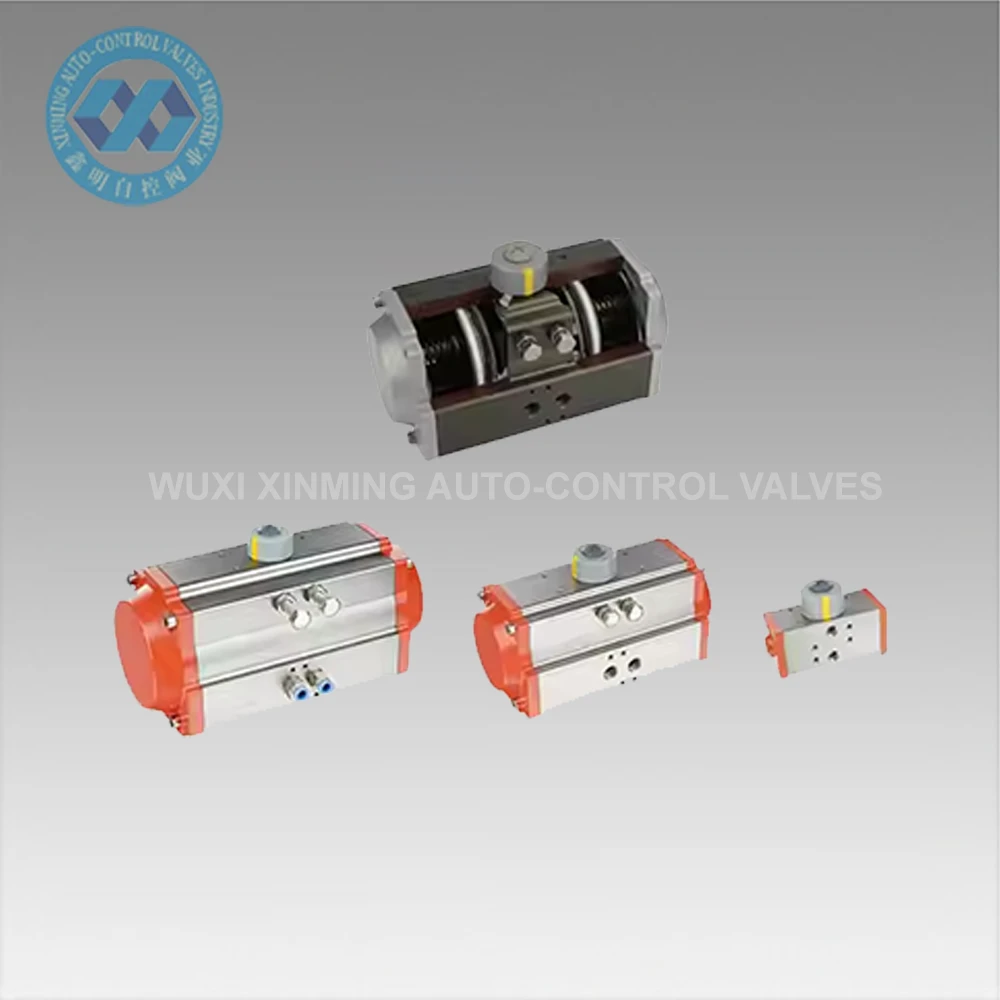

-Actuators with the same extenal structure are available in double-acting and single-acting (spring-return) versions. single-actingversion have normal-closed and normal-open type
-The NAMUR standard multi-function indicator indicates the position visually, where can install and output all accessories
-The pre-compression load spring is safe and convenient to install and disassemble.
-The piston and end cap are made of die-cast aluminum alloy with high strength and light weight.
-Change the seal 0 rings material can apply for high-temperature or low-temperature worksite.
-Solenoid valves can be installed directly without a connecting plate.
Intergrading with unique style, advanced technology, precise manufacturing,economical practical aspect, saving space, modular design, XM seriesPneumatic Actuators can install other accessories directly to increase efficiencyand economy.
-General data: The maximum rated air pressure is 8 bar and the minimumair pressure is 2.5 bar.
-Operating temperature: Standard: -20°C (-4° F) to +80°C (+ 176 ° F)High temperature:-15°C(+5°F)to +150°C(+302°F)Low temperature:-40°C(-40°F) to +80°℃(+176°F)
-Applicable gas source: clean non-corrosive gas that has been dry filteredor lubricated.
