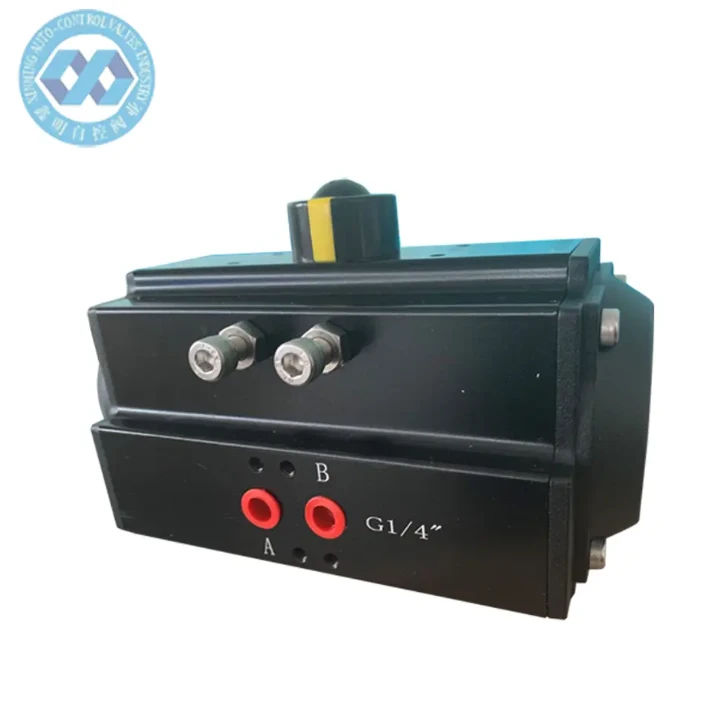

Double Acting Pneumatic Actuator is used to control butterfly valves, ball valves, and machinery with rotary movement automatically. Precision die-casting aluminum alloy double-rack pistons with hard oxidation treatment improve rotary angle accuracy and duty life. The actuator body with hard-oxidation can avoid the scratch effectively.
Product Name: Double Acting Pneumatic Actuator
Brand name: XM, and OEM is also accepted
Actuator size: 32mm-400mm
Rotary angle: 0°~90°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Air supply pressure: 0.2~0.8MPa, 10Mpa max
Top connection: VDI/VDE3845 NAMUR
Bottom connection: ISO 5211 and DIN3337
Material: Aluminum alloy
Structure: rack and pinion, dual rack pistons
Actuator body surface treatment: hard anodized
End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.
Certification: CE, ATEX, SIL3, ISO9001:2015
