Product Introduction

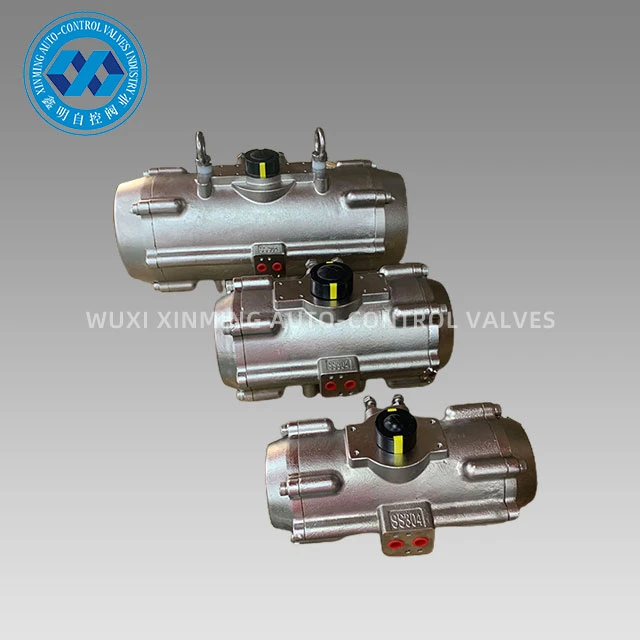

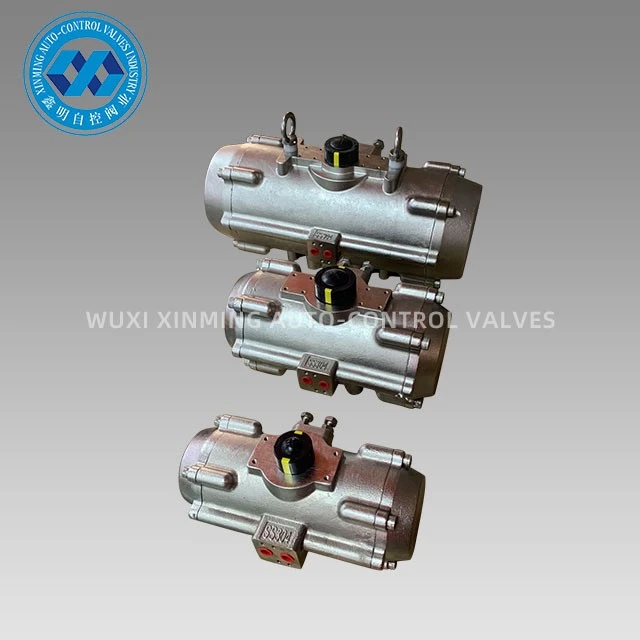

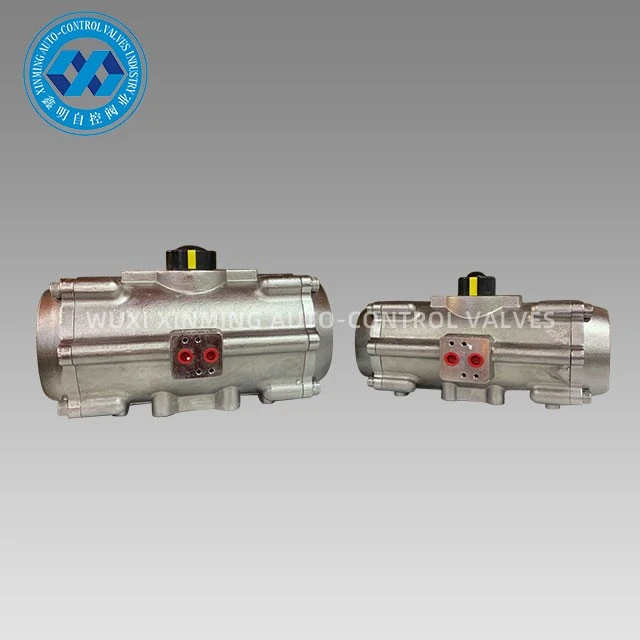

The High Quality Stainless Steel Pneumatic Rack and Pinion Actuator 90 Degree from WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD. is a precision-engineered actuator designed for reliable and efficient valve automation. Built with a full stainless steel body, this actuator offers outstanding corrosion resistance, durability, and performance in harsh environments such as chemical, food, pharmaceutical, and marine industries.
This stainless steel pneumatic rack and pinion actuator converts compressed air energy into 90° rotary motion, perfectly suitable for driving ball valves, butterfly valves, and plug valves. Its compact structure, high torque output, and smooth operation make it a preferred choice for automation systems requiring reliability and safety.
Technical Parameter
XM STAINLESS STEEL PNEUMATIC ACTUATOR OUTPUT TORQUE TABLE
|
Model |
Input air pressure(unit:bar) |
|||||
|
3 |
4 |
5 |
6 |
7 |
8 |
|
|
Air pressure output torque(N.m) |
||||||
|
XM-DA45-SS |
7.2 |
9.6 |
12.0 |
14.4 |
16.8 |
19.2 |
|
XM-DA52-SS |
12.0 |
16.0 |
20.0 |
24.0 |
28.0 |
32.0 |
|
XM-DA63-SS |
21.7 |
28.9 |
36.0 |
43.4 |
50.6 |
57.8 |
|
XM-DA75-SS |
30.0 |
40.0 |
50.0 |
60.0 |
70.0 |
80.0 |
|
XM-DA83-SS |
46.8 |
62.4 |
78.0 |
93.6 |
109.2 |
124.8 |
|
XM-DA92-SS |
67.6 |
90.1 |
112.6 |
135.2 |
157.7 |
180.2 |
|
XM-DA105-SS |
97.7 |
130.3 |
162.9 |
195.5 |
228.0 |
260.6 |
|
XM-DA125-SS |
150.5 |
200.6 |
250.8 |
301.0 |
351.1 |
401.3 |
|
XM-DA140-SS |
260.7 |
347.6 |
433.8 |
521.4 |
608.3 |
695.2 |
|
XM-DA160-SS |
397.2 |
529.6 |
662.0 |
794.4 |
926.8 |
1059.2 |
|
XM-DA190-SS |
640.2 |
853.6 |
1067.0 |
1280.4 |
1493.8 |
1707.2 |
|
XM-DA210-SS |
798.0 |
1064.0 |
1330.0 |
1596.0 |
1862.0 |
2128.0 |
|
XM-DA240-SS |
1154.3 |
1539.0 |
1923.8 |
2308.5 |
2693.3 |
3078.0 |
|
XM-DA270-SS |
1755.0 |
2340.0 |
2924.0 |
3510.0 |
4095.0 |
4680.0 |
|
XM-DA300-SS |
2291.4 |
3055.2 |
3819.0 |
4582.8 |
5346.6 |
6110.4 |
|
XM-DA350-SS |
3426.0 |
4568.0 |
5710.0 |
6852.0 |
7994.0 |
9136.0 |
|
XM-DA400-SS |
4872.0 |
6496.0 |
8120.0 |
9744.0 |
11368.0 |
12992.0 |
Product Advantage
All important spare parts would be treated with high quality process accuracy to ensure the good performance and duty life to a great degree.Stainless steel is known for its excellent corrosion resistance, making it ideal for harsh environments or applications involving exposure to moisture, chemicals, or extreme temperatures. This durability ensures the actuator will have a longer lifespan, reducing the need for frequent replacements or repairs.
All process are one-time-forming by CNC to ensure the process accuracy and duty life.Stainless steel actuators are often designed to be compatible with industry-standard mounting dimensions, making them easy to integrate into existing systems or replace older actuators. This compatibility reduces installation time and costs while providing a seamless transition.
There are 13 sets CNC center currently in our workshop now to ensure the delivery time in time. A high-quality actuator ensures reliable operation, minimizing downtime and improving overall system performance. Stainless steel construction provides strength and enhances the actuator's ability to withstand heavy loads and high-pressure applications, ensuring smooth and consistent movement.
Product Application
XM series Stainless Steel Pneumatic Rack and Pinion Actuators can be suitable for various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor, which are widely used in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.
Why Choose XINMING?
- Since 2007, we have specialized in high-performance valve automation products.
- Comprehensive Product Range: Pneumatic actuators, ball valves, butterfly valves, solenoid valves, limit switch boxes, and more.

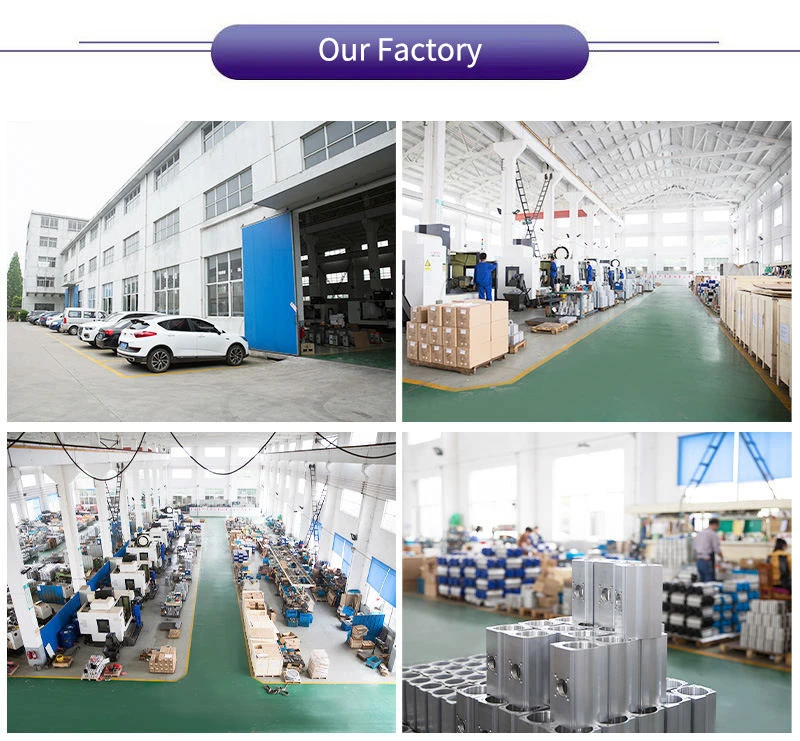

- Advanced Manufacturing Equipment: Equipped with CNC lathes, machining centers, and testing facilities ensuring top precision and quality.
- Strict Quality Assurance: Every actuator undergoes 100% functional testing before delivery.
- Global Service Network: Trusted by customers worldwide for technical support and long-term reliability.
Contact us today to request a quotation or discuss your valve automation requirements - our engineering team will help you select the perfect pneumatic rack and pinion actuator for your project.
