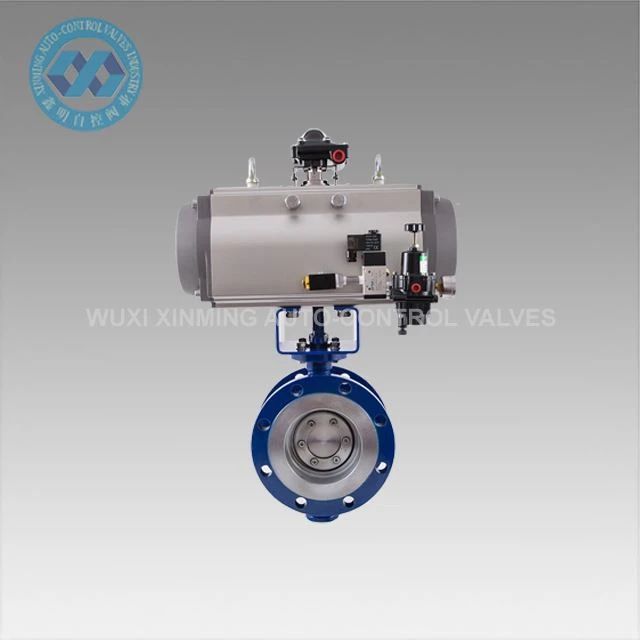

Butterfly Valve With Metal To Metal

The butterfly valve with metal to metal is suitable for high-temperature, high-pressure, and heat-preserving pipelines. It has the function of opening, closing or adjusting the flow. It has a compact structure, small size, light weight, flexible operation and convenient use.

Send Inquiry

Description

Our Butterfly Valve with metal to metal is a compact, lightweight, and cost-effective flow control solution that offers versatile performance across various applications. Designed with a wafer-style configuration for easy flange installation, it is particularly suitable for space-constrained piping systems in water, air, gas, and mild chemical services. The valve excels in demanding conditions, including high-temperature, high-pressure, and heat-preserving pipelines, providing reliable opening/closing functions and precise flow adjustment capabilities. Its optimized design combines a compact structure, small footprint, and lightweight construction with flexible operation for convenient use in diverse industrial environments.

Technical Parameter:

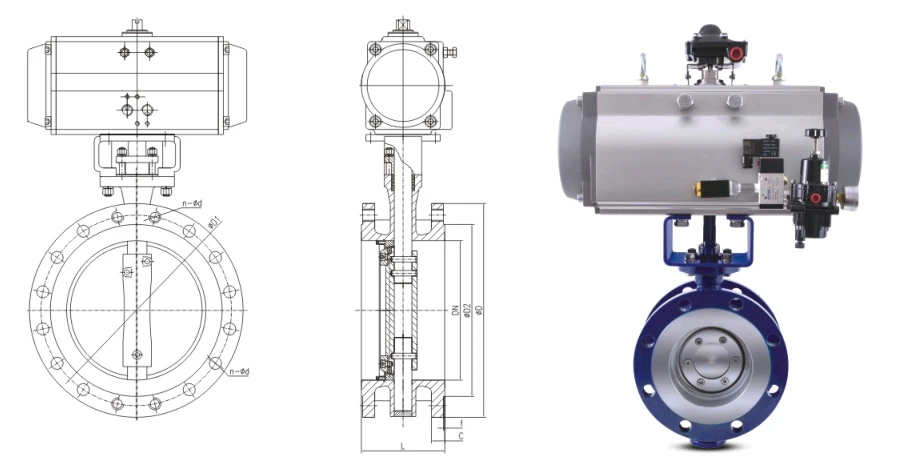

product-908-465

Nominal diameter DN (mm)	L (mm)	D (mm)	D1 (mm)	D2 (mm)	C (mm)	H (mm)	n-d
80	114	200	160	132	20	310	8-18
100	127	220	180	156	22	325	8-18
125	140	250	210	184	22	360	8-18
150	140	285	240	211	24	395	8-22
200	152	340	295	266	24	480	12-22
250	165	405	355	319	26	550	12-26
300	178	460	410	370	28	610	12-26
350	190	520	470	429	30	710	16-26
400	216	580	525	480	32	755	16-30
450	222	640	585	548	40	835	20-30
500	229	715	650	609	44	900	20-33
600	267	840	770	720	54	1060	20-36
700	292	910	840	794	40	1170	24-36
800	318	1025	950	901	42	1320	24-39
900	330	1125	1050	1001	44	1440	28-39
1000	410	1255	1170	1112	46	1640	28-42
1200	470	1485	1390	1328	52	1850	32-48
1400	530	1685	1590	1530	58	2040	36-48
1600	600	1930	1820	1750	64	2280	40-55
1800	670	2130	2020	1950	68	2495	44-55
2000	760	2345	2230	2150	70	2685	48-60

Executive standard		Scope of application
Design and manufacturing	JB/T8527,GB/T12224,API609,ASME B16.34 etc.Standard	Nominal diameter	DN50-DN3600 2"-144"	Different valves have different dimensions. Please call for details
Connection flange	GB/T9113.1~9113.4,ASME B16.5,ASME B16.47 etc.Standard	Nominal pressure	PN2.5-PN260 Class150-Class1500
Structure length	GB/T12221API609 IS05752, etc.Standard	Temperature range	-196C-600C
Inspection and experiment	JB/T9092 GB/T26480 API598 IS05208 etc.Standard	Connection method	Flange type, buttweld type, wafer type, lug type, etc.
		Body material	Carbon steel, chrome molybdenum steel, austenitic stainless steel, duplex stainless steel, titanium alloy, Hastelloy, Monel, etc.

Product Features:
Premium Metal Sealing: Hardened stainless steel seat and disc ensure reliable shut-off even after prolonged use
High-Temp/High-Pressure Design: Suitable for services up to 650°C and ANSI Class 600 pressure ratings
Compact & Lightweight: 30% lighter than gate valves with comparable ratings
Bi-Directional Flow: Excellent sealing performance in both flow directions

Design Advantages:
Triple-offset design prevents wear and ensures zero leakage
Fire-safe construction meets API 607/6FA standards
Low operating torque reduces actuator requirements
Maintenance-free operation with long service life

Typical Applications:
Refinery and petrochemical processes
Power plant steam systems
High-temperature gas transmission
Chemical processing with abrasive media

About Us:

The XM series pneumatic actuators produced by our company are researched, developed, and designed based on the comprehensive application of the introduction of new technologies, new materials, new processes, and innovative concepts at home and abroad, and fully comply with the new international standards: ISO5211, DIN3337, and VDINDE-3845, NAMUR standard. The products have passed the inspection of the national technical supervision agency and passed the ISO9001:2000 international quality system demonstration. The products are widely used in the automatic control of the chemical industry, oil refining, mining, power stations, metallurgy, construction, medicine, food, gas, scientific research, etc.

The company adheres to the corporate tenet of "pursuing better, technology first, sincerity and trustworthiness". We are committed to perfect management, high quality, doubled efficiency, to provide customers with satisfactory services, and to establish a relatively stable and good cooperative relationship in related industries. All my colleagues in the company sincerely hope to cooperate with you to create brilliance together.

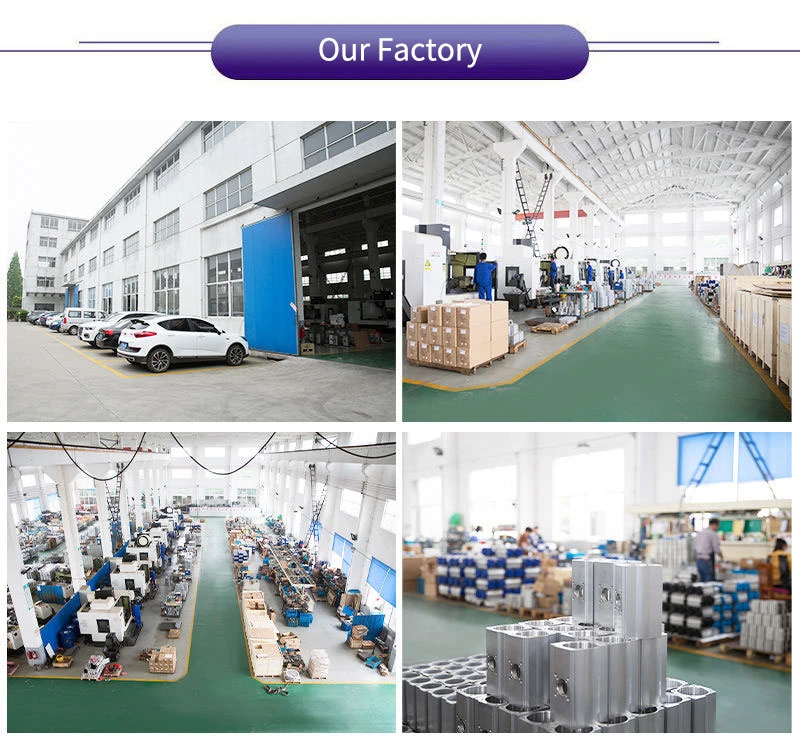

Our Factory
