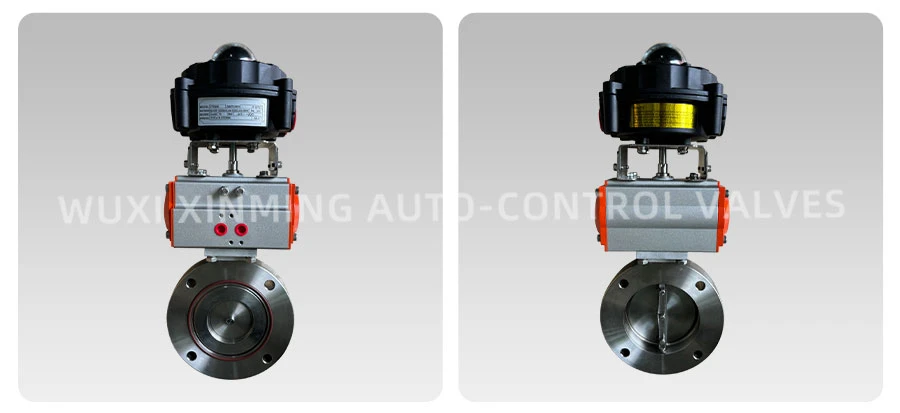

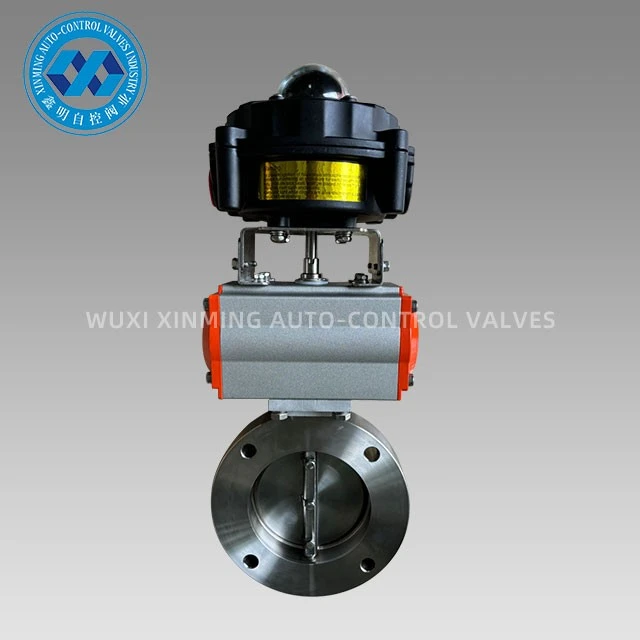

The pneumatic actuator vacuum butterfly valve is an advanced flow control device designed for high-performance vacuum systems and industrial automation. Powered by compressed air, the valve integrates a precision-engineered pneumatic actuator that ensures smooth, accurate, and reliable operation even under low-pressure or vacuum environments.
At WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD., our pneumatic actuator vacuum butterfly valve is manufactured with premium stainless steel or aluminum alloy components, ensuring corrosion resistance and leak-free performance. The valve's compact design and lightweight construction make it ideal for space-limited piping systems, while its fast-acting actuator allows for precise control in critical vacuum applications.
Product Advantages:
High Vacuum Compatibility
Designed specifically for vacuum pipelines, with tight sealing to prevent gas leakage and maintain system integrity.
Durable Construction
The valve body and disc are made from high-quality stainless steel or aluminum for enhanced strength and corrosion resistance.
Smooth Operation
The pneumatic actuator provides fast, stable, and repeatable opening and closing cycles.
Fireproof and Anti-static
Compliant with API 607 & ISO 10497, suitable for flammable gas and dusty environments.
Compact Design
Lightweight structure and minimal installation space required, making it ideal for automation systems.
Flexible Control Options
Can be configured with solenoid valves, limit switches, or positioners for precise pneumatic control.
Technical Specifications:
| Item | Specification |
| Product Name | Pneumatic Actuator Vacuum Butterfly Valve |
| Size Range | DN25 – DN600 (1" – 24") |
| Valve Body Material | Stainless Steel / Aluminum Alloy |
| Disc Material | SS304 / SS316 / Aluminum |
| Seat Material | EPDM / NBR / Viton / PTFE |
| Working Pressure | 0 – 1.0 MPa |
| Vacuum Range | 1×10⁻⁶ Torr or higher |
| Operating Temperature | -20°C to +200°C |
| Actuator Type | Double Acting / Spring Return Pneumatic Actuator |
| Air Supply Pressure | 0.4 – 0.7 MPa |
| Connection Type | Flanged / Wafer / Clamp Type |
| Control Accessories | Solenoid valve, limit switch, positioner, manual override |
Product Applications:
The pneumatic actuator vacuum butterfly valve is widely used in systems that require efficient vacuum sealing and precise flow regulation, including:
- Vacuum coating and metallization equipment
- Semiconductor manufacturing and electronics production
- Pharmaceutical and medical sterilization systems
- Food packaging and processing lines
- Laboratory and research vacuum chambers
Its reliable sealing performance and fast actuation make it an ideal solution for modern automation environments where vacuum control is essential.
Quality Control:
At WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD., every pneumatic actuator vacuum butterfly valve undergoes rigorous inspection and testing:
- Vacuum leakage test to ensure zero gas permeation
- Pressure and temperature cycle testing
- Actuator response and torque verification
- Dimensional and surface quality inspection
- Compliance with ISO, CE, and RoHS standards
Our quality management system ensures consistent performance and long service life for every valve we produce.
Packaging & Delivery:
Each valve is securely packed in anti-static plastic film and foam-lined wooden boxes to prevent vibration, corrosion, or contamination during shipment. Customized export packaging is available upon request.
We cooperate with trusted logistics partners to guarantee timely global delivery by air, sea, or express service.
After-Sales Service:
We provide full technical support before and after sales, including valve selection, installation guidance, and operation troubleshooting. If replacement parts or accessories are needed, our team ensures fast response and continuous supply.
Customer satisfaction and long-term cooperation are always our top priorities.
With over 15 years of professional manufacturing experience, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD. specializes in pneumatic actuators, butterfly valves, and complete automation solutions.
Our factory is equipped with advanced CNC machines, testing facilities, and an R&D team dedicated to developing high-efficiency, reliable, and cost-effective control valve systems. We have established long-term partnerships with clients in Europe, Asia, and the Americas, trusted for consistent product quality and technical innovation.
