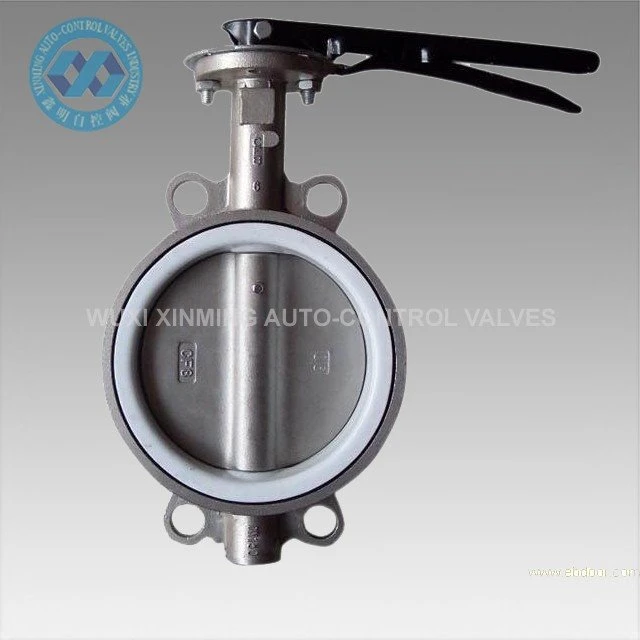

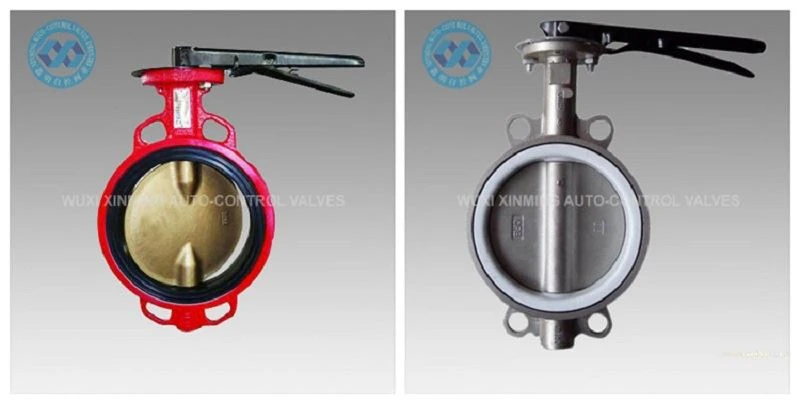

Product Introduction
Soft-seal Butterfly Valve is a component used to cut off the pipeline system and control the flow rate. It has been widely used in many fields such as petroleum, chemical industry, metallurgy, and hydropower.To automatically start and stop flow faster than motor-driven valves, these operate on compressed air. You must control the air to the actuator using either the included electric pilot valve or a manual on/off valve Valves don't require a minimum pressure drop between the inlet and outlet for operation.

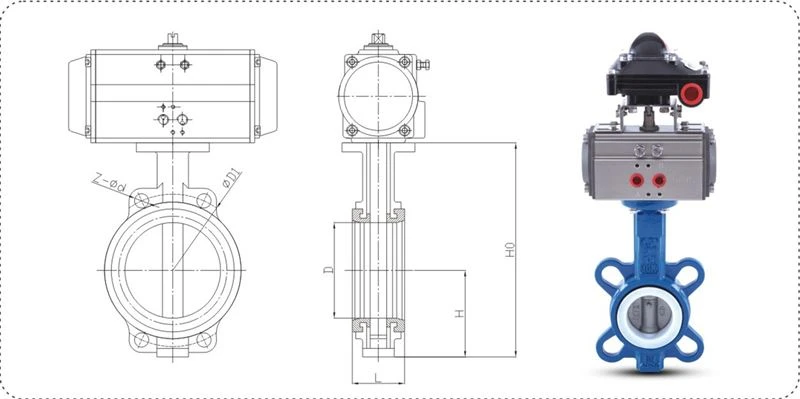

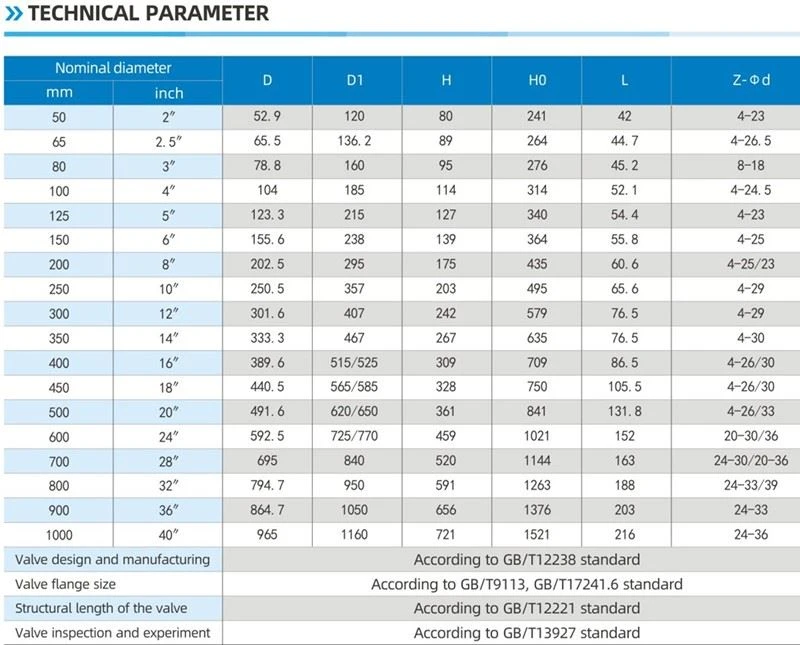

Technical Specifications
| Product Name: | Soft-seal Butterfly Valve |
| Brand name: | XM, and OEM is also accepted |
| Butterfly Valve size: | 25mm-1000mm |
| Certification: | CE, ATEX, SIL3, ISO9001:2016 |
| Valve Type: | Butterfly |
| For Use With: | Water, Oil, Air, Natural Gas, Steam, Drinking Water |
| Seal Material : | EPDM Rubber, NBR, PTFE, metal-to-metal |
| Specifications Met: | API 609 |
Product Features
Excellent Sealing Performance
The soft rubber seat provides a bubble-tight seal, ensuring zero leakage in both directions.
Corrosion and Wear Resistance
High-quality body materials and vulcanized sealing rings resist corrosion and extend service life.
Compact and Lightweight
The wafer or lug design makes installation and maintenance simple, saving space and reducing pipeline weight.
Multiple Operation Modes
Can be equipped with manual gearbox, pneumatic actuator, or electric actuator to suit automation requirements.
Wide Range of Applications
Applicable to water, air, oil, gas, and other non-corrosive or weakly corrosive fluids.
Product Application
The Soft-seal Butterfly Valve is widely used in:
Water supply and wastewater treatment systems
HVAC and air conditioning systems
Chemical and petrochemical industries
Food and beverage processing
Power generation and shipbuilding
General industrial pipelines
Its reliable sealing and simple design make it a cost-effective solution for large-diameter flow control.
Why Choose XINMING?
- Over 15 years of valve manufacturing experience

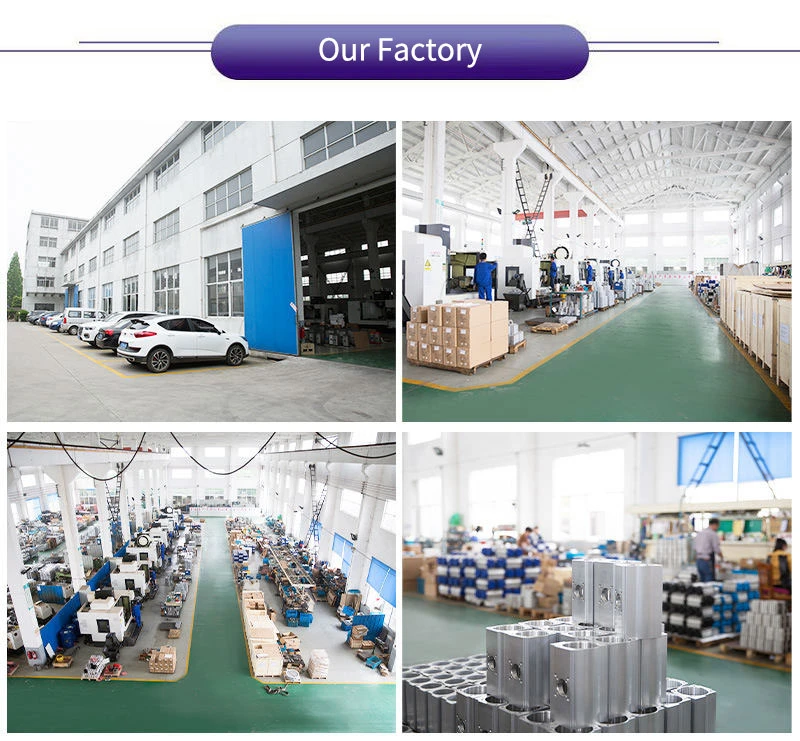

- Equipped with CNC machining centers and advanced testing facilities
- Strict quality control ensures zero-defect products
- Flexible customization for size, material, and actuator type
- Fast delivery and professional after-sales service
Supply Ability
Supply Ability: 1000 units per month, Pneumatic Butterfly Valve
Packing & Delivery
Packing detail:
1) If a big quantity, plywood case
2) If a small quantity, a Carton or Plywood pallet
Port of departure: Shanghai, China
Lead Time:
|
Quantity(Units) |
1-50 |
51-1000 |
＞1001 |
|
Est. Time(days) |
Goods in stock |
30 |
To be negotiated |
The Soft-seal Butterfly Valve by WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD. offers exceptional sealing performance, corrosion resistance, and operational reliability. Designed for diverse applications and long-term durability, our Soft-seal Butterfly Valve is the perfect solution for efficient and cost-effective flow control in modern industrial systems.
Looking for a trusted Soft-seal Butterfly Valve manufacturer?
Contact WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD. today for detailed specifications, competitive pricing, or customized solutions.
Send your inquiry now - our engineering team will reply within 24 hours!
