ALS-200M Limit switch boxes are used in automated valve systems to provide accurate valve position monitoring and reliable feedback signals for process control systems. Installed on pneumatic actuators, the switch box visually and electrically indicates whether a valve is in the open or closed position, helping operators maintain safe and stable valve operation in industrial environments.
In modern process automation systems, valve position feedback is critical for remote monitoring, shutdown verification, and automated control sequences. A properly configured limit switch box helps reduce the risk of incorrect valve status indication, especially in applications involving hazardous media, high-pressure pipelines, or unmanned process systems.
The ALS-200M limit switch box is designed for quarter-turn pneumatic actuators and is suitable for ball valves, butterfly valves, and plug valves used in oil & gas, chemical processing, water treatment, power generation, and general industrial automation systems.
Manufactured from aluminum die-casting or stainless steel (304/316), the enclosure provides strong mechanical protection and corrosion resistance for demanding operating conditions. Stainless steel versions are particularly suitable for offshore, marine, chemical, and corrosive process environments where long-term environmental resistance is required.
The housing is rated IP67, helping protect internal electrical components against dust ingress, moisture, rainwater, and temporary immersion conditions commonly encountered in outdoor industrial installations.
Product Specifications
| Model | ALS-200M |
| Material | Aluminum Diecasting/Stainless Steel (304/316) |
| Shell |
IP67 |
| Ambient temperature | -25℃ ~ +85℃ |
| Position indicator | on-yellow; off-red |
| Cable entry | 2-1/2NPT; PT1/2; PF1/2; M20; PG13.5 |
Reliable Valve Position Indication

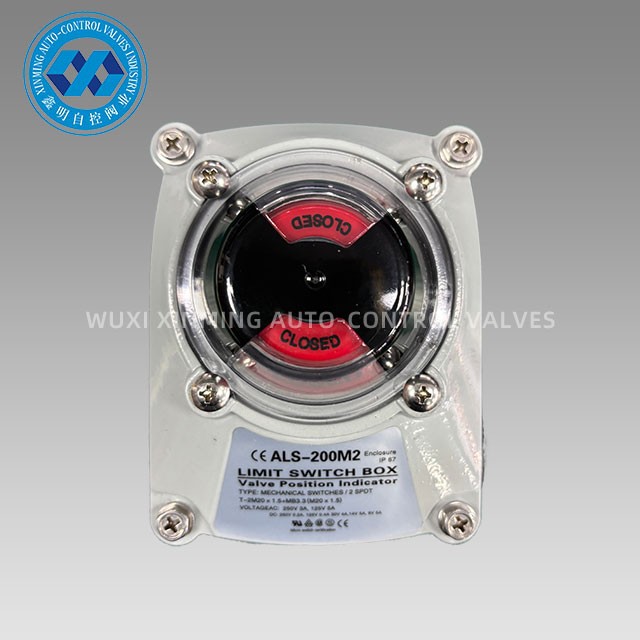

The ALS-200M limit switch box includes a highly visible visual position indicator mounted on the top of the enclosure:
- Yellow indicator: Valve open position
- Red indicator: Valve closed position
This allows maintenance personnel and operators to quickly verify valve status during field inspection without accessing the control system.
Flexible Installation and Cable Entry Options
To support different industrial installation standards, the ALS-200M provides multiple cable entry configurations:
- 2 × 1/2" NPT
- PT1/2
- PF1/2
- M20
- PG13.5
This flexibility simplifies integration into existing plant automation systems and international project requirements.
Product Applications
ALS-200M limit switch boxes are widely used in:
- Pneumatic valve automation systems
- Oil & gas process lines
- Chemical processing plants
- Water treatment facilities
- Power generation systems
- Offshore platforms
- Industrial pipeline control systems
For automated valve systems, reliable position feedback is essential not only for operational efficiency, but also for process safety and shutdown verification. Limit switch boxes play a critical role in ensuring valves operate correctly within industrial control systems.
