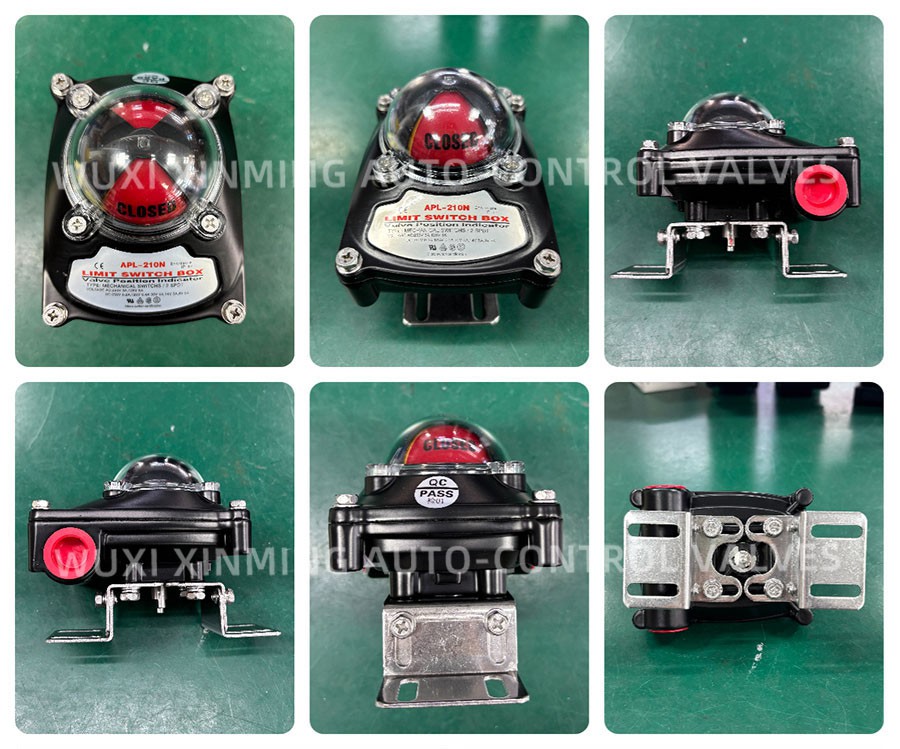

The APL-210N limit switch box is designed for reliable valve position feedback in pneumatic actuator systems used in industrial automation. It provides clear open/close indication and electrical switching signals to support monitoring and control of quarter-turn valves such as ball valves and butterfly valves.
Mounted directly on the actuator, the device converts rotary valve movement into mechanical switching actions. These signals are typically sent to PLC or DCS systems, enabling accurate valve status confirmation in process control and safety interlocking applications.
Product Specifications
| Model | APL-210N |
| Material | Aluminum Diecasting/Stainless Steel (304/316) |
| Shell |
IP67 |
| Ambient temperature | -25℃ ~ +85℃ |
| Position indicator | on-yellow; off-red |
| Cable entry | 2-1/2NPT; PT1/2; PF1/2; M20; PG13.5 |
Housing Design and Environmental Protection
The enclosure is available in aluminum die-cast or stainless steel (304/316), depending on corrosion and durability requirements.
- Aluminum housing: general industrial service
- Stainless steel housing: corrosive or offshore environments
The IP67 protection rating ensures resistance against dust ingress and temporary water immersion, making it suitable for exposed field installations.

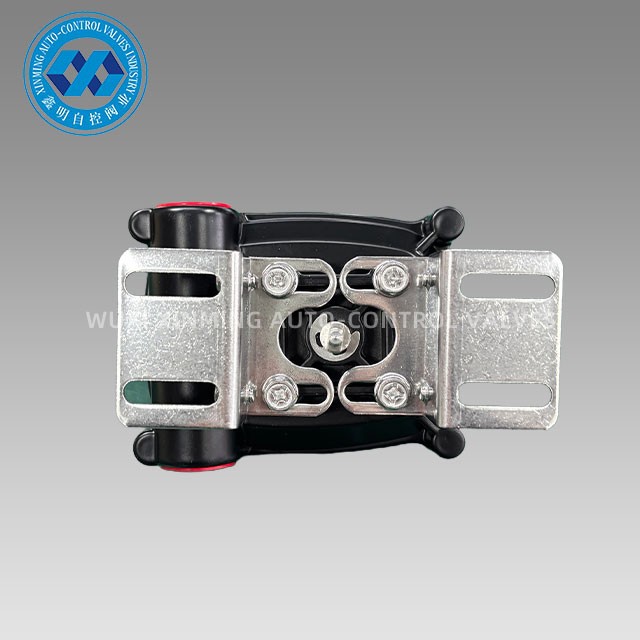

Mechanical Position Feedback System
The internal cam-driven mechanism provides direct actuation of mechanical switches based on valve rotation.

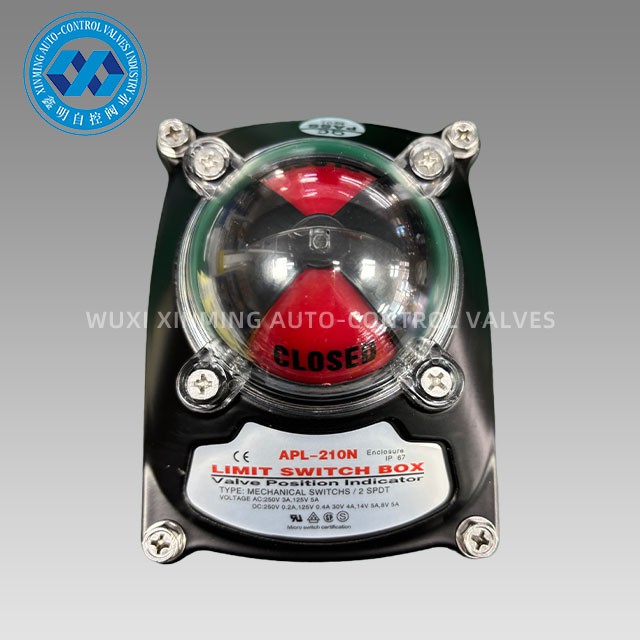

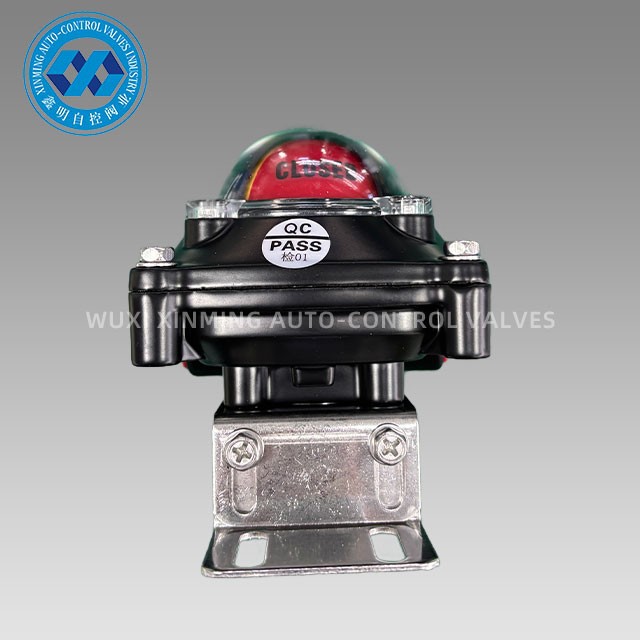

Position indication is provided through a visual indicator:
- Yellow: valve open
- Red: valve closed
This allows direct field verification of valve status without control system access.
Electrical Integration and Cable Entry

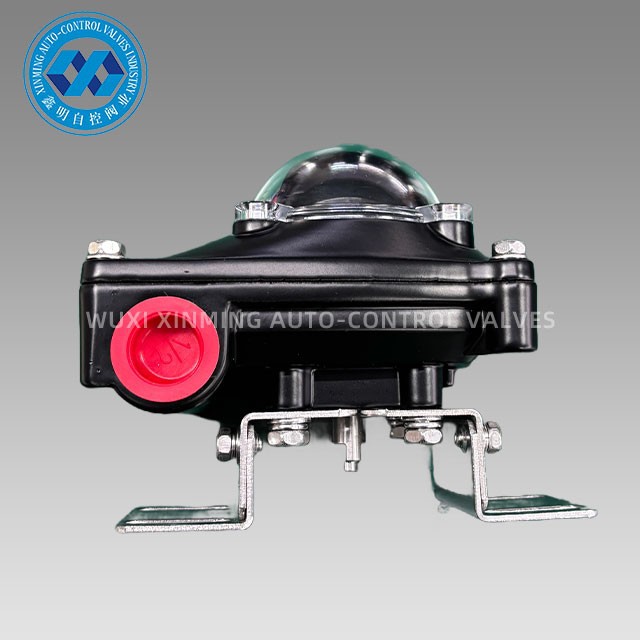

The APL-210N supports multiple cable entry configurations for global installation compatibility:
- 2 × 1/2" NPT
- PT1/2
- PF1/2
- M20
- PG13.5
This flexibility supports integration into different regional standards and actuator control architectures.
Application Scope
The APL-210N is used in valve automation systems requiring reliable discrete position feedback, including:
- Pneumatic actuator assemblies
- Quarter-turn valve systems
- Oil and gas pipeline infrastructure
- Chemical processing plants
- Water and wastewater systems
- General industrial process control
Mechanical limit switch boxes remain widely used in industrial automation due to their tolerance to field conditions, predictable switching behavior, and compatibility with standard actuator interfaces. The APL-210N is positioned for applications where robustness and operational consistency are prioritized over advanced diagnostic functionality.
