Product Introduction

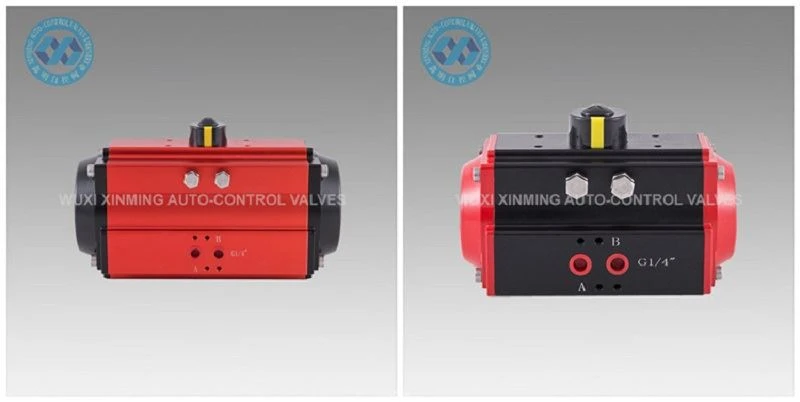

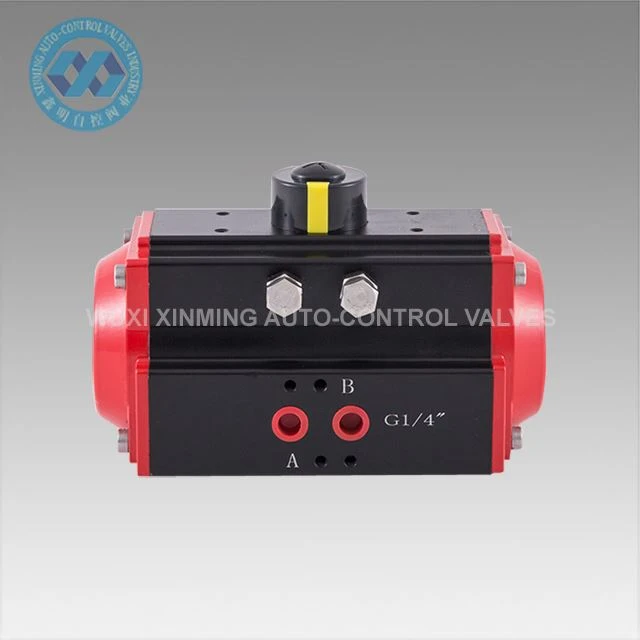

The 90 Degree Pneumatic Rotary Actuator from WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD. is a compact and high-performance device designed to provide precise 90-degree rotary motion for the automatic control of valves. It is widely used to operate ball valves, butterfly valves, and plug valves, offering fast response, stable torque output, and long service life.
Engineered with advanced pneumatic technology, this 90 Degree Pneumatic Rotary Actuator converts air pressure into mechanical torque to perform quarter-turn valve operations efficiently. It is ideal for industries that demand reliable valve automation, such as chemical, petrochemical, water treatment, food processing, and power generation.
Technical Specifications
| Product Name: | 90 degree pneumatic rotary actuator |
| Brand name: | XM, and OEM is also accepted |
| Actuator size: | 32mm-400mm |
| Rotary angle: | 0°~90°(±5°) |
| Working Temperature Range: |
-20℃~ +80℃(standard) -40℃~+80℃(low temperature) -15℃~150℃(high temperature) |
| Air supply pressure: |
0.2~0.8MPa, 10Mpa max |
| Top connection: | VDI/VDE3845 NAMUR |
| Bottom connection: | ISO 5211 and DIN3337 |
| Material: | Aluminum alloy |
| Structure: | rack and pinion, dual rack pistons |
| Actuator body surface treatment: | hard anodized, or dip oxidation |
| End Cap Color: | black gray, black, dark blue, sky blue, red, orange, green,etc. |
| Certification: | CE, ATEX, SIL3, ISO9001:2016 |

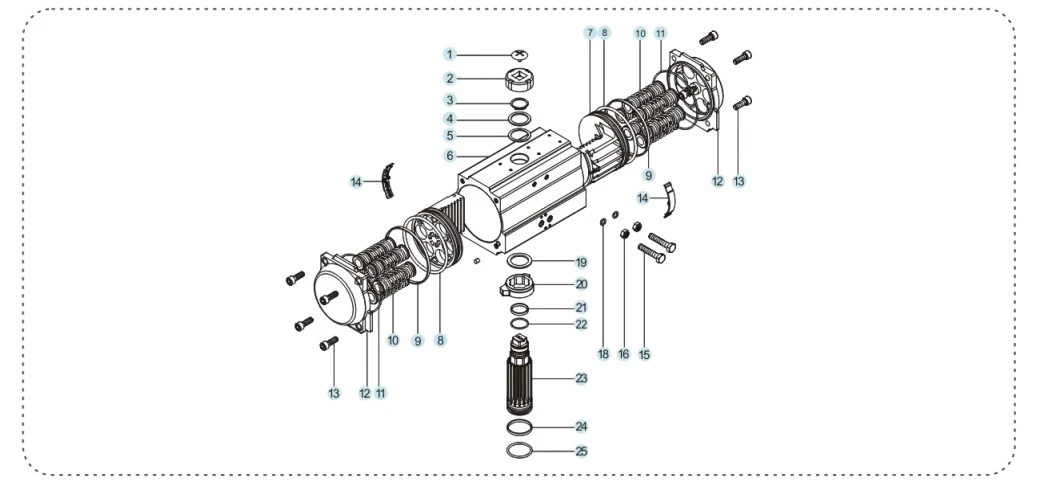

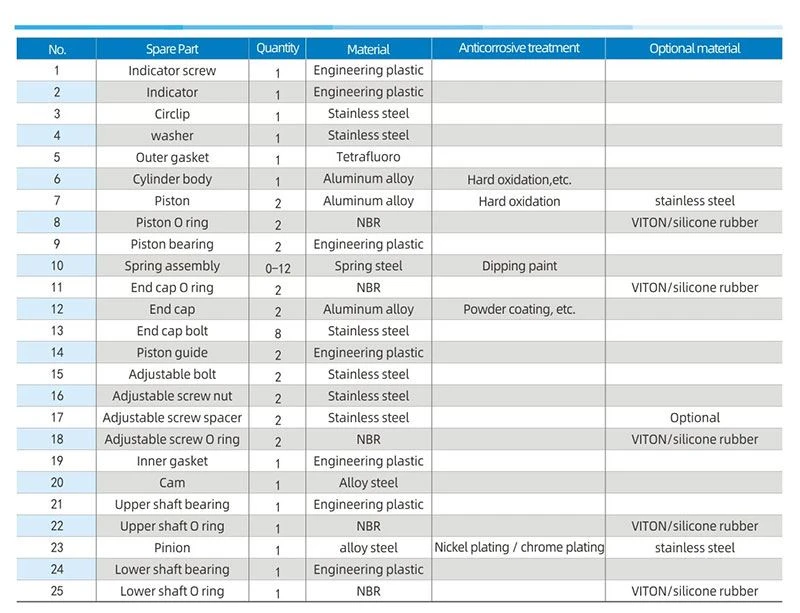

Spare Parts And Materials

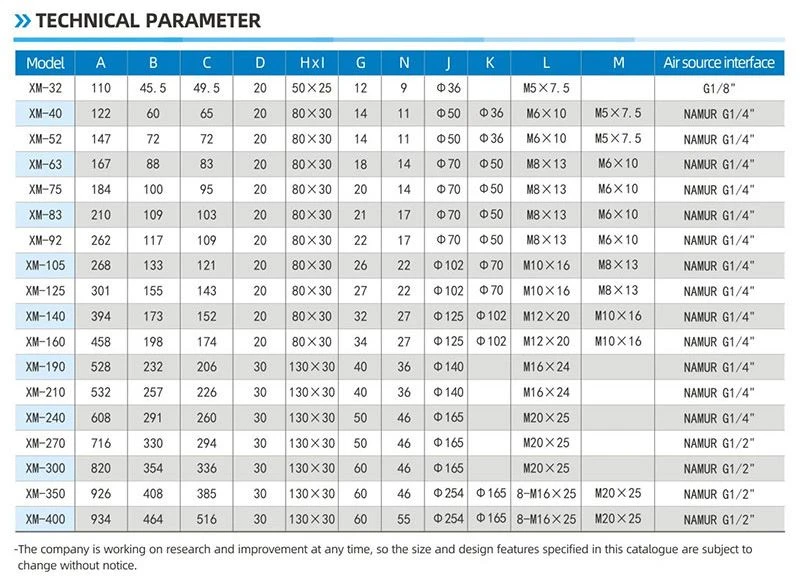

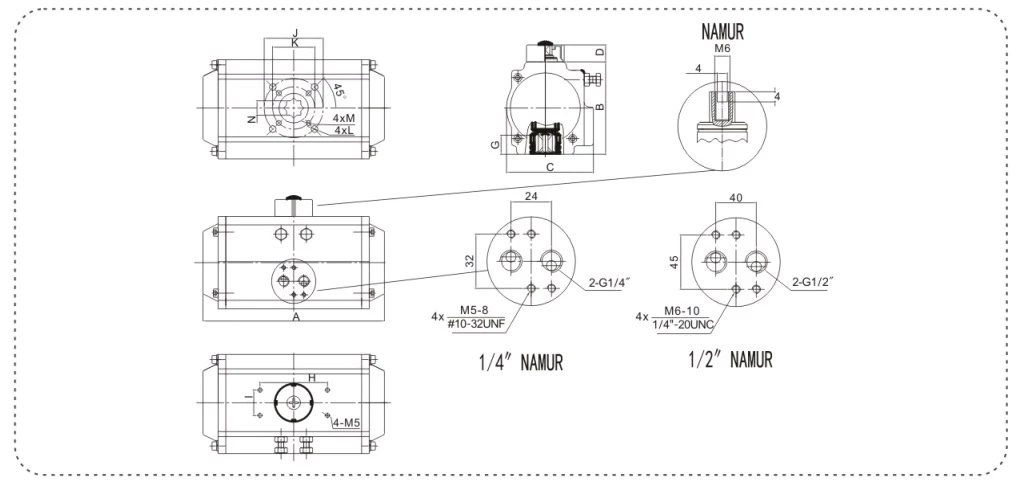

Dimension Diagram
Product Advantage
Fast and reliable valve actuation
High torque-to-size ratio
Easy installation with ISO/NAMUR mounting
Long-lasting, corrosion-resistant materials
Optional accessories for automation integration
Cost-effective solution for industrial valve control
1) All important spare parts would be treated with hard-anodization to enhance their strength to a great degree to ensure good performance and duty life.
2) All processes are one-time forming by CNC to ensure the process accuracy and duty life.
