1,Indicator Position indicator with NAMUR is convenient for mounting accessories such as Limit Switch box, positioner and so on.
2,Pinion The pinion is high-precision and integrative,made form nickelled-alloy steel, full conform to the latest standards of ISO5211,DIN3337,NAMUR. The dimensions can be customized and the stainless steel is available.
3,Actuator Body According to the different requirements, the extruded aluminum alloy ASTM6005 Body can be treated with hard anodized, powder polyester painted ( different colours is available such as blue, orange, yellow etc.),PTFE or Nickel plated.
4,End caps Die-casting aluminum powder polyester painted in different colours, PTFE or Nickel plated.
5,Pistons The twin rack pistons are made form Die-casting aluminum treated with Hard anodized or made form Cast steel with galvanization. Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
6,Travel adjustment The tow independent external travel stop adjustment bolts can adjust ±5°at both open and close directions easily and precisely.
7,High performance springs Preloaded coating springs are made form the high quality material for resistant to corrosion and longer service life, which can be denounced safelyand conveniently to satisfy different requirements of torque by changing quantity of springs.
8,Bearings & Guides Made form low friction, long-life compound material, to avoid the direct contact between metals. The maintenance and replacement are easy and convenient.
9,O-rings NBR rubber O-rings provide trouble-free operation at standard temperature ranges.For high and low temperature applications Viton or Silicone.

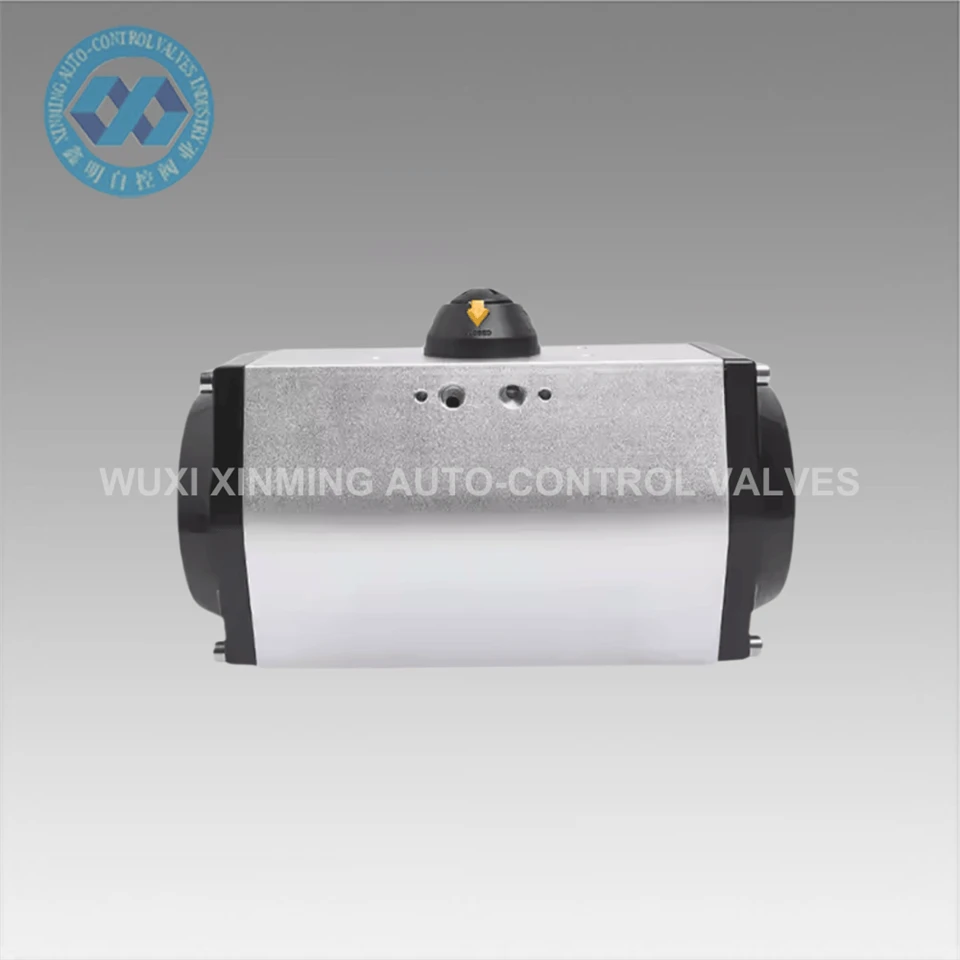

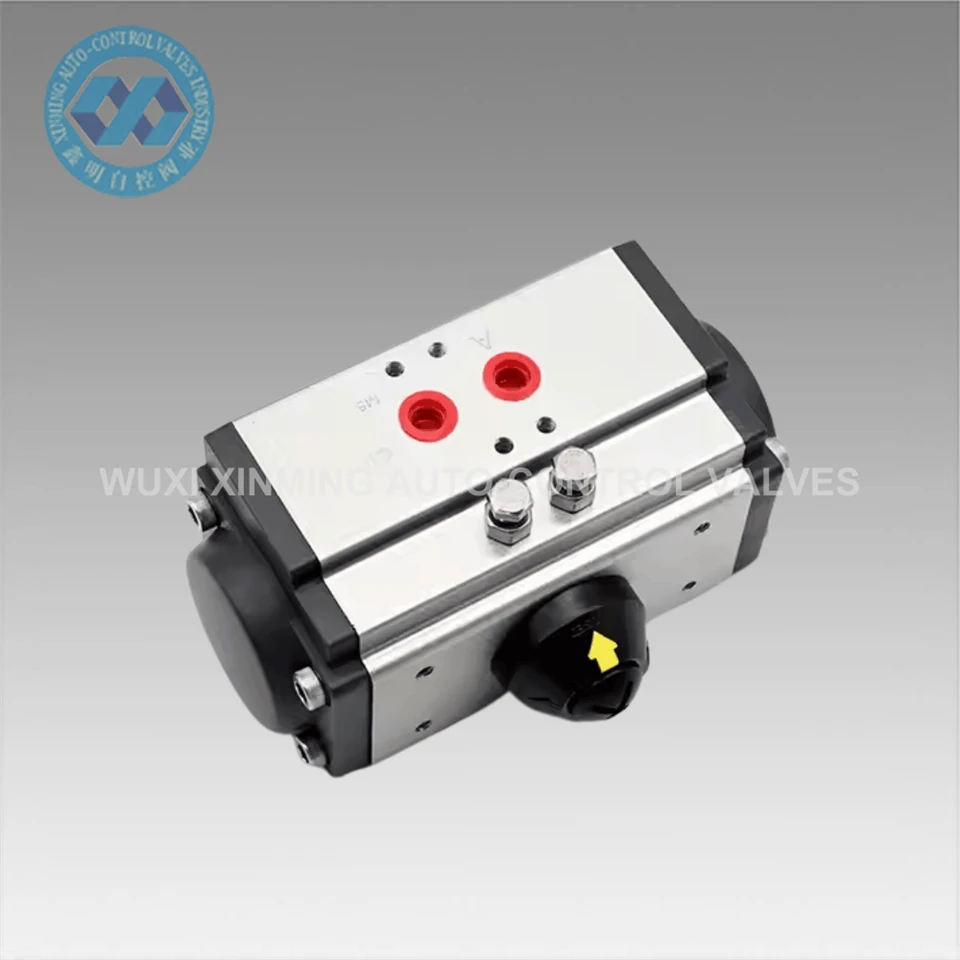

Product Name: Single Acting Pneumatic Actuator
Brand name: XM, or OEM
Actuator size: 32mm-400mm
Rotary angle: 0°~90°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Air supply pressure: 0.2~0.8MPa
Top connection: VDI/VDE3845 NAMUR
Bottom connection: ISO 5211 and DIN3337
Material: Aluminum alloy
Structure: rack and pinion, dual rack pistons
Actuator body surface treatment: hard anodized
End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.
Certification: CE, ATEX, SIL3, ISO9001:2015
