Product Overview
The APL-210N Mechanical Limit Switch Box is designed for precise valve position indication and feedback in industrial automation systems. It is widely used on pneumatic rotary actuators and quarter-turn valves, such as ball valves and butterfly valves, to provide reliable open/close status signals to control systems.
This limit switch box converts the mechanical rotation of the valve stem into electrical switching signals through an internal cam mechanism, ensuring accurate position monitoring during automated valve operation. It is an essential component in process industries where real-time valve status feedback is required for safe and stable system control.
Working Principle
The APL-210N is installed on top of a pneumatic actuator and mechanically linked to the valve stem. When the valve rotates between 0° and 90°, the cam inside the switch box rotates accordingly and triggers the internal mechanical switches.

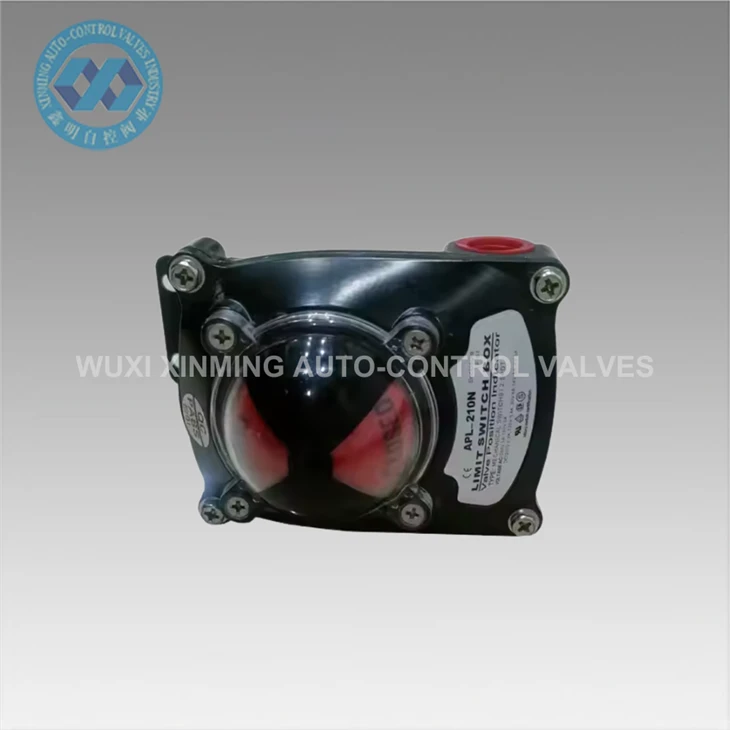

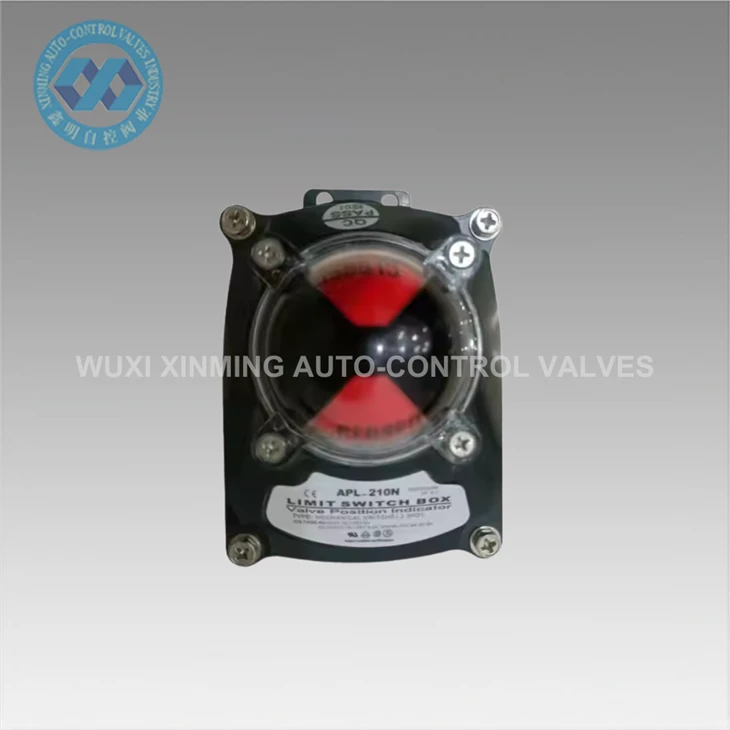

These switches send ON/OFF signals to PLC or control systems, indicating whether the valve is in fully open or fully closed position. A visual indicator on the top cover provides clear onsite confirmation without opening the device.

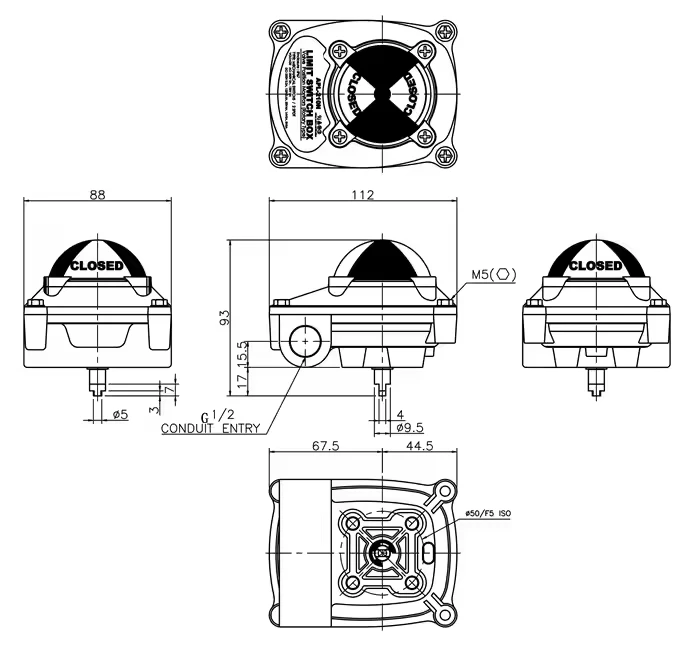

Technical Specifications
| Model | APL-210N |
| Product Type | Mechanical Limit Switch Box |
| Application | Valve position indication |
| Compatible Valves | Ball valve, Butterfly valve |
| Rotation Range | 0° – 90° |
| Housing Material | Aluminum Alloy |
| Protection Class | IP67 |
| Mounting Standard | NAMUR |
| Signal Type | Mechanical ON/OFF switch |
| Installation | Pneumatic rotary actuator mounted |
Applications
The APL-210N limit switch box is widely used in industrial automation systems requiring valve position feedback:
- Oil and gas pipeline valve control systems
- Water treatment and wastewater facilities
- Chemical processing plants
- Power generation systems
- Industrial process automation lines
- HVAC and general flow control systems
In typical operation, it is installed on a pneumatic actuator driving a butterfly valve, where it continuously reports valve open/close status back to the control room for safe process monitoring.
