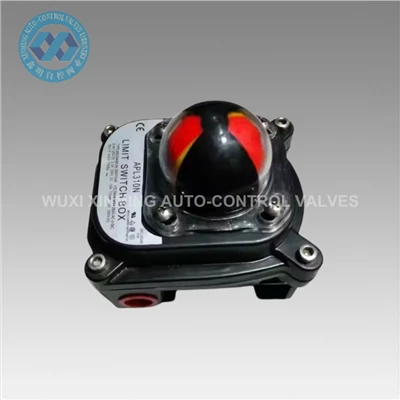

Structural Features
•Compact Design: To fit into the limited installation space of butterfly valve pneumatic actuators, this limit switch is designed to be extremely compact, minimizing additional occupied space and facilitating the layout and integration of the overall system.
•Robust Housing: It is usually equipped with a housing made of metal (such as aluminum alloy, stainless steel) or high - strength plastic. This effectively protects the internal precision components, enabling it to withstand vibrations, impacts, and harsh environmental conditions.
•Precision Micro - switches: High - precision micro - switches are built - in, which can quickly respond to the position changes of the actuator. Their contacts have excellent electrical performance and mechanical lifespan, ensuring reliable signal transmission.
•Adjustability: The position adjustment function is an important feature of this limit switch. It can accurately adjust the trigger position of the switch according to the actual stroke of the butterfly valve and application requirements, thus achieving precise control.
•Sealing Structure: To prevent the ingress of dust, moisture, and corrosive substances, the limit switch has a good sealing structure. The protection level usually reaches IP65 and above, making it suitable for various harsh industrial environments.
Advantages
•High - Precision Control: With accurate micro - switches and adjustability, it can accurately detect the position of the butterfly valve pneumatic actuator, achieving precise control of the valve opening degree and meeting the strict requirements of various industrial processes for parameters such as flow and pressure.
•High Reliability: The robust housing and good sealing structure enable the limit switch to work stably in harsh industrial environments, reducing the probability of failures and improving the reliability and stability of the system.
•Long Service Life: The micro - switches have a long mechanical and electrical lifespan, which can withstand frequent operations and long - term use, reducing maintenance costs and replacement frequencies.
•Easy Installation: The compact design and standardized installation interfaces make the limit switch easy to install and debug, and it can be quickly integrated into the existing butterfly valve pneumatic actuator system.
•Stable Signal Output: It can provide stable and reliable electrical signals, facilitating connection with control systems for automated control and remote monitoring.
Disadvantages
•High Cost: Due to the use of high - precision micro - switches, high - quality materials, and complex manufacturing processes, its price is relatively high, increasing the procurement cost of the system.
•High Installation Requirements: To ensure its accuracy and reliability, the installation of the limit switch needs to be carried out strictly in accordance with the operating procedures, and the technical level and installation process of installers are required to be high.
•Not Suitable for Extreme Working Conditions: Although it has good protection performance, in some extremely harsh working conditions, such as high - temperature, high - pressure, and strong - corrosion environments, it may still be limited to a certain extent, and additional protective measures are required.
Working Principle
When the butterfly valve pneumatic actuator moves, it drives the valve stem or transmission components connected to it. The limit switch is connected to the moving parts of the actuator through mechanical connection or sensing methods. When the actuator moves to the preset position, it will trigger the micro - switch inside the limit switch.
The contacts of the micro - switch will change their states, for example, from normally open to normally closed or from normally closed to normally open. This state change is converted into an electrical signal (such as a switch - quantity signal) and transmitted to the control system (such as PLC, DCS, etc.) through a cable.
The control system judges the current position of the butterfly valve based on the received signal and performs corresponding control operations, such as stopping the movement of the actuator, starting other equipment, or sending an alarm signal. By adjusting the trigger position of the limit switch, precise control of different opening degrees of the butterfly valve can be achieved.
