Product Introduction
In many industrial automation systems, a standard pneumatic actuator is not always enough. In real project environments such as dosing, blending, and multi-line transfer systems, operators often need a valve to stop at a repeatable intermediate position, instead of only fully open or fully closed.

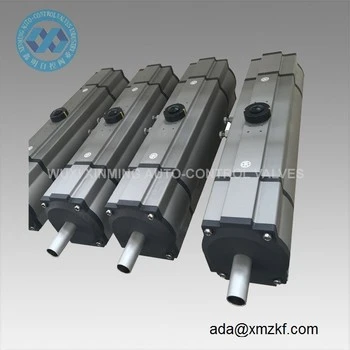

The XM Three Position Pneumatic Actuator is designed for this type of control requirement. It allows the valve to operate at three defined positions-typically open, intermediate, and closed-helping improve process flexibility in automated pipeline systems. It is widely used in chemical dosing, mixing systems, tank switching, and industrial flow control applications.
Features
- Three-position control: open, intermediate, and closed positions
- Stable pneumatic operation with repeatable positioning
- Available in customized intermediate angle settings
- Rack and pinion design for smooth torque transmission
- Compatible with double acting pneumatic systems
- ISO 5211 mounting for easy valve installation
- Suitable for automated process control systems
Technical Specifications
Product Type: Three Position Pneumatic Actuator
Actuator Design: Rack and Pinion
Operation Type: Three-position pneumatic control
Position Options: 0°–45°–90°
Working Medium: Clean, dry compressed air
Body Material: Aluminum alloy
Mounting Standard: ISO 5211
Operating Pressure: 2.5 – 8 bar
Control System: Solenoid valve based pneumatic control
Compatibility: Ball valves, butterfly valves, rotary valves
Applications
- Chemical dosing systems
- Mixing and blending process lines
- Tank filling and switching systems
- Multi-line fluid distribution systems
- Batch processing equipment
- Automated flow control systems requiring intermediate positioning
FAQ
Q: What is the difference between three position and standard pneumatic actuator?
A: Standard actuators only provide open and closed positions, while three position actuators add a repeatable intermediate position for process control.
Q: Can the intermediate position be customized?
A: Yes, different angles such as 30°, 45°, or other positions can be configured.
Q: Where is this actuator typically used?
A: It is commonly used in dosing, mixing, and multi-line flow switching systems.
