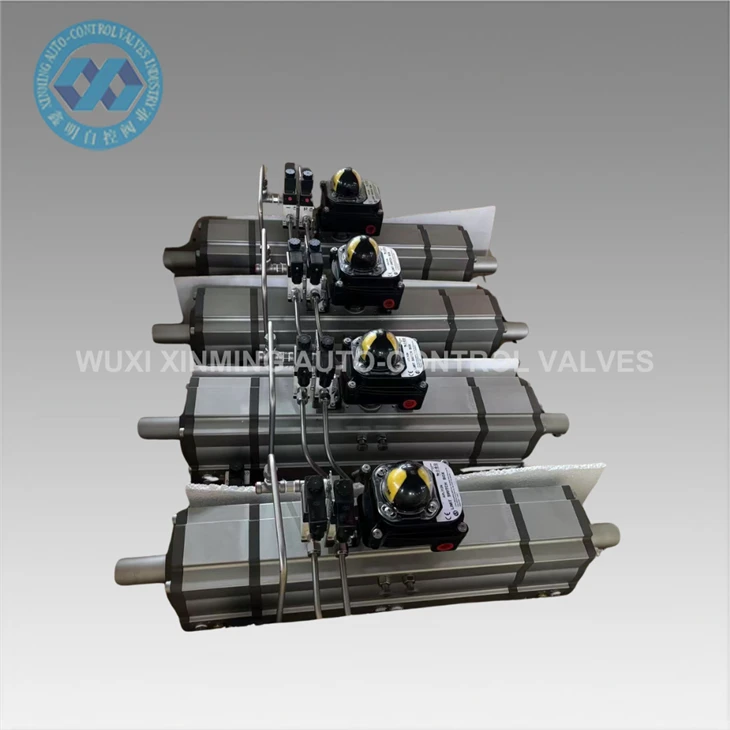

Pneumatic Actuator For Three-stage Flow Control Of Petrochemical Pipeline
video
Pneumatic Actuator For Three-stage Flow Control Of Petrochemical Pipeline

Pneumatic Actuator For Three-stage Flow Control Of Petrochemical Pipeline

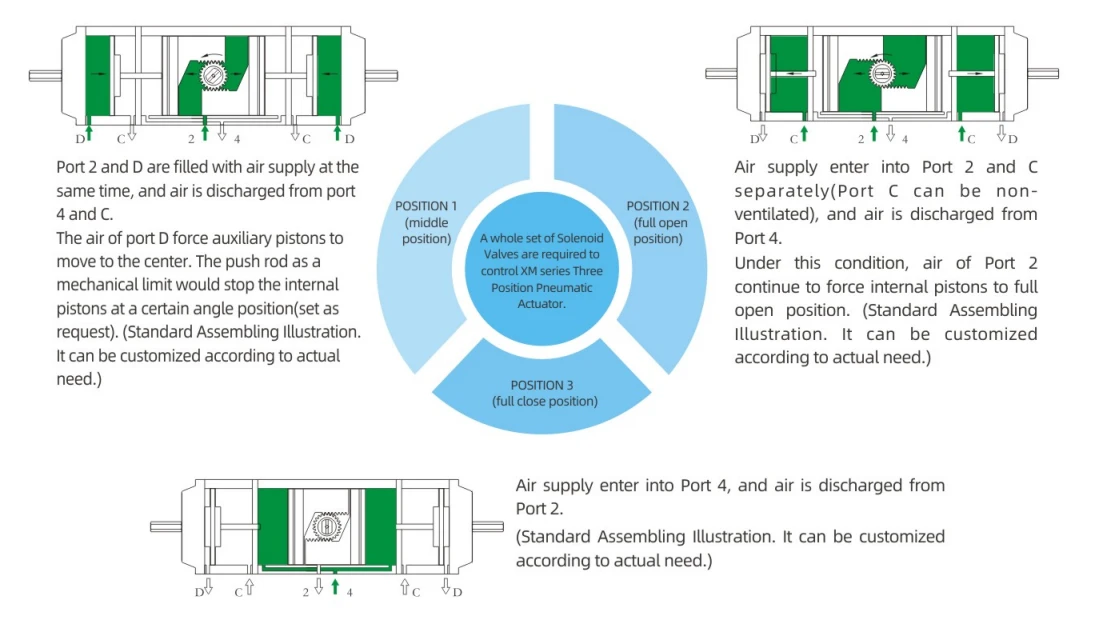

The XM Series three-stage pneumatic actuators are available in a 0° - 45° -90° or 0° -90° -180° mode of operation, The intermediateposition is achieved by the mechanical brake produced by the movement of two auxiliary pistons. The intermediate position isadjustable, such as a 90° rotary angle actuator can set intermediate position to be 20°, 30°, 50°, or 75°.
Send Inquiry
Description

With their multi-position control capabilities, three-position pneumatic actuators provide greater flexibility and reliability in complex industrial processes, particularly where fine-tuning or fail-safe design is required. The selection should be balanced by comprehensive working condition demand, cost and maintenance convenience.



product-1100-635
