Pneumatic Extended Welding Ball Valve: Product Introduction
Overview
The Pneumatic Extended Welding Ball Valve is a specialized flow control device designed for applications requiring high durability, tight sealing, and compatibility with high-temperature or corrosive media. Featuring an extended stem and welded construction, this valve is ideal for industries such as oil and gas, petrochemicals, and power generation, where reliability and performance under extreme conditions are critical. Its combination of robust materials, precise pneumatic actuation, and extended design ensures optimal performance in demanding environments.
Structural Features
1. Valve Body:
- Constructed from carbon steel, stainless steel, or alloy steel, providing high strength and resistance to extreme temperatures and pressures.
- Features a welded construction, ensuring a leak-proof and robust design suitable for high-integrity applications.
2. Extended Stem:
- The extended stem design allows the valve to be installed in pipelines with insulation or high-temperature environments, protecting the actuator from heat damage.
- The stem is made of stainless steel or high-strength alloy, ensuring durability and resistance to corrosion.
3. Ball:
- The ball is precision-machined from stainless steel or alloy steel, often coated with hard materials (e.g., tungsten carbide) for enhanced wear resistance.
- Designed with a full-bore or reduced-bore configuration, the full-bore design minimizes pressure drop and allows for easy cleaning.
4. Seats:
- Made of PTFE, PEEK, or metal seals, providing excellent sealing performance and compatibility with high-temperature and corrosive media.
- The seats ensure bubble-tight shut-off, even under high-pressure conditions.

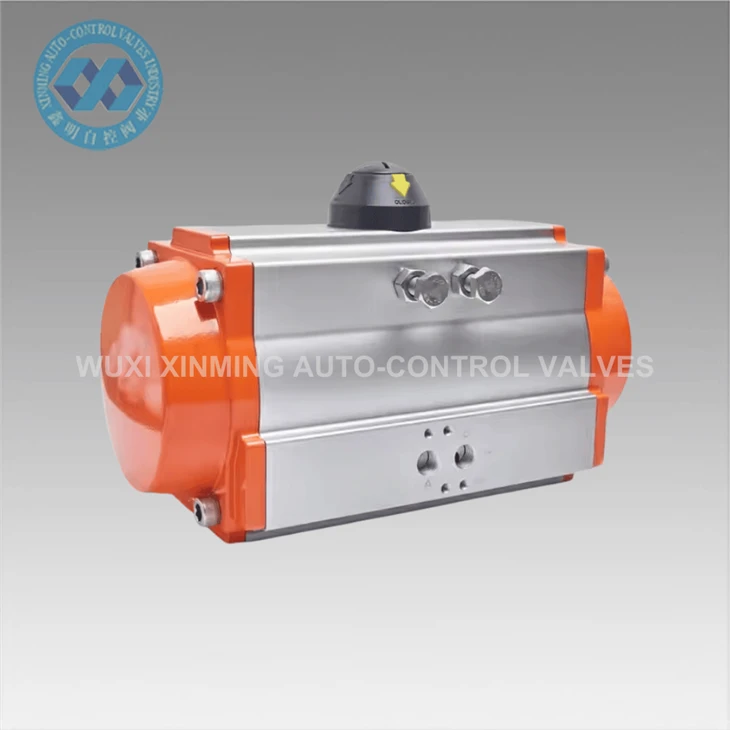

5. Pneumatic Actuator:
- The actuator is made of aluminum alloy or stainless steel, offering lightweight yet durable construction.
- Available in double-acting or spring-return configurations, providing flexibility for different operational needs.
- Equipped with positioners, limit switches, and solenoid valves for precise control and automation.
6. Seals and Gaskets:
- High-quality seals and gaskets ensure leak-proof operation and resistance to wear and tear.
- Compatible with a wide range of temperatures and pressures.
Working Principle
The Pneumatic Extended Welding Ball Valve operates on a simple yet highly effective mechanism, ensuring precise flow control and reliability:
1. Open Position:
- When the pneumatic actuator is activated, it rotates the stem and ball by 90 degrees.
- The ball's bore aligns with the pipeline, allowing media to flow through with minimal resistance.
2. Closed Position:
- When the actuator rotates the stem back by 90 degrees, the ball turns to block the flow, pressing tightly against the seats.
- The seats ensure a bubble-tight seal, preventing any leakage.
3. Flow Regulation:
- By partially rotating the ball, the valve can modulate flow, providing precise control for applications requiring variable flow rates.
