Structure Characteristics

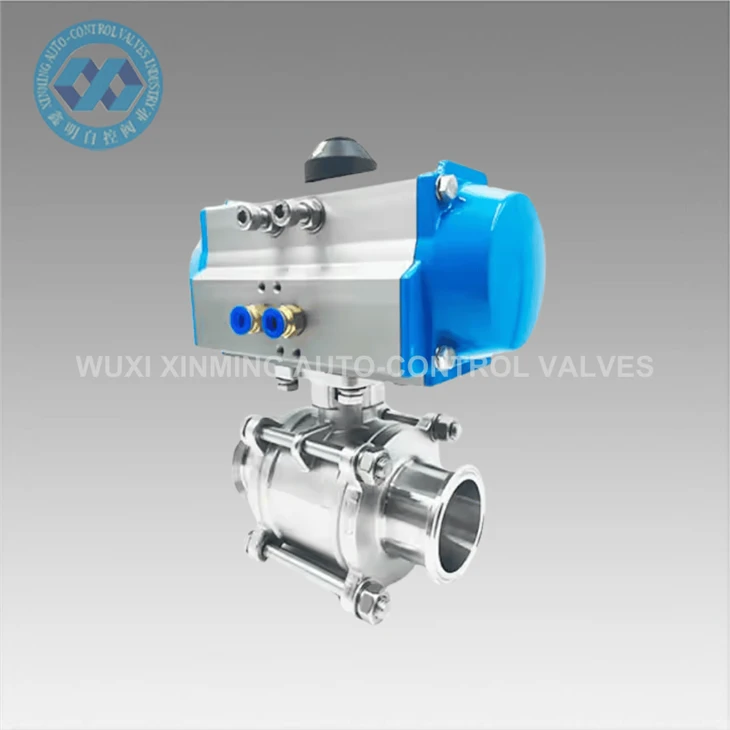

The sanitary stainless steel 304/316 ball valve is a high-performance valve designed for industries requiring strict hygiene standards, such as food and beverage, pharmaceuticals, and biotechnology. Its construction ensures cleanliness, durability, and resistance to corrosion. Key structural features include:
1. Valve Body:
- Made of stainless steel 304 or 316, known for its excellent corrosion resistance and durability.
- Designed with smooth, polished surfaces (typically Ra ≤ 0.8 µm) to prevent bacterial growth and facilitate easy cleaning.
- Available in tri-clamp, threaded, or welded end connections for easy installation and maintenance.
2. Ball:
- The ball is the flow-regulating component, made of stainless steel 304 or 316.
- Features a full-bore design (same diameter as the pipeline) to minimize pressure drop and allow for easy cleaning and maintenance.
- Precision-machined and polished for smooth operation and tight sealing.
3. Seats:
- Made of PTFE (Polytetrafluoroethylene) or other FDA-compliant materials for excellent chemical resistance and a tight seal.
- Designed to provide bubble-tight shut-off and low friction during operation.
4. Stem:
- The stem connects the ball to the actuator or handle and is made of stainless steel 304 or 316.
- Designed with a blow-out-proof structure to ensure safety and reliability.
- Equipped with seals to prevent leakage and contamination.
5. Seals and Gaskets:
- Made of FDA-approved materials such as EPDM, Viton, or silicone to ensure leak-proof operation and compatibility with sanitary standards.
- Resistant to high temperatures and chemical cleaning agents.
6. Actuator or Handle:
- Can be operated manually (via a handle) or automatically (using pneumatic or electric actuators).
- Sanitary actuators are designed with smooth surfaces and easy-to-clean components.
Working Principle
The sanitary stainless steel 304/316 ball valve operates on a simple yet effective principle, ensuring precise flow control and hygiene:
1. Open Position:
- When the actuator or handle rotates the stem 90 degrees, the ball turns to align its bore with the pipeline, allowing fluid to flow through with minimal resistance.
- The smooth surfaces of the ball and body prevent material buildup and ensure easy cleaning.
2. Closed Position:
- When the actuator or handle rotates the stem back 90 degrees, the ball turns to block the flow, pressing against the seats.
- The PTFE or elastomeric seats ensure a tight, leak-proof seal, preventing contamination and ensuring hygiene.
3. Flow Regulation:
- By partially rotating the ball, the valve can modulate flow, making it suitable for applications requiring precise control.
Advantages
- Hygienic Design: Smooth, polished surfaces and FDA-compliant materials prevent bacterial growth and ensure cleanliness.
- Corrosion Resistance: Stainless steel 304/316 construction makes the valve ideal for use with water, chemicals, and cleaning agents.
- Durability: Robust construction ensures long service life in demanding environments.
- Bubble-Tight Shut-Off: PTFE or elastomeric seats provide zero leakage, even under high-pressure conditions.
- Easy to Clean: Smooth surfaces and minimal contact points make the valve easy to sanitize and maintain.
- Versatility: Suitable for a wide range of media, including liquids, gases, and steam.
Applications
Sanitary stainless steel 304/316 ball valves are widely used in industries requiring high hygiene standards, including:
- Food and beverage processing
- Pharmaceutical and biotechnology
- Dairy and brewing
- Cosmetics and personal care products
- Water treatment and purification
-Summary
The sanitary stainless steel 304/316 ball valve is a reliable and efficient solution for industries requiring strict hygiene standards. Its smooth, polished design, corrosion resistance, and compatibility with FDA-approved materials make it ideal for applications in food, pharmaceuticals, and water treatment. With its durable construction, easy maintenance, and precise flow control, it is a preferred choice for sanitary applications.
