Product Description
In many industrial valve automation systems, safety is not only about controlling the valve-it is about ensuring the valve moves to a defined safe position when air supply is lost. This requirement is especially important in emergency shut-off, chemical processing, and process protection systems.

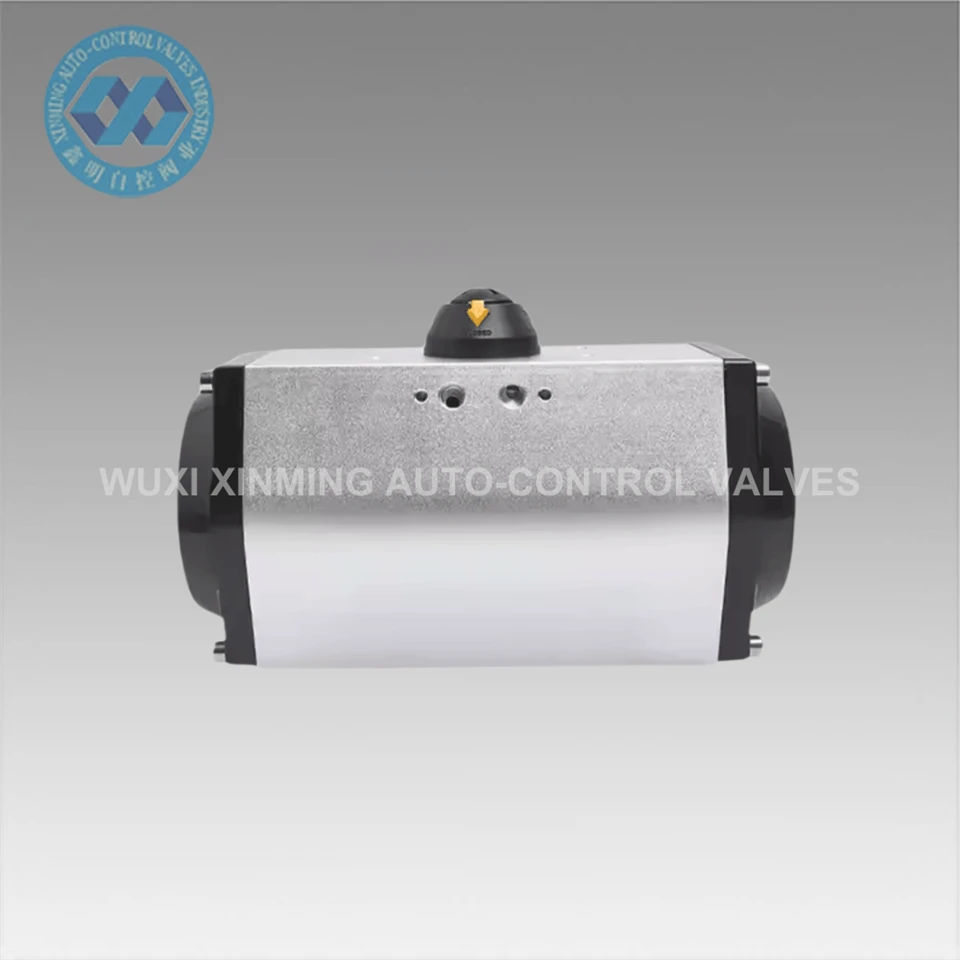

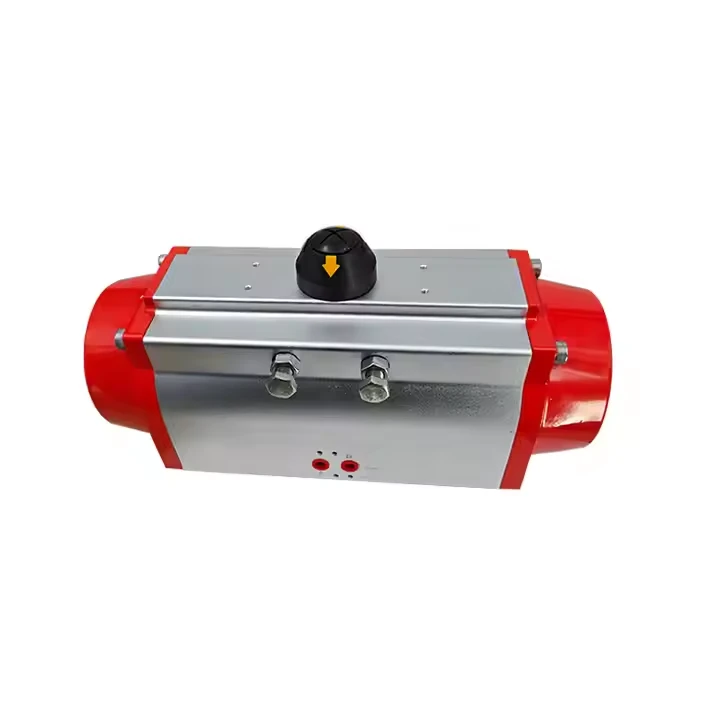

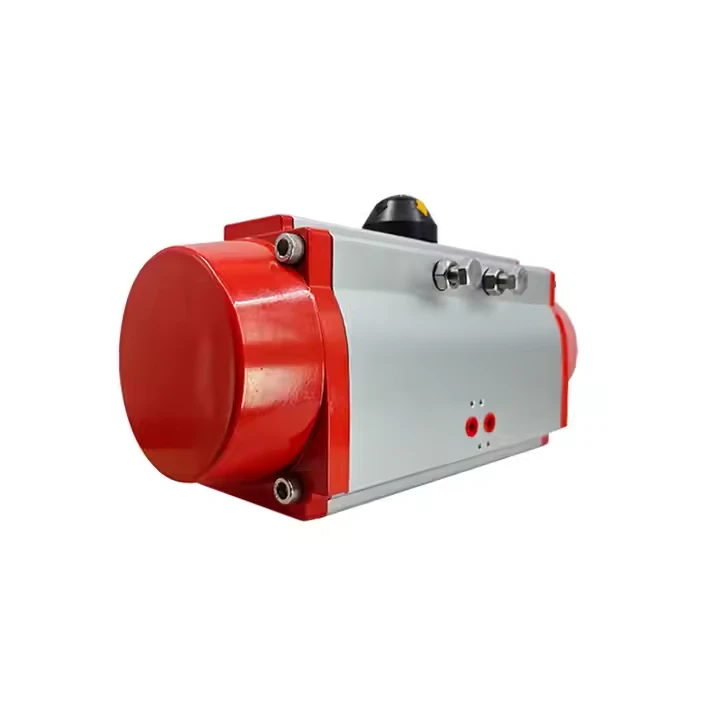

The XM Single Acting Pneumatic Valve Actuator is designed for fail-safe valve operation. It uses a spring return mechanism to ensure the valve automatically returns to a preset position when the compressed air is cut off. This makes it suitable for applications where system safety and process stability are critical.
Technical Parameters
| name | single acting pneumatic valve actuator |
| weight (kg) | 12.8 |
| size | 32mm~400mm |
| brand name | XM |
| material | aluminum alloy |
| color | gray, silver, white, black |
| Working medium | Clean dry Air |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| warranty | 1 Year |
| Certificate | CE, ATEX, ISO, SIL3 |
| Packaging & Shipping | 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport |
| Our Services | delivery within 5 days ,factory sales ,ISO,ATEX,CE,EAC |
Features
- Spring return (single acting) fail-safe design
- Compact aluminum alloy actuator body
- Reliable torque output for quarter-turn valves
- Fast response with clean dry air operation
- Suitable for automatic shut-off systems
- ISO 5211 mounting for easy valve installation
- Long cycle life with stable performance
Applications
- Suitable for fail-safe and emergency control systems:
- Emergency shut-off systems
- Chemical processing pipelines
- Oil & gas safety valves
- Water treatment control systems
- Industrial automation lines
- Process safety isolation systems
OEM & Supply Capability
XM supports direct factory supply with:
- Fast delivery within 5 days
- OEM branding and customization
- CE, ATEX, ISO, SIL3 certified production
- Export packaging suitable for sea freight
- Foam + carton + plywood case protection system
