XM series pneumatic actuators are studied, developed and designed on the basis of comprehensive application of newtechnologies, new materials, new processes and innovative concepts at home and abroad, havina folowing characteristics:
-Fully in line with intermational regulations: 1s05211,DIN3337 and VDI/VDE-3845, NAMUR standards.
-To extruded high-strength aluminum cylinder, the inner surface is finely ground and hard anodized, with long service life, low frictioncoefficient and quick action.
-The beautiful compact modern shape and multiple specification make the selection more economical.
-All active surfaces adopt high quality bearings with low friction, long life and no noise.

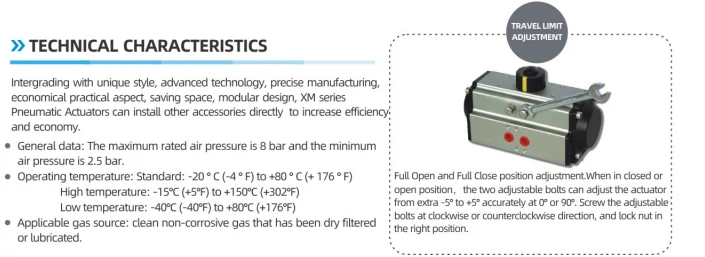

-Two independent stroke adjustment mechanisms are installed to adjust extra +5° at full open or full closed position easily

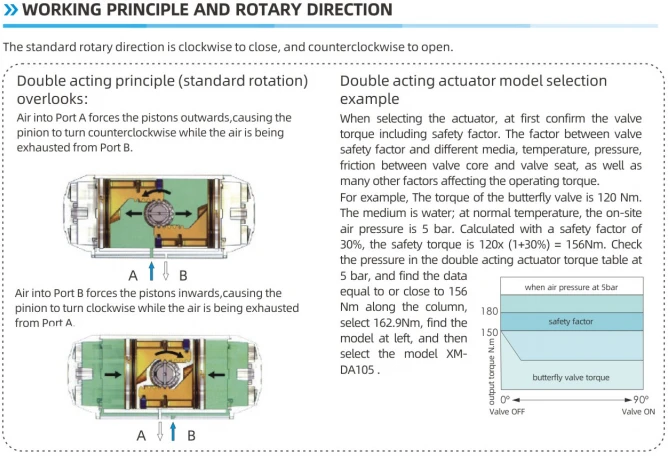

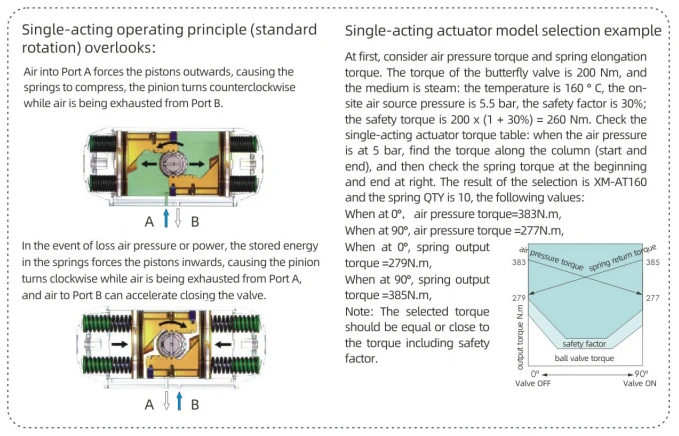

-Actuators with the same external structure are available in double-acting and single-acting (spring-return) versions, Single-acting
version have normal-closed and normal-open type
-The NAMUR standard muti-function indicator indicates the position visually, where can install and output all accessories.
-The pre-compression load spring is safe and convenient to install and disassemble.
-The piston and end cap are made of die-cast aluminum alloy with high strength and light weight.
-Change the seal O rings material can apply for high-temperature or low-temperature worksite.
-Solenoid valves can be installed directly without a connecting plate.
