In industrial automation systems, many companies frequently encounter problems in valve control, such as slow response speed, insufficient torque, low automation level, and frequent maintenance. Especially in pipeline systems requiring frequent valve opening and closing, unstable actuator performance not only affects production efficiency but may also pose safety hazards.
The Angle Travel Pneumatic Actuator is designed to solve these problems, providing stable, fast, and reliable automated control for various 90° rotary valves.
The Angle Travel Pneumatic Actuator is an actuator driven by compressed air. Through an internal transmission mechanism, it converts pneumatic energy into angular rotational motion, thereby achieving valve opening and closing.
This actuator is mainly used to control angular stroke valves such as ball valves, butterfly valves, and plug valves. It features a compact structure, stable operation, and fast response, making it an important control device in industrial automated pipeline systems.

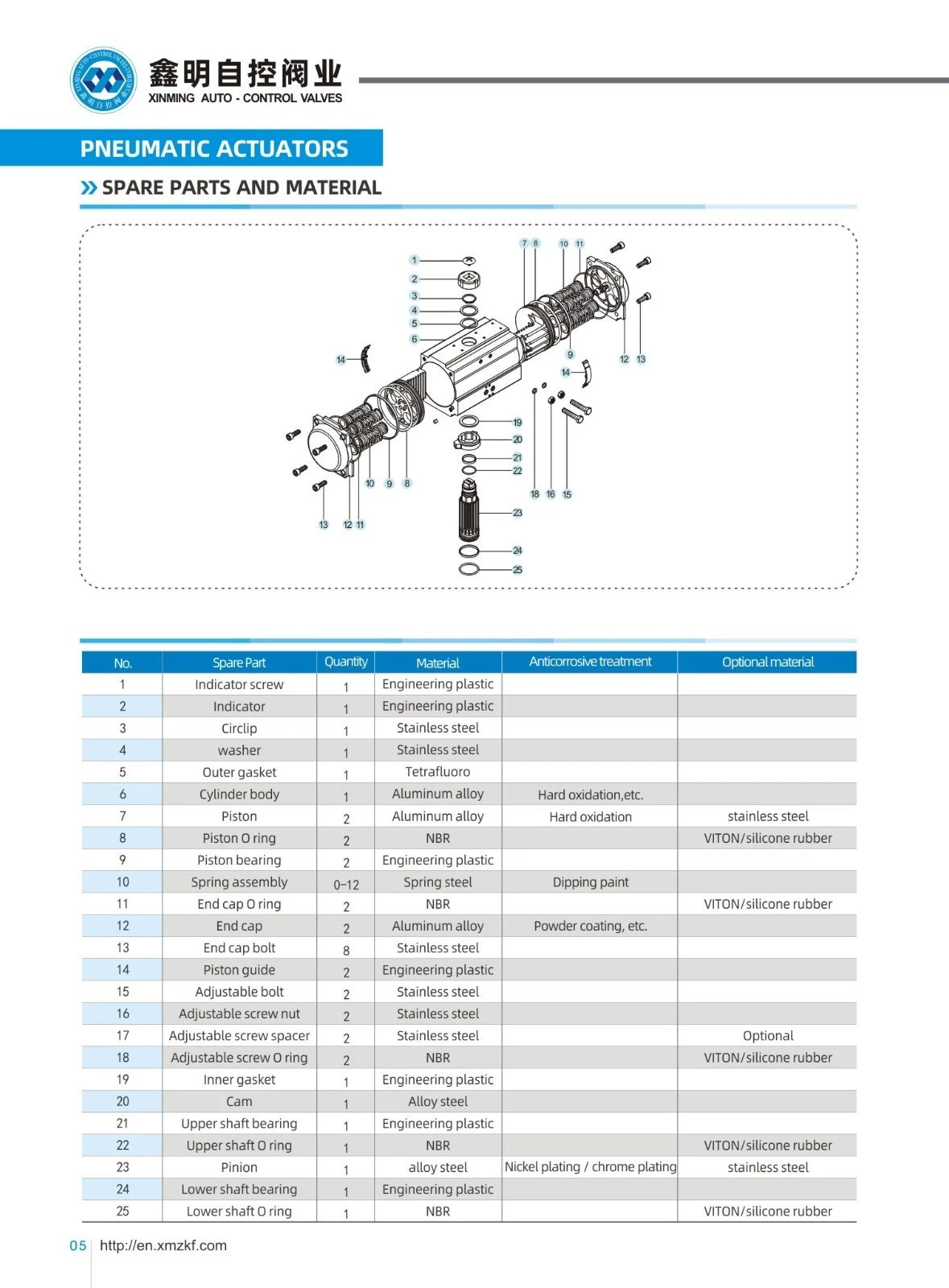

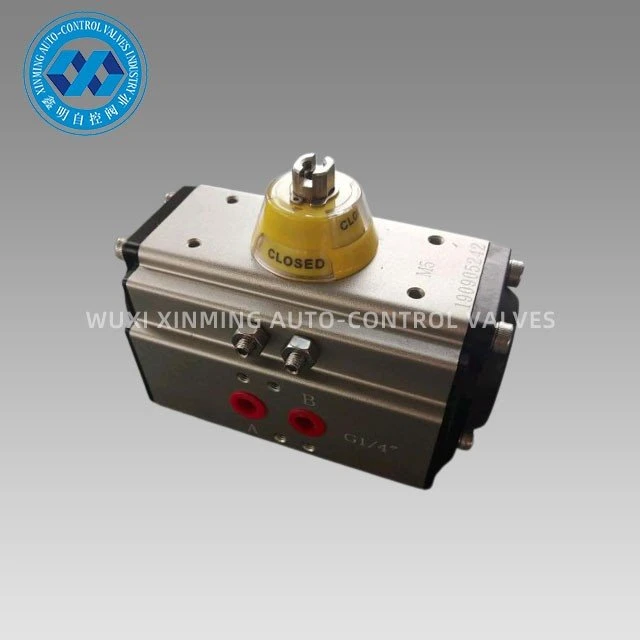

XM series Angle Travel Pneumatic Actuator are used to control butterfly valves, ball valves, and machinery with rotary movement automatically. Precision die-casting aluminum alloy double-rack pistons with hard oxidation treatment improve rotary angle accuracy and duty life. The actuator body with hard-oxidation can avoid the scratch effectively.
Product Specifications
|
Product name |
Angle Travel Pneumatic Actuator |
|
Material |
Stainless Steel / Aluminum alloy |
|
Certificate |
ISO9001: 2015, CE, ATEX, SIL3 |
|
Function |
ON / OFF |
|
Application |
Automation Ball valve, Automation Butterfly valve |
|
Temperature Range |
-40~150 degree C |
|
Delivery time |
within 7 days normally. |
|
Shipping port |
Shanghai, Ningbo, etc. |
|
Package detail |
each Carton inside, plywood case (ocean shipment) or pallet (air shipment) outside |
|
Rotary Angle |
0~90 degree/ 0~120degree/ 0~180degree |
|
Structure |
rack and pinion rotary actuator |
|
Surface Treatment |
hard anodization |
|
Working Temperature |
Normal Temperature: -20°C ~ 80°C (-4°F ~ 176°F) |
|
Connection |
NAMUR, ISO5211 and DIN3337 |
|
Cap Color |
support customized |
|
Type |
double acting and single acting |
|
Indicator |
Support customized |
|
Install Accessories |
Limit Switch Box / Solenoid Valve / Valve Positioner, etc. |
|
valve Accessories |
Manual Override Gearbox |
|
Piston |
Hard Anodizing |
|
Medium |
Water, Oil, Air or corrosive environment |
|
Model |
GT32/AT40/AT52/AT63/AT75/AT83/AT92/AT105/AT125/AT140/AT160/AT190 |
Supply Ability
We have a sufficient stock of standard models and can deliver them quickly.
Supports OEM/ODM customization, with the fastest completion of small-batch customized production within 7 days.
Packing & Delivery
Packing detail:
1). separate carton with foam packing inside
2) plywood case for ocean shipment
3) Plywood pallet for air shipment
Port of departure: Shanghai, China
Lead Time:
|
Quantity(Units) |
1-50 |
51-1000 |
1001-10000 |
＞10001 |
|
Est. Time(days) |
Goods in stock |
7 |
20 |
To be negotiated |
Advantage
All process are one-time-forming by CNC to ensure the process accuracy and duty life.

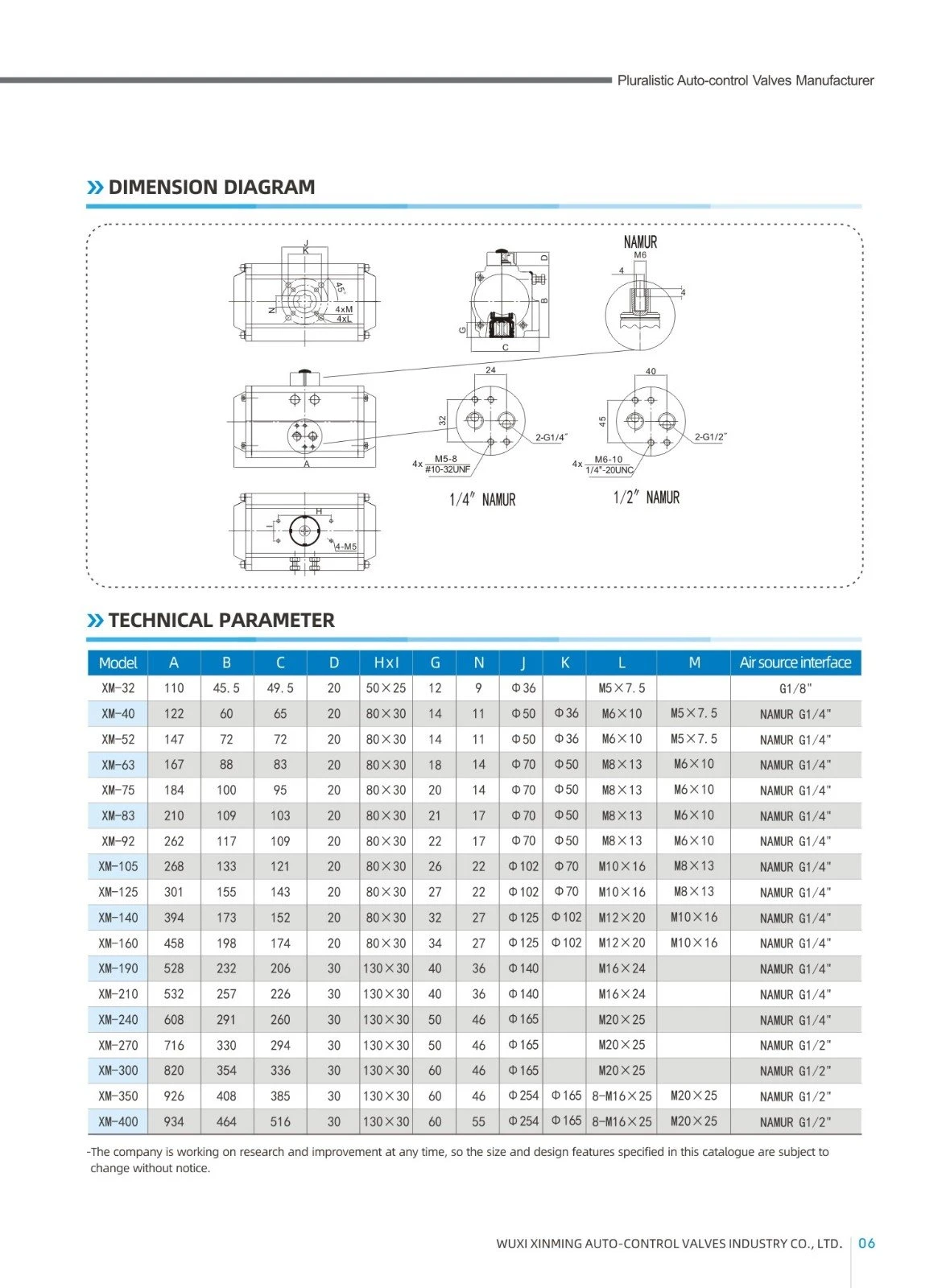

Angle Travel Pneumatic Actuator Dimensions
XM DOUBLE ACTING ACTUATOR OUTPUT TORQUE TABLE
|
Model |
Input air pressure(unit:bar) |
|||||
|
3 |
4 |
5 |
6 |
7 |
8 |
|
|
Air pressure output torque(N.m) |
||||||
|
XM-DA32 |
4.6 |
6.1 |
7.6 |
9.2 |
10.7 |
12.2 |
|
XM-DA40 |
7.2 |
9.6 |
12.0 |
14.4 |
16.8 |
19.2 |
|
XM-DA52 |
12.0 |
16.0 |
20.0 |
24.0 |
28.0 |
32.0 |
|
XM-DA63 |
21.7 |
28.9 |
36.0 |
43.4 |
50.6 |
57.8 |
|
XM-DA75 |
30.0 |
40.0 |
50.0 |
60.0 |
70.0 |
80.0 |
|
XM-DA83 |
46.8 |
62.4 |
78.0 |
93.6 |
109.2 |
124.8 |
|
XM-DA92 |
67.6 |
90.1 |
112.6 |
135.2 |
157.7 |
180.2 |
|
XM-DA105 |
97.7 |
130.3 |
162.9 |
195.5 |
228.0 |
260.6 |
|
XM-DA125 |
150.5 |
200.6 |
250.8 |
301.0 |
351.1 |
401.3 |
|
XM-DA140 |
260.7 |
347.6 |
433.8 |
521.4 |
608.3 |
695.2 |
|
XM-DA160 |
397.2 |
529.6 |
662.0 |
794.4 |
926.8 |
1059.2 |
|
XM-DA190 |
640.2 |
853.6 |
1067.0 |
1280.4 |
1493.8 |
1707.2 |
|
XM-DA210 |
798.0 |
1064.0 |
1330.0 |
1596.0 |
1862.0 |
2128.0 |
|
XM-DA240 |
1154.3 |
1539.0 |
1923.8 |
2308.5 |
2693.3 |
3078.0 |
|
XM-DA270 |
1755.0 |
2340.0 |
2924.0 |
3510.0 |
4095.0 |
4680.0 |
|
XM-DA300 |
2291.4 |
3055.2 |
3819.0 |
4582.8 |
5346.6 |
6110.4 |
|
XM-DA350 |
3426.0 |
4568.0 |
5710.0 |
6852.0 |
7994.0 |
9136.0 |
|
XM-DA400 |
4872.0 |
6496.0 |
8120.0 |
9744.0 |
11368.0 |
12992.0 |
