The primary purpose of Scotch fork actuators is to automate valves. They can effectively transform linear motion into rotational motion. A slider that moves inside a fixed scotch fork is the fundamental component of the scotch fork actuator. The actuator cannot function without the interaction between the slider and the scotch fork. Rotating motion is produced as the piston moves, pushing the slider to move along the scotch fork. A smooth and controllable drive is made possible by this architecture.
Playing Two Parts Unlike conventional rack and pinion actuators, the Scotch Yoke Pneumatic Actuator will not experience torque attenuation due to its constant output torque, guaranteeing steady functioning even after years of use. Our products can function dependably in harsh conditions ranging from -40°C to 150°C, are certified by ISO and ATEX, are constructed of military-grade materials, and come in specific versions like corrosion-resistant and explosion-proof to satisfy various industrial demands.

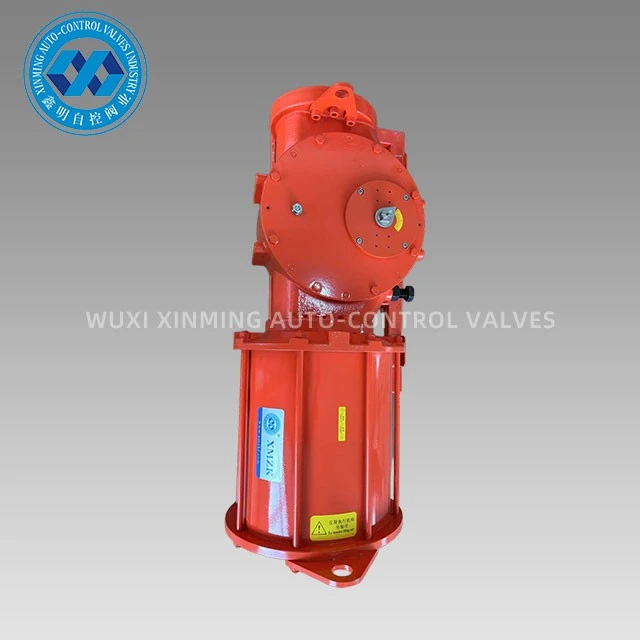

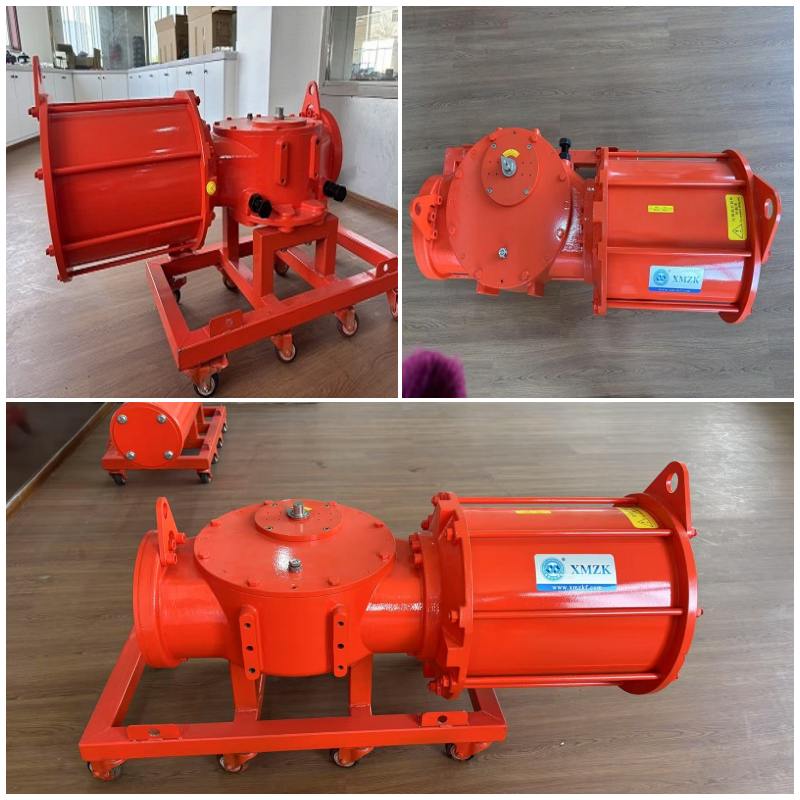

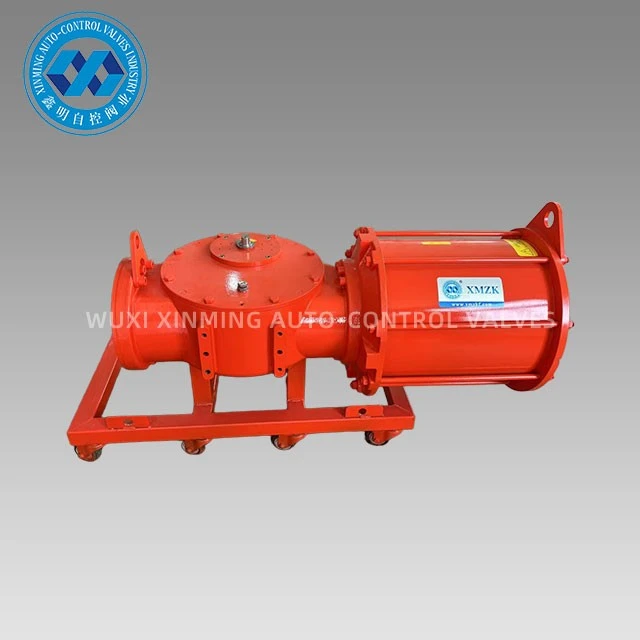

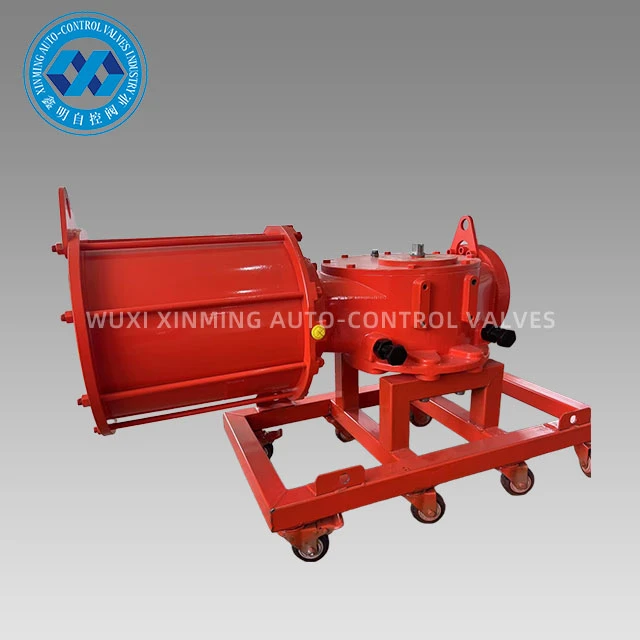

| Product name | Double Acting Scotch Yoke Pneumatic Actuator |
| Warranty period | 1 year |
| Origin | China |
| Working medium | Air or gas |
| Certificate | ISO5211, CE |
| Color | Customized according to customer needs |
| Video factory inspection | Available |
| Mechanical test report | Available |
| Brand | XINMING |
| Working pressure | 3-8 bar |
| Body material | Aluminum Alloy |
| Function | Quarter-turn actuator Valve |
| Application | ball valves, butterfly valves, plug valves, and other valves |
| Applicable ambient temperature |
Standard -20℃~80℃ Low temperature -40℃~80℃ High temperature -15℃~150℃ |
| OEM | available |
| Features | Heavy-duty double-acting scotch fork Long service life and minimal friction The mounting flange conforms with ISO 5211 standards and is certified by ATEX, EAC, CE, SIL3, and ISO9001:2015. High-end goods of superior quality with a comprehensive certification system Every product is given a tracking code for easy identification and tracking, and all are rigorously tested before leaving the factory. spring module, housing drive module, pneumatic module, etc. Because all modules can be put together and swapped out, the product's performance is more reliable, and maintenance is easier. |
| Our Service |
|
| Our Advantages |
|
