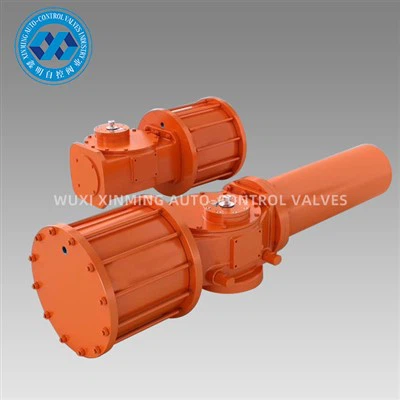

Spring Return Scotch Yoke Pneumatic Actuator

The Spring Return Scotch Yoke Pneumatic Actuator is a high-reliability drive device designed for industrial valve control. It uses a unique Scotch Yoke transmission mechanism to convert compressed air power into 90° rotational motion, and realizes automatic reset function through a built-in strong spring, ensuring that the valve quickly returns to a safe position (fully open or fully closed) in the event of air failure or emergency. The modular design of the Spring Return Scotch Yoke Pneumatic Actuator supports the ISO 5211/NAMUR standard interface, can be adapted to various types of ball valves and butterfly valves, and can be equipped with limit switches, solenoid valves and other accessories for automatic control. Compared with traditional rack and pinion actuators, the scotch yoke structure has higher mechanical efficiency and longer service life, and is an ideal choice for valve control under hazardous conditions. The scotch yoke construction is an excellent option for valve control in hazardous situations because it has a longer service life and higher mechanical efficiency than conventional rack and pinion actuators.

Product Features：

1. There are two types of XM scotch yoke pneumatic actuators: symmetrical and tilted, corresponding to two different output torque characteristics. The tilted scotch yoke actuator has high starting torque and low operating torque, suitable for the control of butterfly valves. The symmetrical scotch yoke actuator has a more balanced torque curve and is mainly suitable for the control of ball valves and plug valves.
2. The O-rings encapsulated with dual materials (rubber and PFA) can be applied to various temperatures and working conditions.
The double O-ring and bearing design ensure the stability and reliability of the modular cylinder.
3. The output torque of the XM spring return type can reach more than 140,000Nm, and the output torque of the double-acting type can reach more than 250,000Nm.
Working pressure: 0.3-0.6MPa.
4. Both the center body module and the cylinder module are made of ductile iron or carbon steel to ensure sufficient strength. The overall structure is compact, and the design is beautiful and coordinated. The yoke rod and piston ensure the best torque output.
5. Low friction, long life composite materials avoid direct metal-to-metal contact, making maintenance and replacement quick and easy.
6. The output shaft complies with the latest ISO5211 and NAMUR standards. Its size can be customized, and stainless steel is optional.
7. The NAMUR standard position indicator facilitates the installation of accessories such as limit switch boxes and positioners.
8. Two independent angle adjustable bolts can adjust the valve stroke from -6° to 96°, which helps to extend the service life of the valve seat.

The principle is that：

compressed air enters the chamber to push the piston to do linear motion, and by transmission structures of the yoke pin and yoke groove, the piston's linear motion will be converted into the yoke's rotary motion, and drive the output shaft to rotate, thus achieving the control of the valve.
