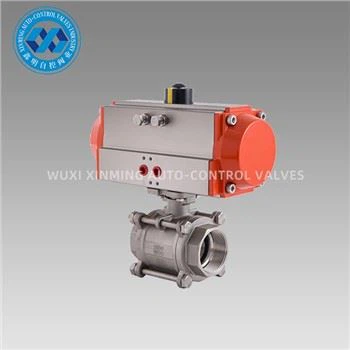

The pneumatic control ball valve is a flagship product of WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD., integrating a high-precision ball valve with an intelligent pneumatic actuator. It achieves precise adjustment from 0-90° with a 4-20 mA or 0.5-6 bar signal, with a repeatability error ≤ ±0.5%, providing reliable and rapid shut-off and regulation functions for process automation. The key phrase "pneumatic control ball valve" is integrated throughout the design, ensuring rapid, safe, and zero-leakage operation with every opening and closing.
Our Advantages:
Modular Design
Different actuators can be selected for the same valve body, reducing delivery time by 30%.
Low Operating Costs
Air-driven, energy consumption is only 1/3 of electric; automatic reset in case of air source failure.
High Sealing Life
After 500,000 cycle tests, the leakage rate is still better than Class VI.
Fireproof and Anti-static
Complies with API 607/ISO 10497, ensuring safety in flammable and explosive environments.
Immediate Response
Opening and closing ≤1 second, adjustment linearity >95%, significantly improving system control accuracy.
Technical Specifications:
• Diameter Range: DN15-DN300 (1/2"-12")
• Pressure Rating: PN16-PN63 / Class150-600
• Temperature Range: -40℃~+220℃ (High/Low Temperature Options Customizable)
• Valve Body Material: WCB, CF8, CF8M, Duplex Steel
• Sealing Material: PTFE, RTFE, PEEK, Metal Hard Seal
• Actuator: Double-acting/Spring Return, Protection Rating IP66/IP67
• Connection Methods: Flange, Threaded, Welded, Wafer
• Leakage Rating: ANSI Class VI / Zero Bubble Class
Product Applications:
Oil & Gas: Emergency shut-off at platform wellheads and pipelines
Chemical Industry: Automatic regulation of reactor feed and acid/alkali storage tanks
Power Industry: Boiler feedwater and cooling tower flow control
Food & Pharmaceutical: CIP/SIP cleaning systems, compliant with FDA/GB 4806
Paper & Textile: Dye proportioning and steam temperature control
New Energy: High-purity medium control for hydrogen and lithium battery slurries

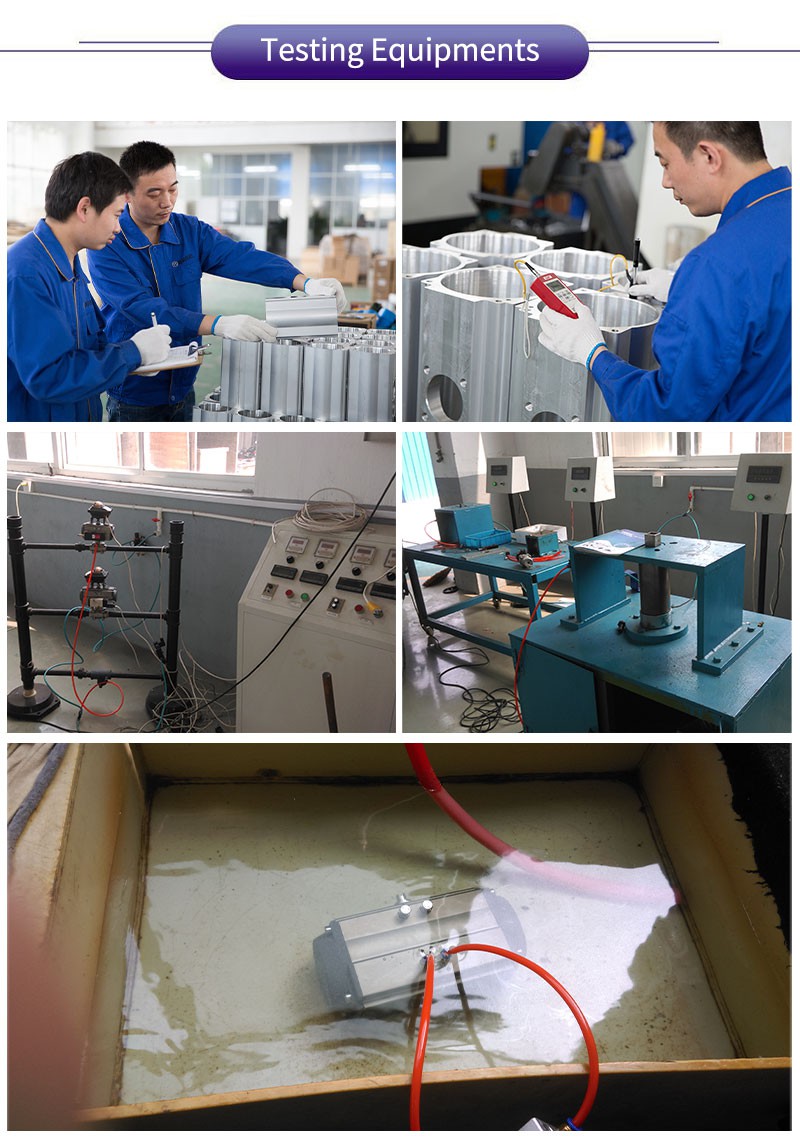

Quality Control:
→ Incoming material spectroscopy + low-temperature impact dual testing
→ One-time molding by five-axis machining center, dimensional tolerance ≤0.02 mm
→ 100% 1.5 times PN housing strength + 1.1 times low-pressure airtightness test
→ Actuator stroke calibrated by laser tracker, linearity report archived for 5 years
→ Third-party API 6D, CE, ISO 9001 audits and original reports provided with shipment
Packaging & Delivery:
The valve body and actuator are each wrapped with VCI anti-rust film, and the outer box is made of five layers of reinforced corrugated board; secured with wooden pallets and plastic steel straps, suitable for sea transport at -50℃ to +70℃. The shipping mark includes the project number and QR code; scan the code to download the warranty certificate and test video.
After-Sales Service:
• 18-month warranty, free replacement for manufacturing defects
• 24-hour response and 72-hour on-site arrival in China; 48-hour video diagnostics overseas, spare parts shipped directly via DHL
• Lifecycle documentation: list of vulnerable parts, maintenance videos, online training
• Annual inspections and performance calibrations to ensure stable valve operation for 10+ years
WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD., established in 1998, covers an area of 38,000 square meters and has an annual production capacity of 120,000 sets of pneumatic control ball valves and related actuators. We possess machining centers from DMG Germany and MAZAK Japan, as well as an API 6D fluid laboratory. Our R&D team consists of 26 people and we hold 42 patents. Our products are exported to 56 countries, providing valve solutions for global projects such as Shell, BASF, and Sinopec. Choose XINMING, choose reliability and efficiency!
