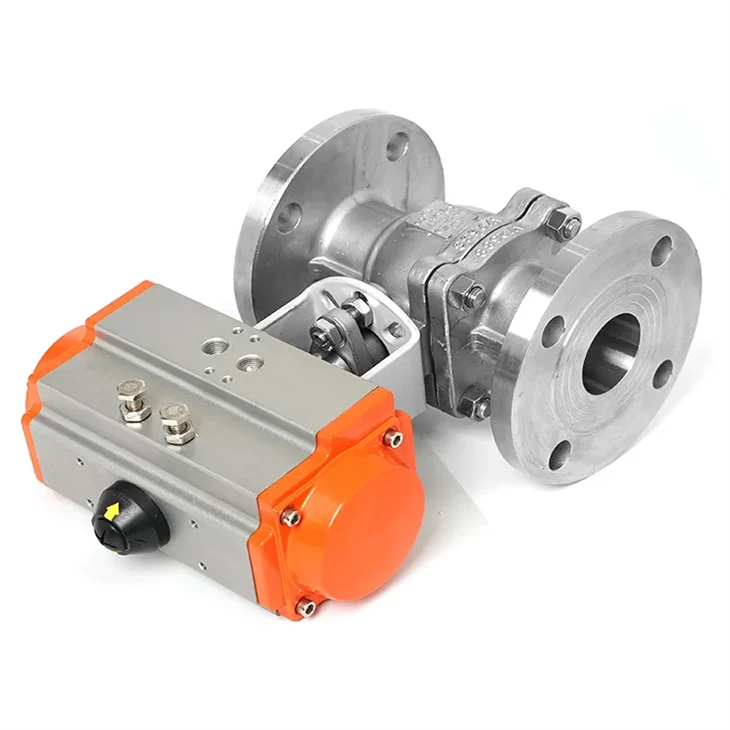

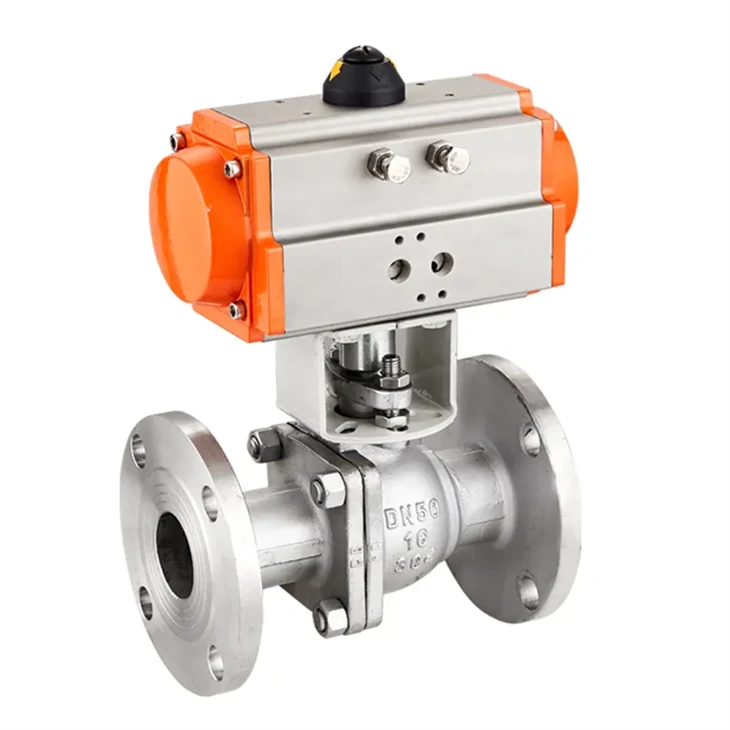

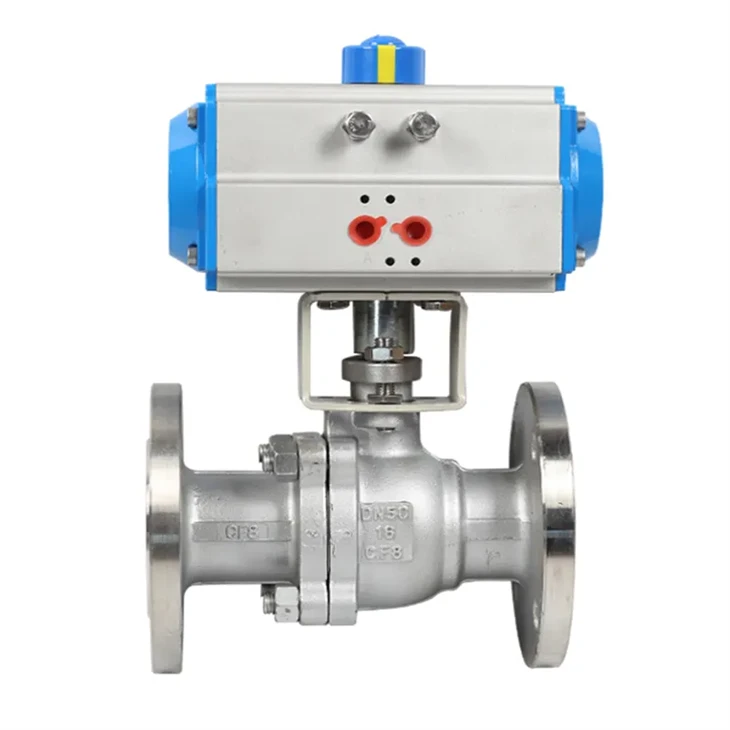

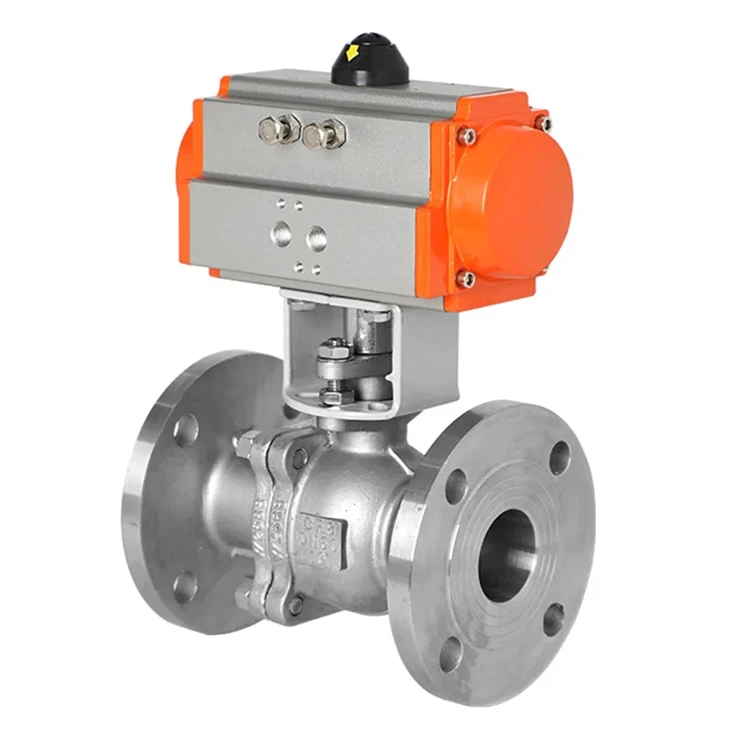

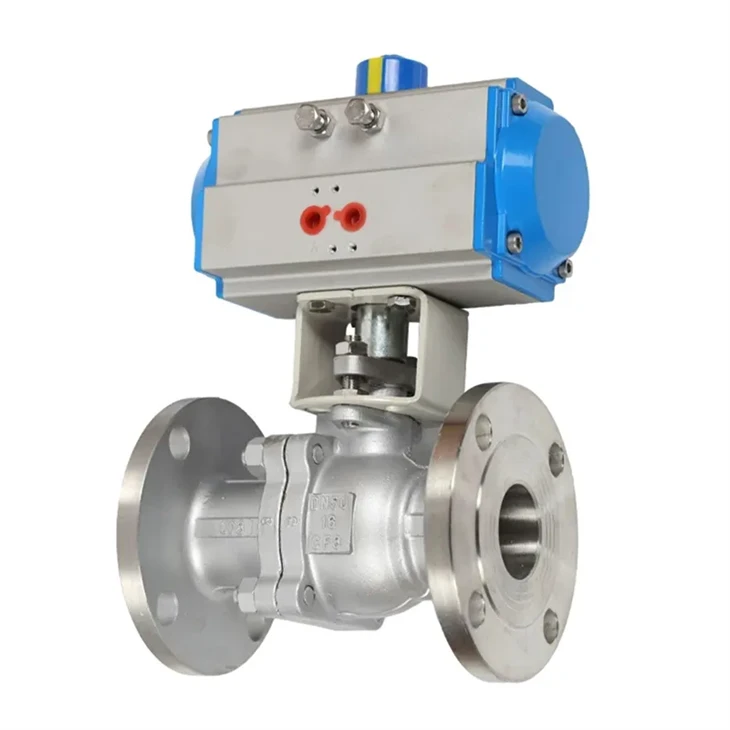

Stainless Steel Flanged Ball Valve

The stainless steel pneumatic flanged ball valve is an automated valve that combines stainless steel material, a pneumatic actuator, and flange connections. Its core function is to quickly cut off or regulate the medium in the pipeline through pneumatic control, and it is mainly used for the rapid on - off or flow regulation of media (such as liquids, gases, and slurries). Thanks to its corrosion resistance, rapid response, and high reliability, the stainless steel pneumatic flanged ball valve has become a key component in industrial automation.

Send Inquiry

Description

This Stainless Steel Flanged Ball Valve is a high-performance industrial valve designed for harsh working conditions, combining stainless steel, pneumatic actuator, flange connection, and high temperature resistance.

Product Features
1. The valve body of Stainless Steel Flanged Ball Valve is made of high-quality stainless steel
2. It has excellent corrosion resistance and mechanical strength
3. Special design can withstand high temperature conditions
4. High temperature sealing system ensures good sealing under thermal cycles
5. Stainless Steel Flanged Ball Valve is equipped with high-performance pneumatic actuator
6. Fast switching can be achieved
7. Single-acting or double-acting type can be selected
8. Standard flange connection
9. Easy installation and reliable connection
10. Full-bore or reduced-bore design is optional
11. Low flow resistance, high flow coefficient
12. Bidirectional sealing performance

Working principle
1. The pneumatic actuator receives the air source signal (usually 0.4 - 0.7 MPa compressed air), converts the air pressure into mechanical torque through the piston or diaphragm assembly, and drives the ball to rotate around the valve stem.
2. When the through hole of the ball is parallel to the pipeline axis, the valve is fully open and the flow resistance is minimal; when the through hole of the ball is perpendicular to the pipeline axis, the valve is fully closed, the sealing surface fits tightly, and the medium is cut off.
3. After selecting the positioner, proportional regulation can be achieved (for example, using a 4 - 20 mA signal). The flow rate can be precisely controlled by adjusting the rotation angle of the ball (0° to 90°).
Please contact us if you need more detailed selection information or working condition adaptation suggestions for the Stainless Steel Pneumatic Control High-temperature Resistant Flanged Ball Valve. We can provide specific parameters (media, temperature, pressure, etc.) for further customization.

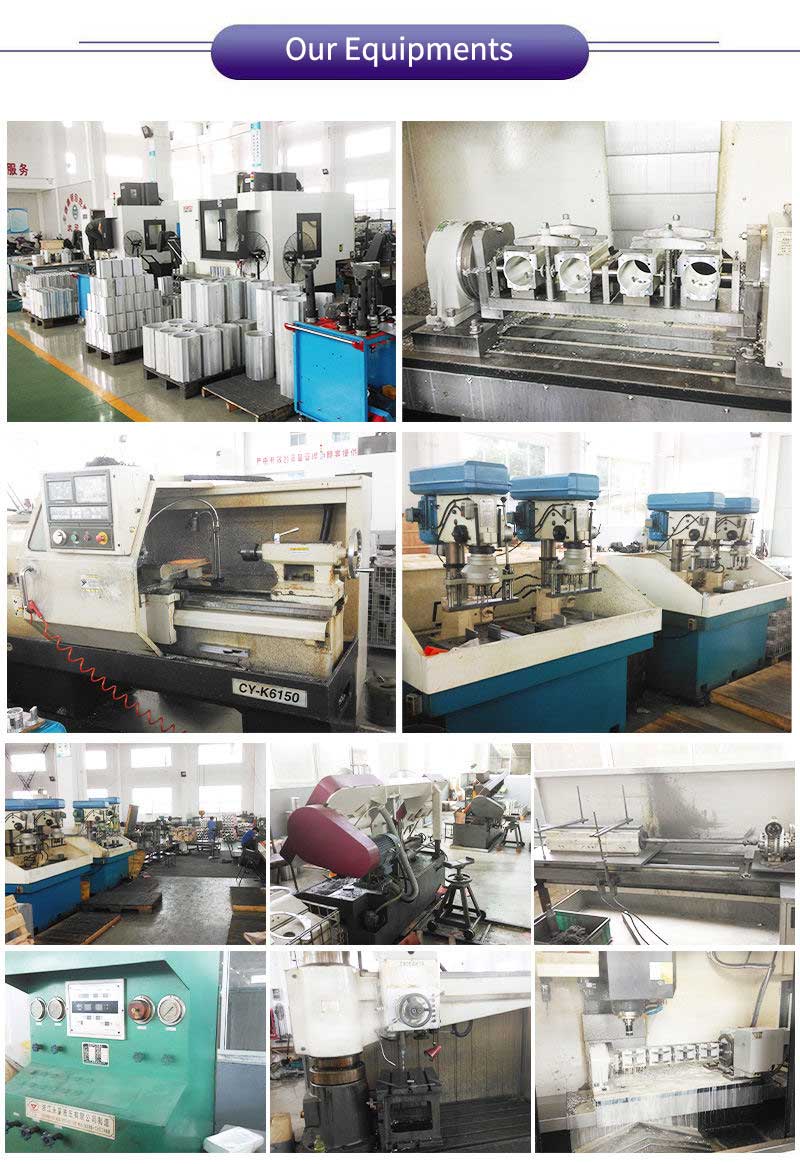

Production Equipment Diagram
