When it comes to the WCB Butterfly Valve, one question that often arises is: What is the weight of a WCB Butterfly Valve? As a supplier of WCB Butterfly Valves, I'm here to provide you with comprehensive insights into this topic.
Understanding the WCB Butterfly Valve
Before delving into the weight aspect, let's first understand what a WCB Butterfly Valve is. WCB is a type of carbon steel casting material. The valve gets its name from its disc - shaped closure element that rotates around an axis to control the flow of fluid. Butterfly valves are widely used in various industries such as water treatment, chemical processing, and power generation due to their compact design, quick operation, and relatively low cost.
Factors Affecting the Weight of a WCB Butterfly Valve
The weight of a WCB Butterfly Valve is not a fixed value; it is influenced by several factors.
Size
The most obvious factor is the size of the valve. Larger valves generally weigh more than smaller ones. This is because a larger valve requires more material for its construction. For example, a 2 - inch WCB Butterfly Valve will weigh significantly less than a 12 - inch one. The increase in size means more metal is needed for the body, disc, and other components of the valve.
Pressure Rating
Valves with higher pressure ratings need to be more robust to withstand the greater forces exerted on them. As a result, they are usually heavier. A WCB Butterfly Valve designed for a pressure rating of 150 psi will be lighter than one rated for 300 psi. To achieve the necessary strength, the valve body and other critical parts may be thicker or made of more material, which adds to the overall weight.
Design and Configuration
The design of the valve also plays a role in determining its weight. Some valves may have additional features such as a lined body or a specific type of seat design. A valve with a PTFE - lined body, for instance, may have a different weight compared to a non - lined one. Additionally, the configuration of the valve, whether it is a wafer - type or lug - type, can affect its weight. Lug - type valves typically have additional lugs for bolting, which adds a small amount of extra weight.
Typical Weight Ranges
To give you a better idea of the weight of WCB Butterfly Valves, here are some typical weight ranges based on common sizes and pressure ratings.
For small - sized valves (2 - 4 inches) with a 150 psi pressure rating, the weight can range from around 10 to 30 pounds. As the size increases to 6 - 8 inches, the weight may be in the range of 30 to 80 pounds. For larger valves (10 - 12 inches) with the same pressure rating, the weight can be anywhere from 80 to 150 pounds.
If we consider higher pressure ratings, say 300 psi, a 4 - inch valve may weigh around 40 pounds, while a 10 - inch valve could weigh over 200 pounds.
It's important to note that these are just approximate values, and the actual weight can vary depending on the specific design and manufacturer of the valve.
Importance of Knowing the Weight
Understanding the weight of a WCB Butterfly Valve is crucial for several reasons.
Installation
During the installation process, knowing the weight helps in determining the appropriate lifting equipment. If the valve is too heavy for the lifting device being used, it can lead to safety hazards. For example, if a crane with an insufficient load - capacity is used to install a large and heavy valve, it may tip over, causing damage to the valve and potentially endangering the workers.
Piping System Design
The weight of the valve also affects the design of the piping system. The pipes need to be able to support the weight of the valve without excessive stress. If the valve is too heavy for the pipes, it can cause sagging or even pipe failure over time. Engineers need to take the valve weight into account when calculating the support requirements and the overall structural integrity of the piping system.
Our Product Offerings
As a WCB Butterfly Valve supplier, we offer a wide range of valves to meet different customer needs. Our valves are made from high - quality WCB material, ensuring durability and reliable performance.
We have Actuator Pneumatic Damper Valve which provides precise control of the fluid flow. These valves are designed with advanced pneumatic actuators that offer quick and accurate operation.
Our Pneumatic Actuator Flange Butterfly Vlave is another popular product. It combines the benefits of a flange - type connection with a powerful pneumatic actuator, making it suitable for a variety of industrial applications.

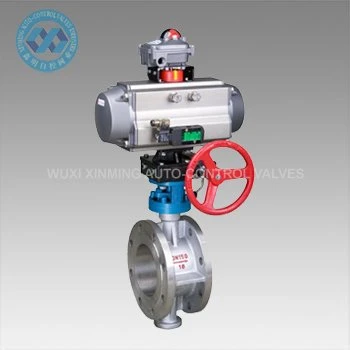

For those who require corrosion - resistant valves, we offer Stainless Steel Butterfly Valve. These valves are made from high - grade stainless steel, providing excellent resistance to rust and chemical attack.
Contact Us for Purchase and Negotiation
If you are in the market for WCB Butterfly Valves or any of our other products, we encourage you to contact us. We have a team of experts who can provide you with detailed information about our products, including the weight, size, and performance characteristics. Whether you need a single valve for a small project or a large quantity for an industrial plant, we can meet your requirements.
We are committed to providing high - quality products at competitive prices. Our goal is to establish long - term partnerships with our customers by offering excellent customer service and reliable products. So, don't hesitate to reach out to us for purchase and negotiation.
