Can WCB Butterfly Valve be used in a vacuum environment?
As a supplier of WCB butterfly valves, I often receive inquiries from customers about the applicability of these valves in various environments, especially in vacuum conditions. This blog post aims to provide a comprehensive analysis of whether WCB butterfly valves can be used in a vacuum environment.
Understanding WCB Butterfly Valves
WCB (Carbon steel, low carbon steel casting for moderate and high-temperature service) is a common material used in the manufacturing of butterfly valves. Butterfly valves are quarter-turn valves that use a disc-shaped closure element to control the flow of fluid through a pipe. The disc rotates around a shaft, allowing for quick opening and closing. WCB butterfly valves are known for their durability, strength, and relatively low cost, making them a popular choice in many industrial applications.
Characteristics of Vacuum Environments
A vacuum environment is characterized by a pressure lower than the atmospheric pressure. In industrial applications, vacuums can range from low vacuums (near atmospheric pressure) to high vacuums (extremely low pressures). Different vacuum levels pose different challenges to the performance of valves, including sealing, material compatibility, and the ability to withstand pressure differentials.
Factors Affecting the Use of WCB Butterfly Valves in Vacuum Environments
1. Sealing Performance
One of the most critical factors when using a valve in a vacuum environment is its sealing performance. WCB butterfly valves typically use elastomeric seals to provide a tight seal between the disc and the valve body. In a vacuum, the pressure differential across the valve can cause the elastomeric seals to deform. If the deformation is excessive, it can lead to leakage.
However, modern WCB butterfly valves are designed with high - quality seals that are specifically engineered to withstand pressure differentials. For example, some seals are made from materials such as EPDM (Ethylene Propylene Diene Monomer) or Viton, which have excellent resistance to deformation and leakage under vacuum conditions. So, in terms of sealing, with proper seal selection, WCB butterfly valves can potentially be used in vacuum environments.
2. Material Compatibility
WCB is a carbon steel material. In a vacuum, carbon steel can be subject to outgassing, which is the release of gases from the material's surface. Outgassing can contaminate the vacuum environment and affect the performance of other equipment in the system.
To mitigate this issue, special surface treatments can be applied to the WCB butterfly valves. For instance, passivation can be used to create a protective layer on the valve's surface, reducing outgassing. Additionally, the valve's interior can be coated with a low - outgassing material to further minimize the release of gases.
3. Pressure Resistance
In a vacuum environment, the valve must be able to withstand the pressure differential between the inside of the vacuum chamber and the outside atmosphere. WCB butterfly valves are generally designed to handle pressure differentials, but it is essential to ensure that the valve's pressure rating is suitable for the specific vacuum application.
If the pressure differential is too high, it can cause excessive stress on the valve body and the disc, leading to mechanical failure. Therefore, before using a WCB butterfly valve in a vacuum environment, it is crucial to calculate the pressure differential accurately and select a valve with an appropriate pressure rating.
Applications of WCB Butterfly Valves in Vacuum Environments
Despite the challenges, WCB butterfly valves can be used in certain vacuum applications. For example, in low - vacuum systems where the pressure differential is relatively small, WCB butterfly valves with proper seals and surface treatments can provide reliable service. These systems may include some laboratory vacuum setups, small - scale vacuum drying processes, or certain industrial filtration systems operating at low vacuum levels.
Our WCB Butterfly Valves and Vacuum - Ready Features
As a supplier, we offer a range of WCB butterfly valves that are configured to meet the requirements of vacuum applications. Our valves are equipped with high - performance elastomeric seals that are tested for vacuum service. We also apply advanced surface treatments to minimize outgassing, ensuring that our valves can maintain a clean and efficient vacuum environment.
In addition to our standard WCB butterfly valves, we also have other product options that might be suitable for different vacuum applications. Check out our New Arrival Pneumatic Stainless Steel Wafer Butterfly Valve. This pneumatic - operated valve offers precise control and is made of stainless steel, which may have better outgassing properties compared to carbon steel in some high - end vacuum applications.

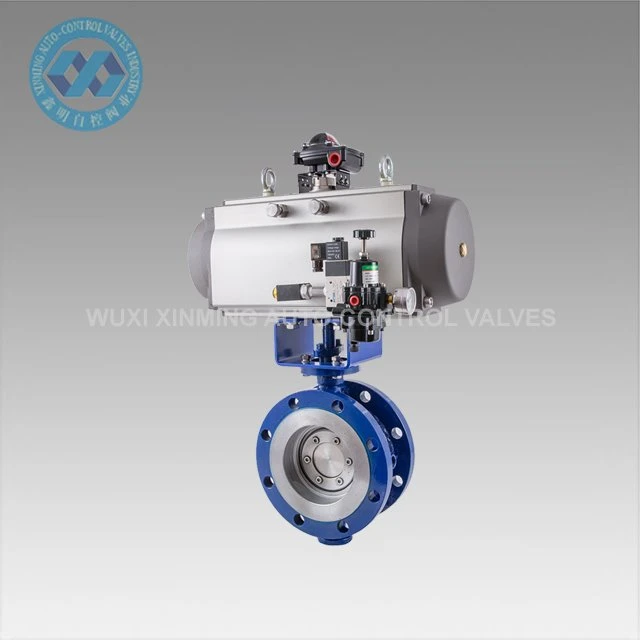

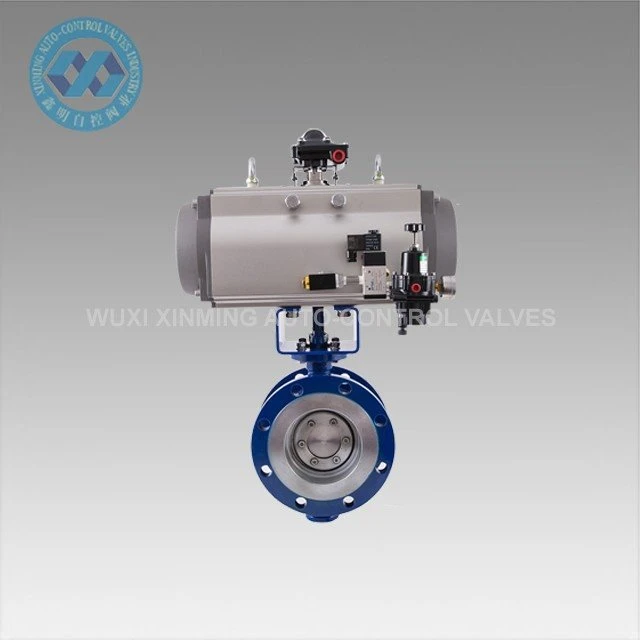

Another option is our Metal - to - metal Butterfly Valve. Metal - to - metal sealing provides excellent durability and can withstand higher pressure differentials in vacuum environments.
If you are looking for a cost - effective and reliable solution for your medium - scale vacuum system, our Factory - direct Pneumatic Double Eccentric Flange Butterfly Valve might be the right choice. This valve is factory - direct, offering great value for money without sacrificing performance.
Contact for Purchase and Consultation
If you are considering using WCB butterfly valves or any of our other valve products in a vacuum environment, I encourage you to contact us for further discussion. Our team of experts can provide detailed technical advice, help you select the most suitable valve for your specific application, and discuss the best pricing and delivery options.
