Hey there! As a supplier of butterfly valves, I've seen firsthand how the disc material can make or break the performance of these essential industrial components. Today, I'm gonna break down the ins and outs of how different disc materials affect a butterfly valve's performance.
Let's start with the basics. A butterfly valve is a type of quarter - turn valve that uses a disc mounted on a rotating shaft to control the flow of fluid through a pipe. The disc is the key part that comes into direct contact with the fluid, so its material is super important.
Metal Discs
One of the most common types of disc materials is metal. Metals like stainless steel, carbon steel, and aluminum are widely used in butterfly valves.
Stainless Steel Discs
Stainless steel is a popular choice because it's corrosion - resistant. In industries where the fluid being transported is corrosive, like in chemical processing plants or water treatment facilities, stainless steel discs are a no - brainer. They can withstand the harsh chemicals and prevent the valve from deteriorating over time. For example, in a water treatment plant, the water might contain chlorine and other chemicals that can eat away at less durable materials. A butterfly valve with a stainless steel disc can handle this environment without a hitch. However, stainless steel discs can be a bit on the pricey side. But considering the long - term savings from reduced maintenance and replacement costs, it's often worth the investment. If you're looking for a reliable valve in a corrosive environment, you might want to check out our High - Performance PVC Butterfly Valve, which also offers good corrosion resistance in certain applications.
Carbon Steel Discs
Carbon steel discs are known for their strength. They can handle high - pressure applications really well. In industries such as oil and gas, where the fluid is flowing under high pressure through pipelines, carbon steel discs are commonly used. These discs can withstand the force of the fluid without deforming. But carbon steel is more prone to corrosion compared to stainless steel. So, in environments where corrosion is a concern, additional protective coatings are usually applied to carbon steel discs.
Aluminum Discs
Aluminum discs are lightweight. This makes them a great choice for applications where weight is a factor, like in some aerospace or marine applications. In a marine vessel, using a butterfly valve with an aluminum disc can help reduce the overall weight of the system, which in turn can improve fuel efficiency. However, aluminum is not as strong as steel, so it's not suitable for high - pressure or high - temperature applications.
Non - Metal Discs
Non - metal disc materials also have their place in the world of butterfly valves.
PVC Discs
PVC (polyvinyl chloride) discs are inexpensive and have good chemical resistance. They are often used in low - pressure applications, such as in residential plumbing systems or small - scale irrigation systems. In a home plumbing system, a PVC disc butterfly valve can control the flow of water without breaking the bank. But PVC has its limitations. It can't handle high temperatures very well, and it's not as strong as metal discs. So, you won't find PVC discs in high - performance industrial applications.
Rubber - Lined Discs
Rubber - lined discs are great for applications where a tight seal is required. The rubber lining helps to create a leak - proof seal when the valve is closed. In food and beverage industries, where hygiene is crucial, rubber - lined discs are commonly used. The rubber lining can also reduce noise and vibration when the fluid is flowing through the valve. However, rubber has a limited temperature range and can degrade over time when exposed to certain chemicals.
How Disc Material Affects Valve Performance
Flow Control
The material of the disc can have a big impact on how well the valve controls the flow of fluid. For example, a smooth - surfaced disc made of a hard material like stainless steel can provide more precise flow control. The fluid can flow around the disc more smoothly, allowing for accurate adjustment of the flow rate. On the other hand, a disc with a rough surface or made of a softer material might cause turbulence in the fluid flow, which can make it harder to control the flow rate precisely.
Sealing Performance
Sealing is another critical aspect of valve performance. A disc made of a material that can deform slightly, like a rubber - lined disc, can create a better seal against the valve seat. This is especially important in applications where preventing leakage is essential, such as in gas pipelines. In contrast, a rigid metal disc might not be able to conform to minor irregularities in the valve seat as well, which could lead to some leakage.
Durability
The durability of the valve is directly related to the disc material. A valve with a disc made of a corrosion - resistant material like stainless steel will last longer in a corrosive environment compared to a valve with a carbon steel disc. Similarly, a disc made of a material that can withstand high temperatures and pressures will be more durable in high - stress applications.
Choosing the Right Disc Material
When choosing the disc material for a butterfly valve, you need to consider several factors. First, think about the nature of the fluid that will be flowing through the valve. Is it corrosive? Is it high - pressure or high - temperature? You also need to consider the application. Is it a residential, commercial, or industrial application? And of course, budget is always a factor. You want to get the best performance for your money.

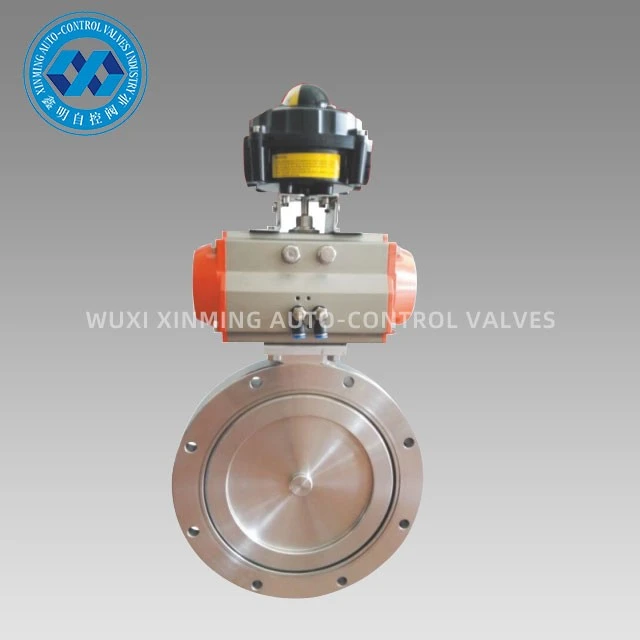

If you're in the market for a butterfly valve and not sure which disc material is right for your needs, don't hesitate to reach out. We're here to help you make the right choice. Whether you need a Vacuum Butterfly Valve for a specific application or are looking for a reliable Bary Butterfly Valve Actuator, we've got you covered.
We've been in the business of supplying high - quality butterfly valves for years, and we have the expertise to guide you through the selection process. Contact us today to start a conversation about your valve requirements. We're eager to work with you to find the perfect solution for your project.
References
- Valve Handbook, Cameron International Corporation
- Industrial Valves: Selection, Specification, and Sizing, Peter L. Spitzer
