As a trusted supplier of Lug Butterfly Valves, I understand the importance of keeping these essential components in optimal working condition. A well - maintained Lug Butterfly Valve not only ensures smooth operations but also extends the lifespan of the entire system. In this blog, I will share some common repair methods for Lug Butterfly Valves.
1. Inspection and Diagnosis
Before starting any repair work, a thorough inspection of the Lug Butterfly Valve is crucial. First, check the exterior for any visible signs of damage, such as cracks, dents, or corrosion. Corrosion can weaken the valve body and lead to leakage over time. If corrosion is detected, it is important to determine the extent of the damage. Minor surface corrosion can often be treated, while severe corrosion may require the replacement of the valve body.
Next, examine the valve disc and the seat. The disc should rotate smoothly within the valve body. Any resistance or binding during rotation may indicate a problem with the shaft or the bearings. The seat should be intact and properly sealed against the disc. Check for any signs of wear, scratches, or deformation on the seat. If the seat is damaged, it can cause leakage and affect the valve's performance.
Inspect the actuator, which is responsible for opening and closing the valve. If it is a manual actuator, check the handle mechanism for any loose or damaged parts. For pneumatic or electric actuators, test the control signals and ensure that the actuator is responding correctly. Any malfunction in the actuator can prevent the valve from operating properly.
2. Repairing Minor Leakages
Minor leakages are one of the most common issues with Lug Butterfly Valves. If the leakage is due to a loose packing around the valve shaft, it can be easily fixed. First, ensure that the valve is closed and the system pressure is relieved. Then, loosen the gland bolts that hold the packing in place and add or replace the packing material. Tighten the gland bolts gradually, taking care not to overtighten as this can cause excessive friction and damage the shaft.
In some cases, a small leak around the valve body can be repaired using a suitable sealant. Clean the area around the leak thoroughly, removing any dirt, rust, or debris. Apply the sealant evenly over the leaky area and allow it to cure according to the manufacturer's instructions. However, this method is only suitable for minor leaks, and for more significant leaks, further investigation and repair may be required.
3. Replacing Worn - Out Parts
Over time, certain parts of the Lug Butterfly Valve will wear out and need to be replaced. The valve disc and the seat are two critical components that often require replacement. If the disc is damaged or severely worn, remove it from the valve body. This usually involves disconnecting the shaft from the disc and carefully lifting the disc out. Install a new disc that is compatible with the valve body and re - attach it to the shaft.
The valve seat can also be replaced. First, remove the old seat from the valve body. This may require special tools depending on the design of the valve. Once the old seat is removed, clean the seat area in the valve body to ensure a proper fit for the new seat. Install the new seat, making sure it is properly aligned and seated correctly.
The bearings that support the valve shaft may also wear out. Replace the bearings by removing the old ones and installing new ones of the correct size and type. Proper lubrication of the new bearings is essential to ensure smooth operation of the valve.
4. Addressing Actuator Issues
If the actuator of the Lug Butterfly Valve is not working properly, it can cause significant problems. For pneumatic actuators, check the air supply for any blockages or pressure issues. Ensure that the air lines are clean and free of debris. If the actuator is not moving as it should, it may be due to a faulty solenoid valve. Replace the solenoid valve if necessary.
In the case of electric actuators, check the electrical connections for any loose or damaged wires. Test the motor to ensure that it is functioning correctly. If the motor is not running, it may need to be repaired or replaced. Also, check the control system to make sure that the correct signals are being sent to the actuator.
5. Re - commissioning and Testing
After completing the repair work, it is essential to re - commission and test the Lug Butterfly Valve. First, make sure that all parts are properly installed and tightened. Then, slowly open and close the valve several times to check for smooth operation. Check for any signs of leakage around the valve body, shaft, and connections.
Perform a pressure test to ensure that the valve can withstand the operating pressure without any leaks. Gradually increase the pressure to the normal operating level and monitor the valve for at least a few minutes. If any leaks or malfunctions are detected during the test, further investigation and repair may be required.

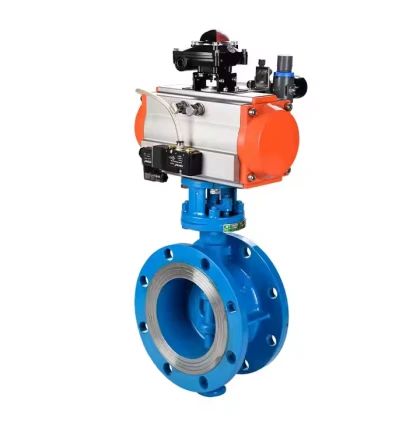

As a Lug Butterfly Valve supplier, we also offer a wide range of related products. If you are interested in other types of butterfly valves, such as the Sanitary Butterfly Valve, Pneumatic Sanitary Butterfly Valve With Low Leakage Rate, or Pneumatic Dust Butterfly Valve, please feel free to contact us. We are committed to providing high - quality products and professional repair and maintenance services. If you have any needs regarding the purchase or repair of Lug Butterfly Valves, don't hesitate to reach out for a purchase negotiation. Together, we can find the best solutions for your valve - related requirements.
