In the realm of industrial automation and fluid control, pneumatic actuator systems play a crucial role. These systems are widely used in various industries, including manufacturing, chemical processing, and oil and gas. One of the key components in a pneumatic actuator system is the solenoid valve. In this blog, we will explore the function of a solenoid valve in a pneumatic actuator system, and also introduce some of our high - quality pneumatic actuators as a pneumatic actuator supplier.
Basic Understanding of Pneumatic Actuator Systems
Pneumatic actuator systems use compressed air to generate motion. They are known for their reliability, simplicity, and cost - effectiveness. A typical pneumatic actuator system consists of a pneumatic actuator, a control valve, and a source of compressed air. The actuator is responsible for converting the energy from compressed air into mechanical motion, which can be used to open or close a valve, move a piston, or perform other mechanical tasks.
What is a Solenoid Valve?
A solenoid valve is an electromechanical device that controls the flow of fluid (in this case, compressed air) by using an electromagnetic coil. When an electrical current is applied to the coil, it creates a magnetic field that moves a plunger or a spool inside the valve. This movement either opens or closes the valve, allowing or blocking the flow of compressed air.
Functions of a Solenoid Valve in a Pneumatic Actuator System
1. Flow Control
The primary function of a solenoid valve in a pneumatic actuator system is to control the flow of compressed air. By opening or closing the valve, it can direct the air to different parts of the actuator. For example, in a double - acting pneumatic actuator, the solenoid valve can be used to supply air to one side of the piston while exhausting the air from the other side. This creates a differential pressure across the piston, causing it to move in the desired direction.
2. Directional Control
Solenoid valves can also be used to control the direction of motion of the pneumatic actuator. In a single - acting actuator, the solenoid valve can be used to supply air to the actuator to extend the piston and then exhaust the air to allow the piston to retract under the influence of a spring. In a double - acting actuator, the solenoid valve can switch the direction of air flow to move the piston back and forth.
3. On - Off Control
Solenoid valves provide an efficient way to turn the pneumatic actuator on and off. When the electrical signal is applied to the solenoid valve, it opens, allowing compressed air to flow into the actuator and start the operation. When the signal is removed, the valve closes, stopping the flow of air and halting the actuator's movement.
4. Speed Control
Although not as precise as some other methods, solenoid valves can have an impact on the speed of the pneumatic actuator. By controlling the rate at which air enters or exits the actuator, the solenoid valve can influence the speed of the actuator's movement. For example, a smaller orifice in the solenoid valve will restrict the air flow, resulting in a slower movement of the actuator.
Our Pneumatic Actuators
As a pneumatic actuator supplier, we offer a wide range of high - quality pneumatic actuators to meet the diverse needs of our customers.
One of our popular products is the Manufacturer Single Acting(SR) Scotch Yoke Pneumatic Actuator. This actuator features a single - acting design with a scotch yoke mechanism, which provides high torque output and reliable performance. It is suitable for applications where a simple and cost - effective solution is required.
We also have the Suitable For Large Valve High Response Speed Fork Actuator. This actuator is specifically designed for large valves and offers a high response speed. It can quickly open or close large valves, ensuring efficient operation in industrial processes.

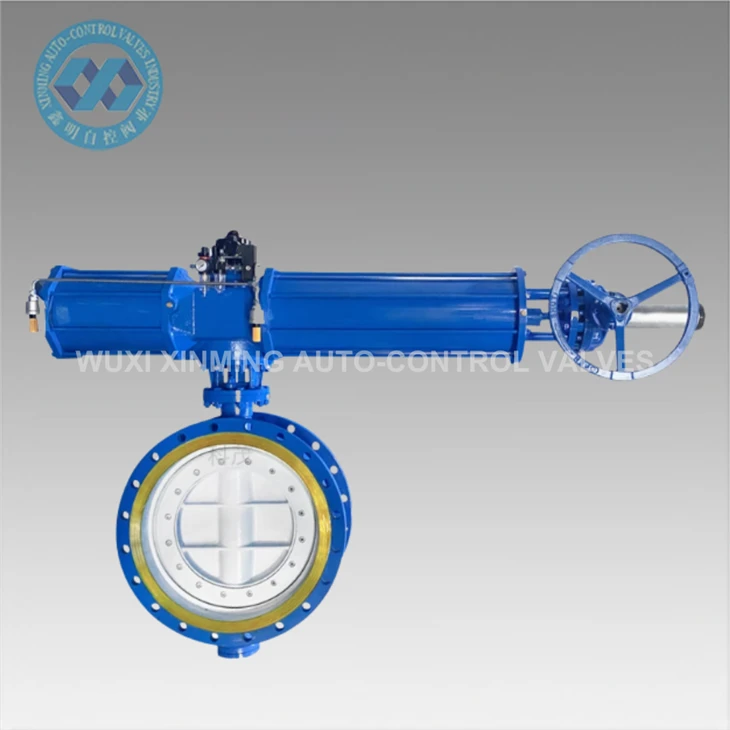

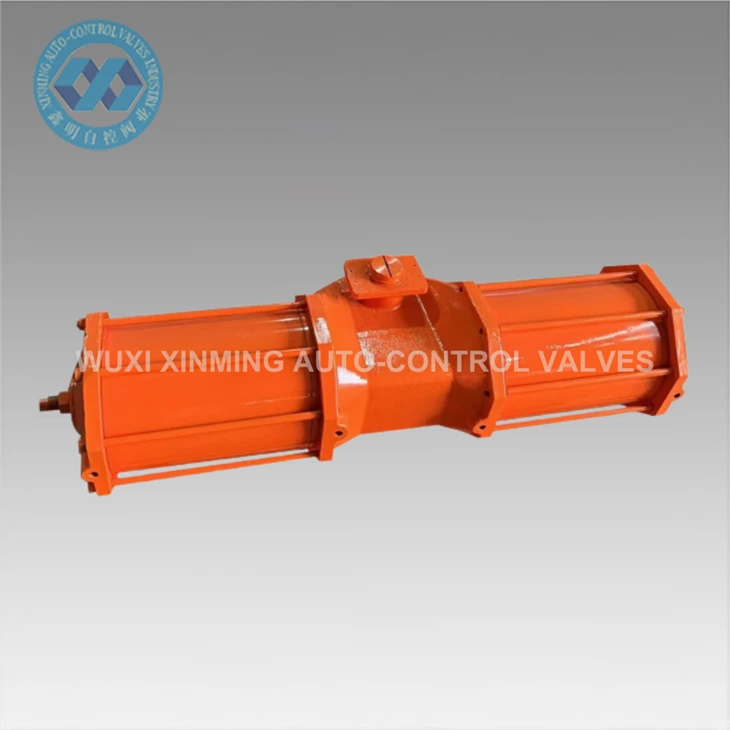

Another product is the Manufacturers Direct Sales Large Torque Large Valve Fork Type Pneumatic Actuator. This actuator provides a large torque output, making it ideal for applications where large valves need to be operated. With direct sales from the manufacturer, customers can get high - quality products at competitive prices.
Importance of Choosing the Right Solenoid Valve for Pneumatic Actuators
Selecting the appropriate solenoid valve for a pneumatic actuator system is crucial. The valve's size, flow rate, and response time should match the requirements of the actuator. A valve that is too small may not be able to supply enough air to the actuator, resulting in slow or incomplete movement. On the other hand, a valve that is too large may cause excessive air consumption and higher operating costs.
Conclusion
In conclusion, the solenoid valve is an essential component in a pneumatic actuator system. It plays a vital role in controlling the flow, direction, and speed of the actuator's movement. As a pneumatic actuator supplier, we understand the importance of these components and offer a range of high - quality products to meet the needs of our customers.
If you are in the market for pneumatic actuators or need more information about solenoid valves in pneumatic actuator systems, we invite you to contact us for procurement and further discussion. Our team of experts is ready to assist you in finding the right solutions for your specific applications.
